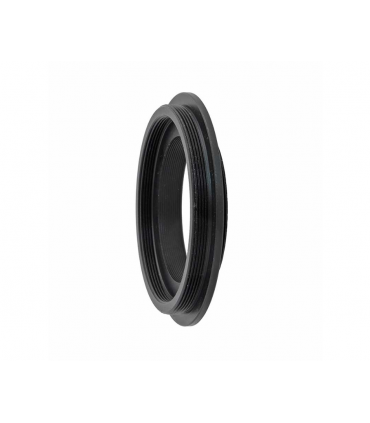

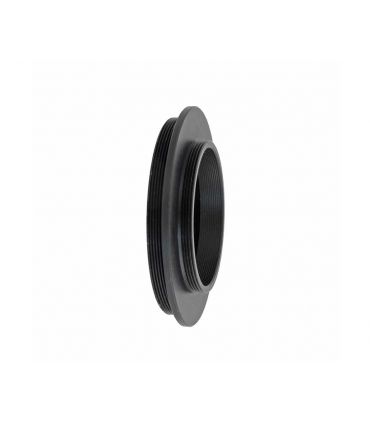

TS-Optics adapter from M54x0.75 to T2 - Focal adapter T2 for M54x0.75

The adapter fits filter wheels, CCD cameras and focusers with internal thread M54x0.75, offers a short adaptation to T2 and allows the use of 2" filters.

♦ Very short: the adapter only needs a 2 mm optical path

♦ On the camera side there is a photographic thread T2 (M42x0.75) - external thread

♦ On the telescope side, the adapter has a photo thread M54x0.75 (external thread) and a filter thread M48x0.75 2" as internal thread

♦ Allows the connection of 2" filters or the screwed adaptation of correctors such as the TSFLAT2

♦ T2 focal adapter for all focusers with internal thread M54x0.75 on the camera side

♦ T2 adapter for all filter wheels and CCD cameras with M54x0.75 female thread

Entrega entre 8 y 10 días laborables
Entrega entre 8 y 10 días laborables

TS-Optics adapter from M54x0.75 to T2 - focal adapter

The TSM5475-T2 adapter offers a very short adaptation to the T2 photographic thread for all adapters, cameras and focusers with an internal M54x0.75 thread.

Among other things, the adapter fits:

♦ ATIK EFW Filter Wheels

♦ 2" Herschel Lacerta Prism

♦ Starlight Xpress Filter Wheels

♦ Trutec filter wheels with the appropriate adapter

♦ Focusers with female thread M54x0.75, as used with apos like TSAPO65Q, TSAPO60, INED70, TSAPO704...

♦ The adapter is not compatible with Skywatcher focusers, which have an internal thread M54x1. For this we offer the adapter TSM54-T2.

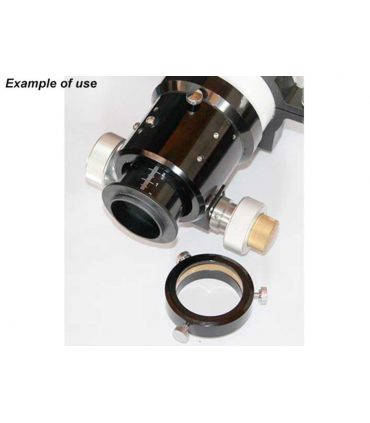

Two exciting application areas for the adapter:

Thanks to the 2" filter thread (M48x0.75 female thread) on the telescope side, the adapter has two exciting possible uses for astrophotography:

♦ Can use 2" mounted filters without changing distances, without additional adaptation.

♦ In telescopes without a corrector, the corrector can be adapted to the focuser. Then use the internal thread M48 as the adapter thread for the offset. This gives you a completely bolt-on fit with no risk of tilting.

Telescope side thread: M54x0.75 male (length 5mm) and M48x0.75 female (length 4,5mm)
Camera side thread: T2 - m42x0,75 male thread (length 4mm)
AdapterŽs optical length: 2 mm (without male threads)
AdapterŽs mechanical length: 11 mm
Free aperture: 38 mm, anti reflex thread

What goes in the box:

♦ TS Optics Adapter
