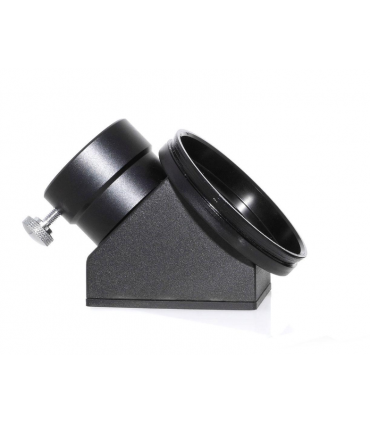

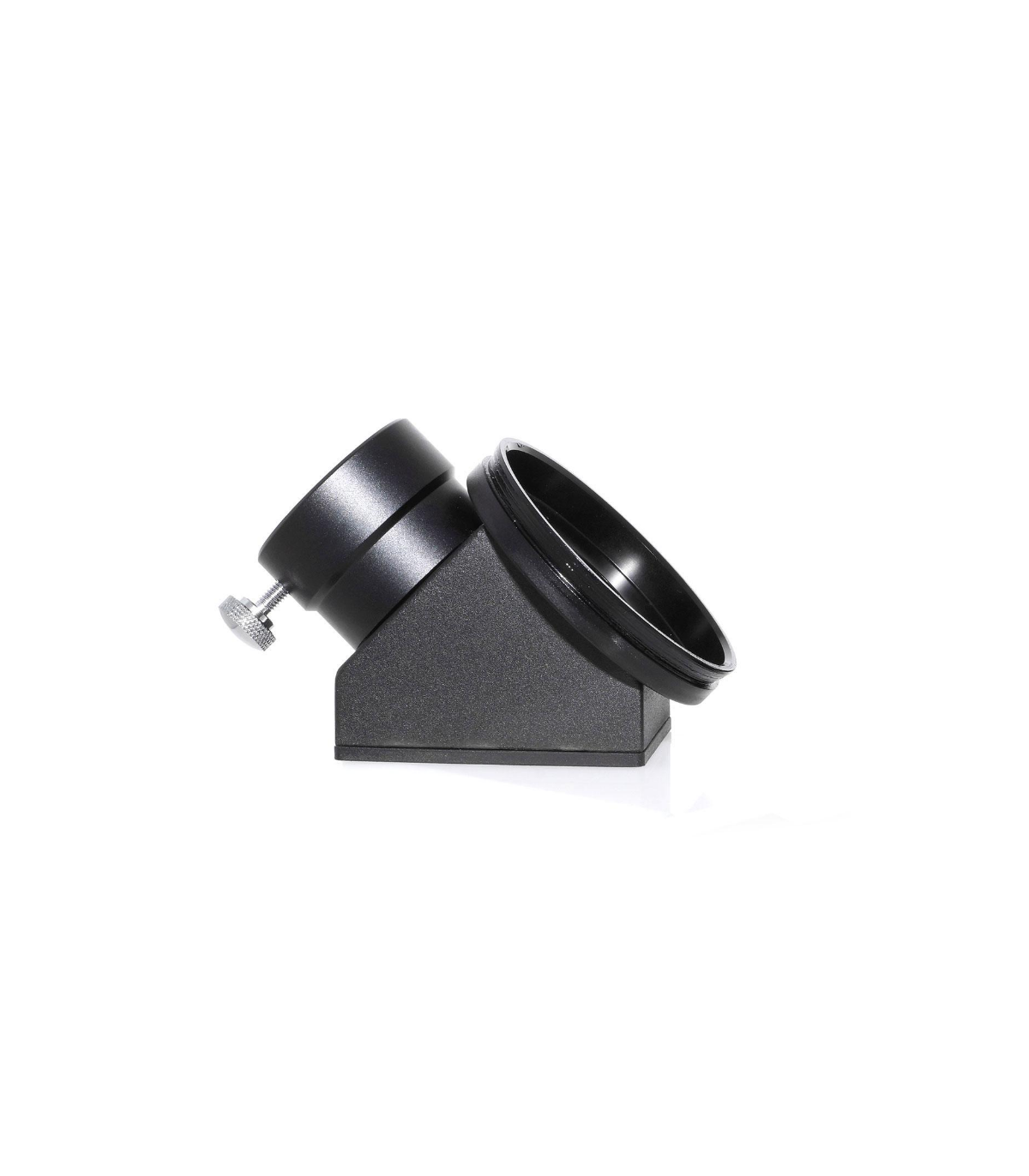

TS-Optics 1.25" Short Star Diagonal for Imaging Star Apos

Short 1.25" star diagonal for viewing with Imaging Star Apo telescopes

Telescope Service Imaging Star Apos are optimized for photography. With some of these telescopes, the distance from the camera connection to the focus is too short to use conventional 1.25" or 2" star diagonals. However, the TSIS-ZS1 offers the possibility of observation thanks to its consistent short design. The star diagonal itself only needs an optical path of about 60 mm. You can easily focus with all 1.25" eyepieces.

The adaptation to the Imaging Star Apo:

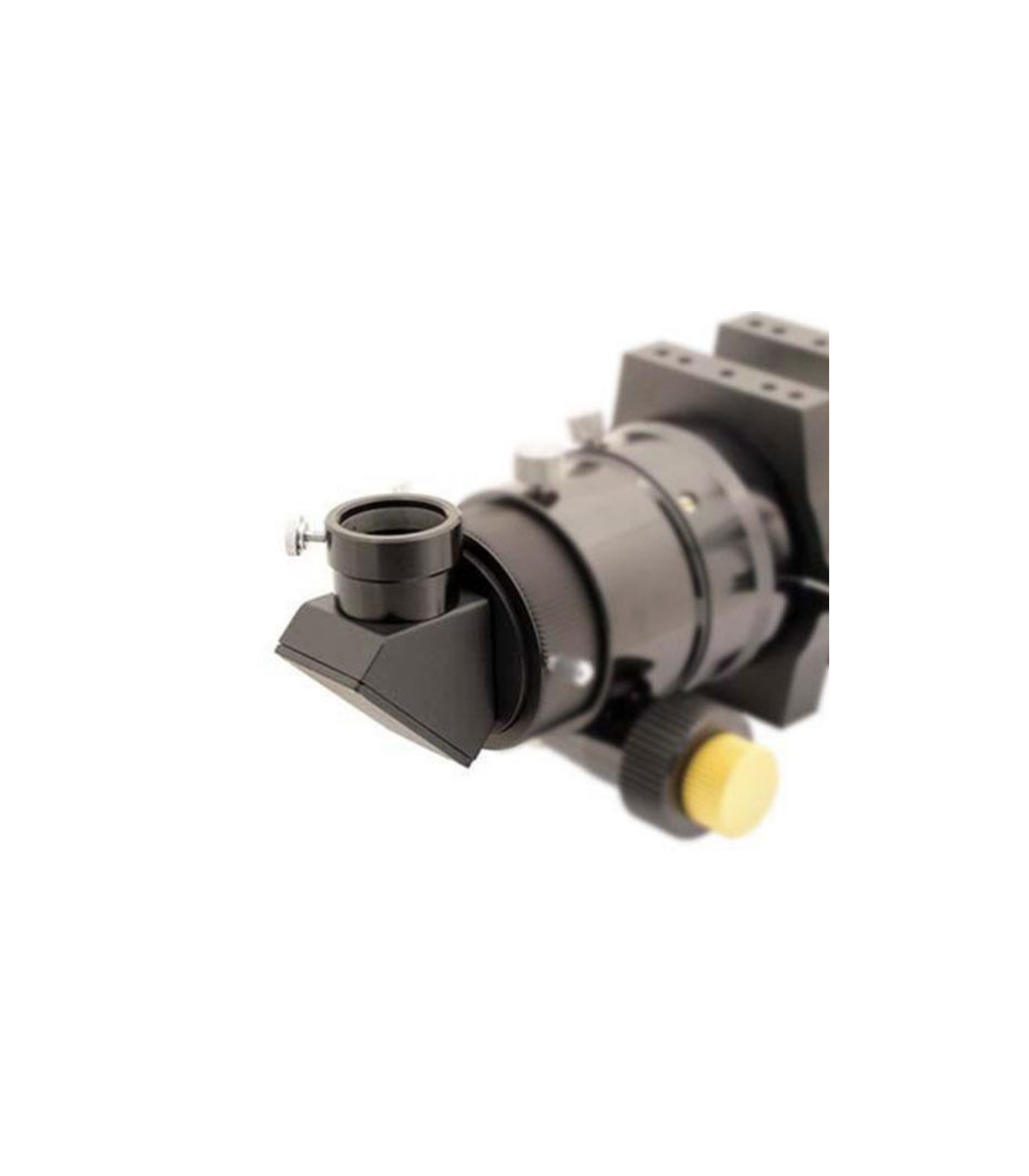

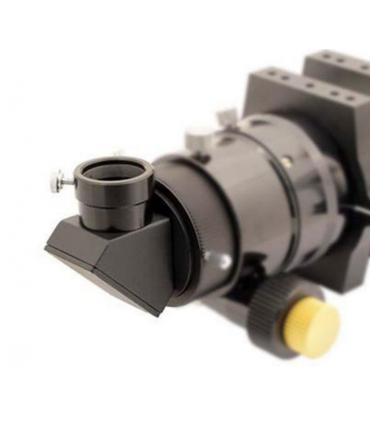

♦ With Imaging Star apos TSAPO102Q and TSAPO130Q, the diagonal star simply attaches in place of the M48 camera adapter.

♦ If you want to use the diagonal star on the Imaging Star Apo TSAPO81Q, you also need the transition adapter TSIS-M48. Again, you need to remove the 65mm thread adapter.

Especificaciones:
