Asterion primary mirror fan for Skywatcher 10" Newtons and Dobsons

Asterion Primary Mirror Fan for Sky-Watcher Newtonian and Dobsonian Telescopes

When the ambient temperature drops, thermal effects occur in the telescope that significantly reduce image quality. This is particularly visible when the telescope is moved outside from a warmer environment (car or apartment). The star is not round, but distorted by the different temperatures of the air in the tube. In addition, the primary mirror also needs time to acquire its shape and obtain its optimum curve due to thermal expansion, and thus also to display the best possible image.

This effect can be visible for more than an hour, depending on the main mirror and the temperature difference. High-resolution observations or astrophotography are only possible to a limited extent or not possible during this time.

The solution is the Asterion primary mirror fan:

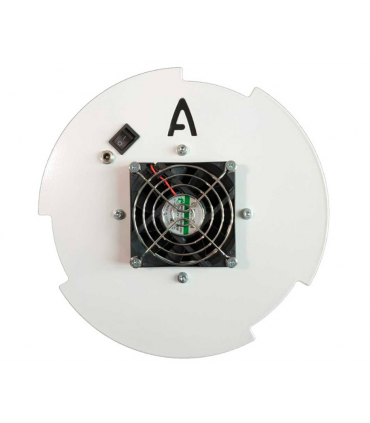

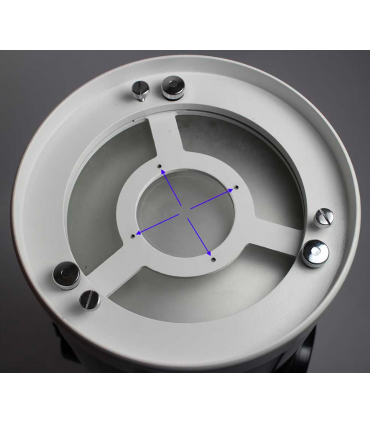

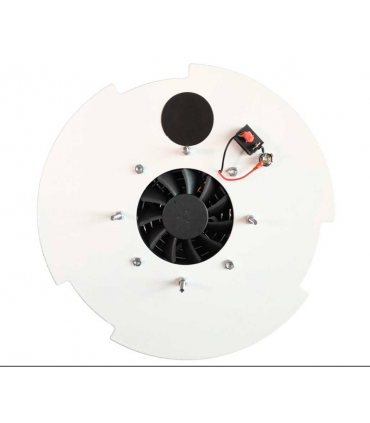

The cooler is connected to the primary mirror cell. The fan sucks in hot air from around the main mirror and blows it back. This solves several problems at once.

♦ The primary mirror is actively cooled, which significantly speeds up the cooling process.

♦ Hot air is prevented from rising, so the image is better even during the cooling process.

♦ Moist air near the ground is kept away from the primary mirror, thus preventing condensation on the primary mirror.

♦ The hot air inside the telescope is removed from the telescope, which also improves the image.
