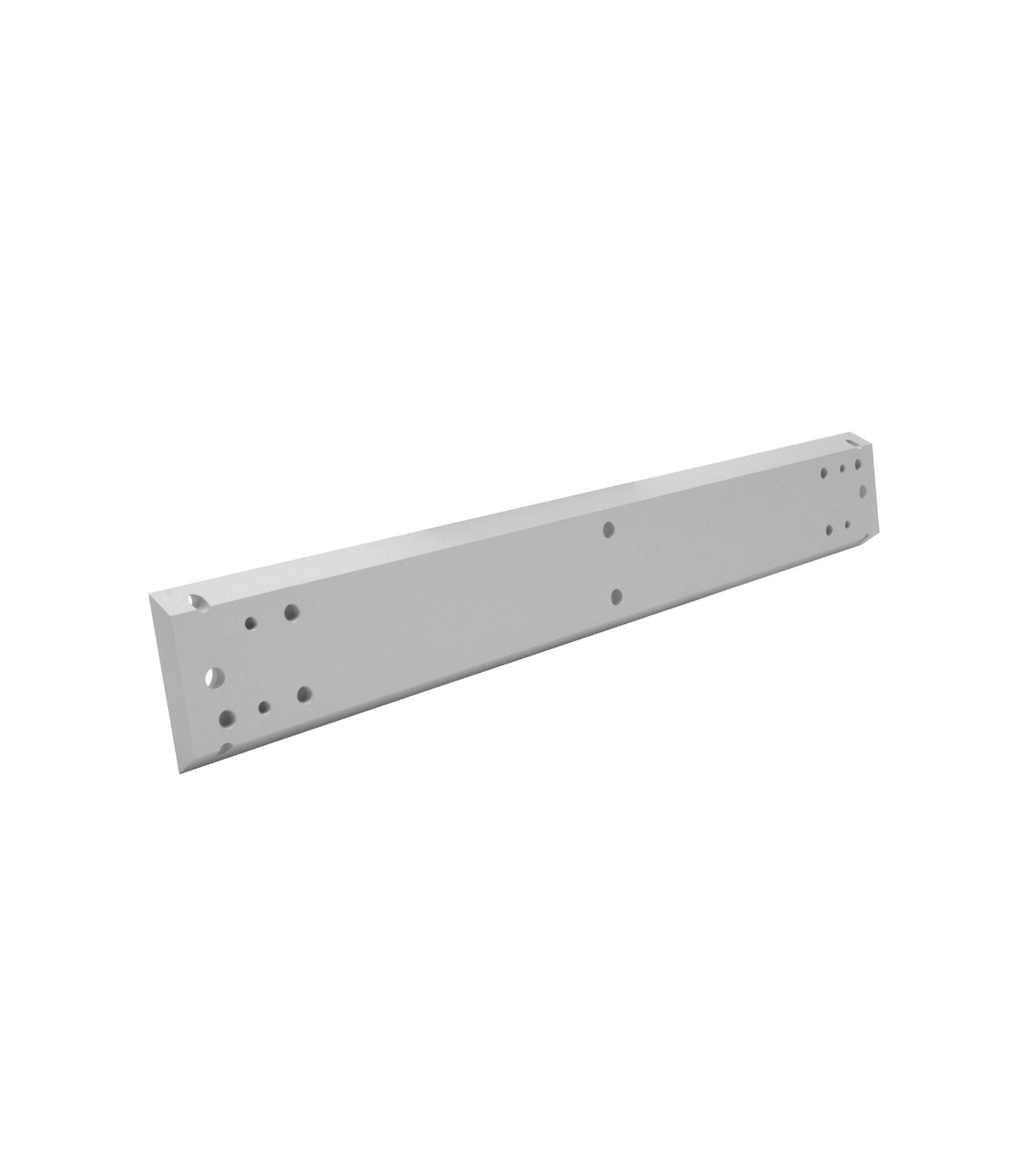

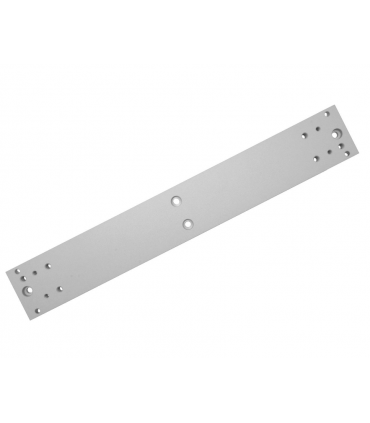

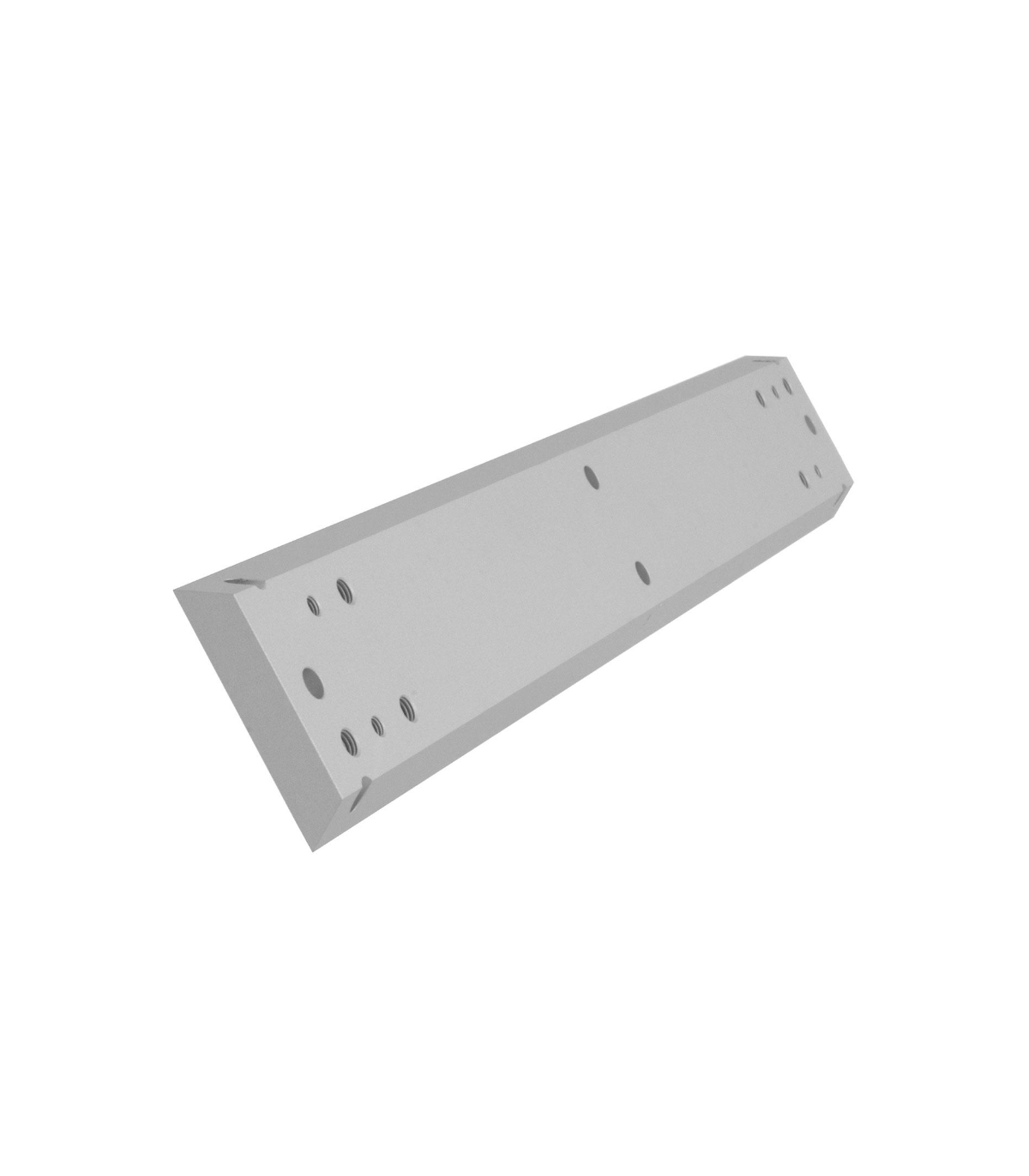

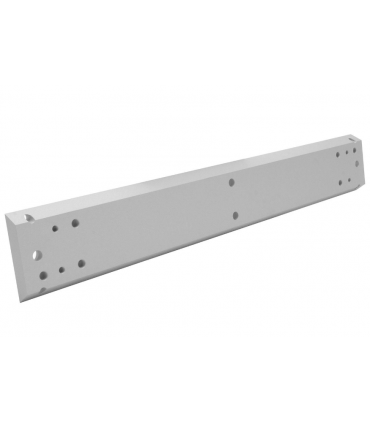

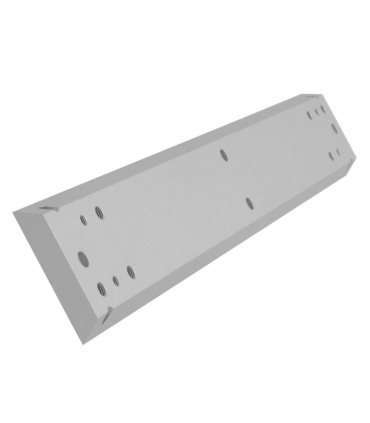

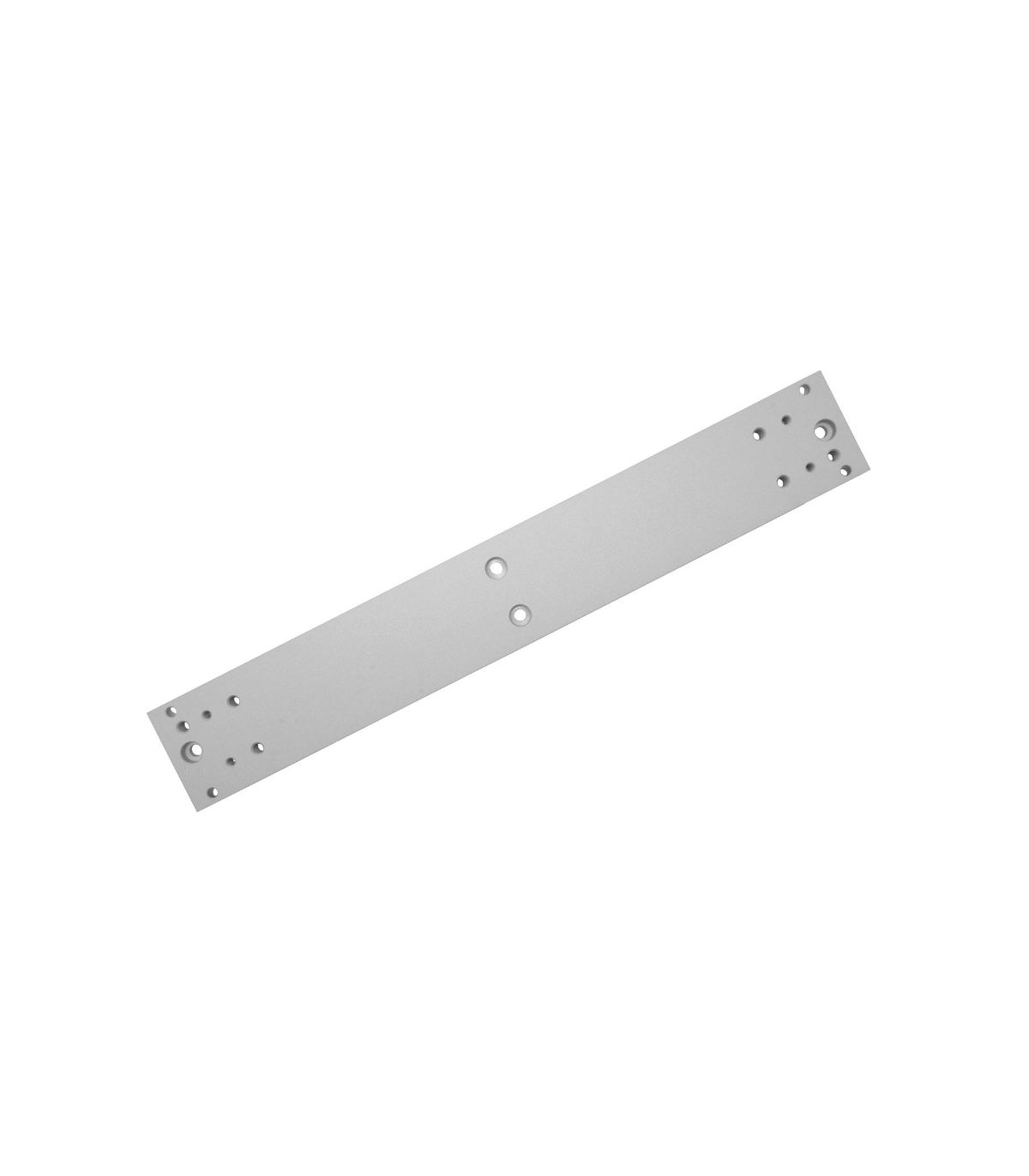

TS-Optics Losmandy Level dovetail bar - length 500 mm
Extra long and very strong dovetail bar for Losmandy style quick coupler mounts for large telescopes and suitable for building a double mount.
♦ Length: 500mm
♦ Solid construction: thickness 15 mm - no vibrations
♦ Suitable for, among other things: Mounts such as Skywatcher EQ6, EQ8 or Celestron CGX, CGEM...
♦ Many auxiliary holes, taps and countersunk holes for attaching pipe clamps or prism clamps
€135.00
(VAT incl.)
Reference:
L-up500
TS-Optics L-UP500 Losmandy Style Dovetail Rod for Heavy Scopes
This dovetail bar offers a secure hold of your telescope on the mount. We recommend this dovetail bar especially for large telescopes such as Newtonians with an aperture of 12" or more or refractors with an aperture of 6" or more.
With plenty of auxiliary holes and threads, you can attach dovetail clamps to the side to build a massive dual accessory for astrophotography. The large space also allows the use of large diameter telescopes. Matching dovetail clamps can be found in the accessories section.
Among other things, the splint fits:
♦ All supports with Losmandy quick coupling
♦ Losmandy G11, GM8, Titan...
♦ Celestron CGEM, CGX...
♦ Skywatcher EQ6, EQ8...
♦ iOptron CEM60, CEM70

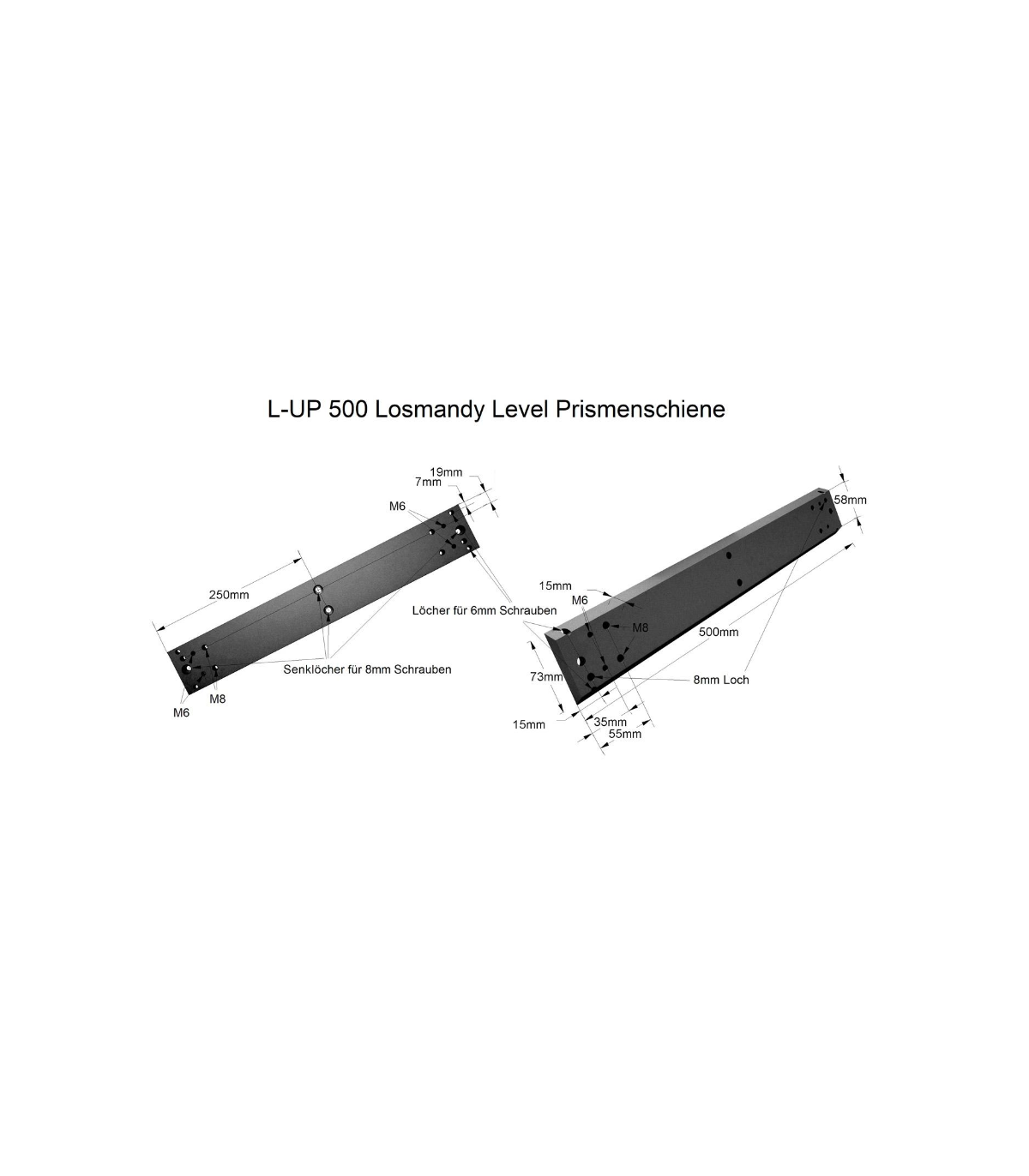

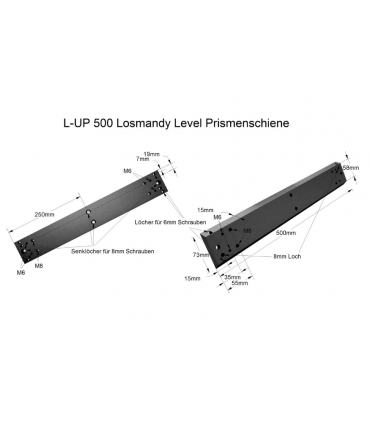

The rail offers many holes and threads:
♦ 2 holes for 6mm to 8mm screws at the end of the rail - hole spacing 47cm
♦ 2 holes for 6mm-8mm screws in the middle of the rail
♦ 2x M6 internal threads on each side with 35mm clearance for dovetail clamps (double clamp construction)
♦ 2x M8 internal threads on each side with 35mm clearance for dovetail clamps (double clamp construction)
Especificaciones:
| Length: | 500 mm |
| Thickness: | 15 mm |
| Width base: | 74 mm |
| Width support area: | 52.2 mm |
| Weight: | 1310 gramms |
