Versatile dovetail bar for attaching the telescope to mounts with Losmandy-style quick-release couplings and building a dual attachment
♦ Rail length: 342mm
♦ Maximum rigidity thanks to profile construction
♦ Elongated holes, internal threads and countersunk screw holes allow flexible attachment of telescopes, telephoto lenses and spotting scopes

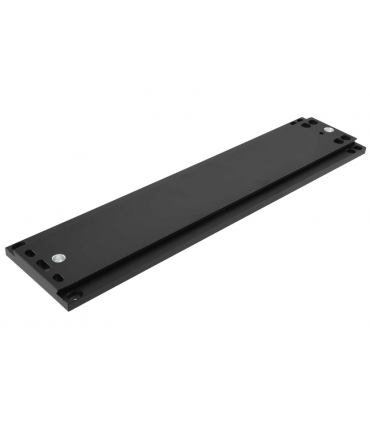

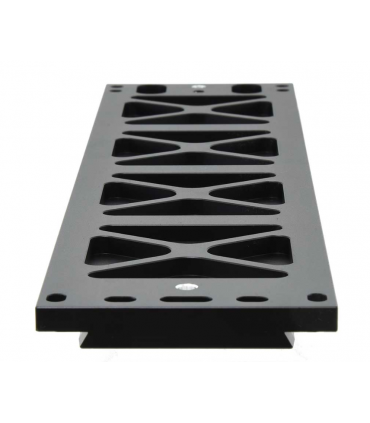

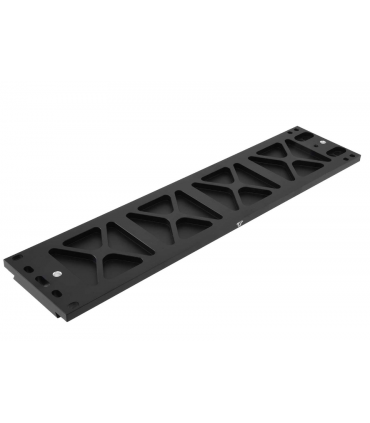

TS-Optics Losmandy Style Dovetail Rod - Long
This TS dovetail bar allows you to securely attach your telescope, spotting scope, etc. to mounts with Losmandy style quick couplers and Losmandy style dovetail clamps.
The rail is ideal for self-construction, where you can drill your own holes for the desired pipe clamps.

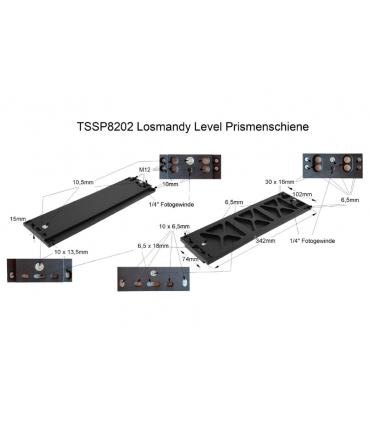

The following through holes and threads are available:
♦ one 1/4" internal thread each - 24mm from edge
♦ 5 slots on one side
♦ 8 socket head screw holes on the other side
♦ The rail does not have countersunk holes for countersunk screws or hexagon socket screws, you would have to do it yourself (do it yourself)
Especificaciones:
Length: | 342 mm |
Oblong holes and countersunk holes: | 13x |
Internal threads: | Two 1/4" internal threads |
Thickness: | 14 mm |
Width at the top: | 111.5 mm |
