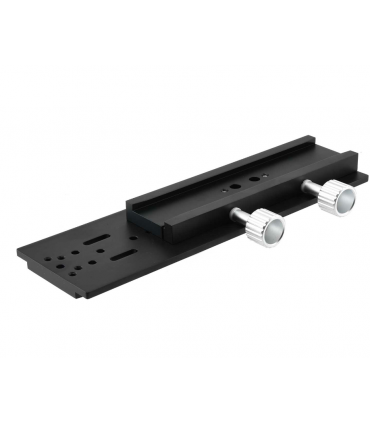

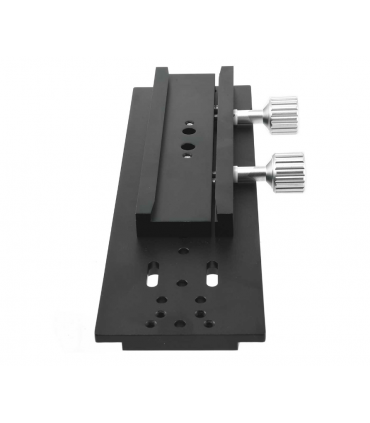

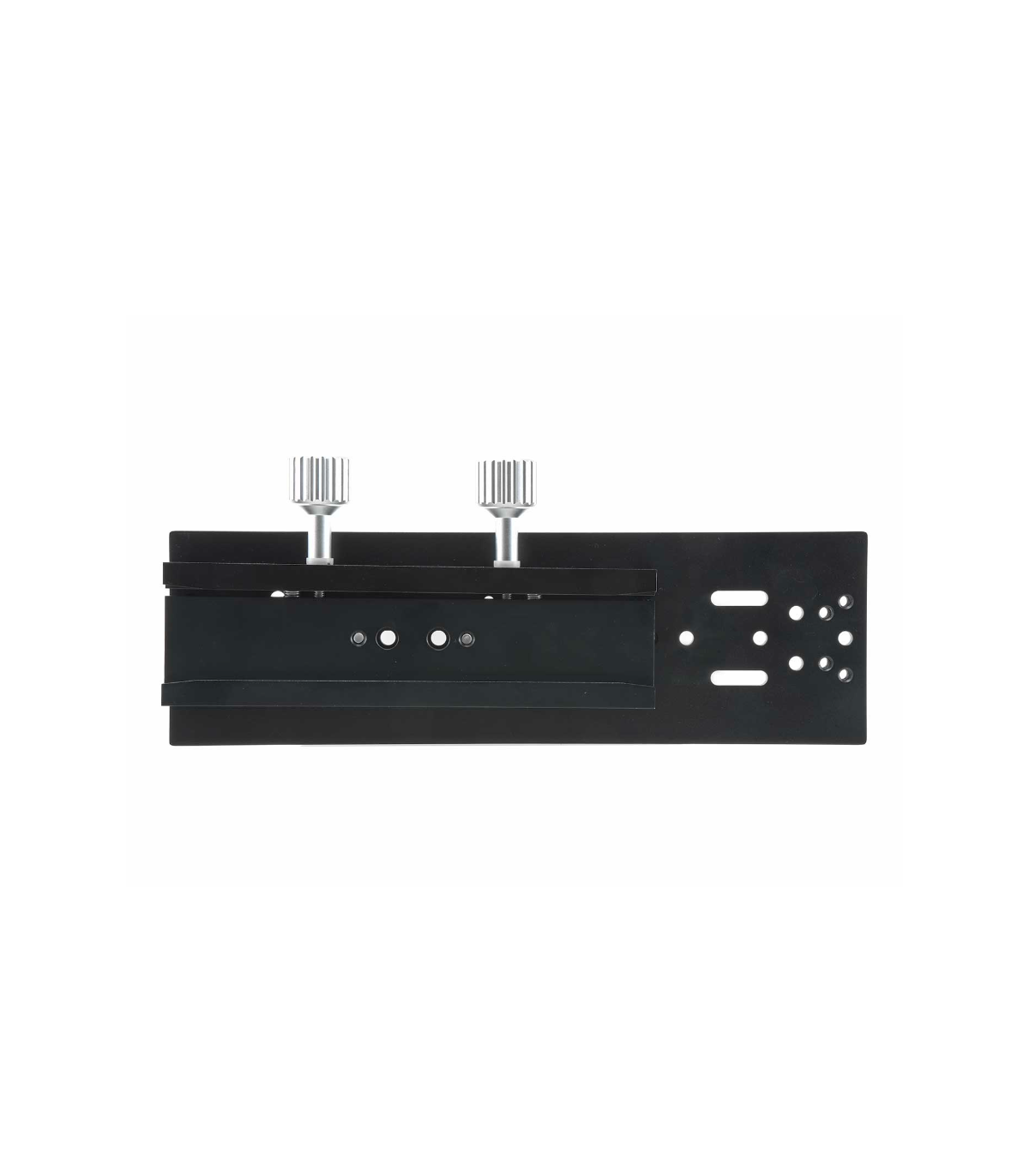

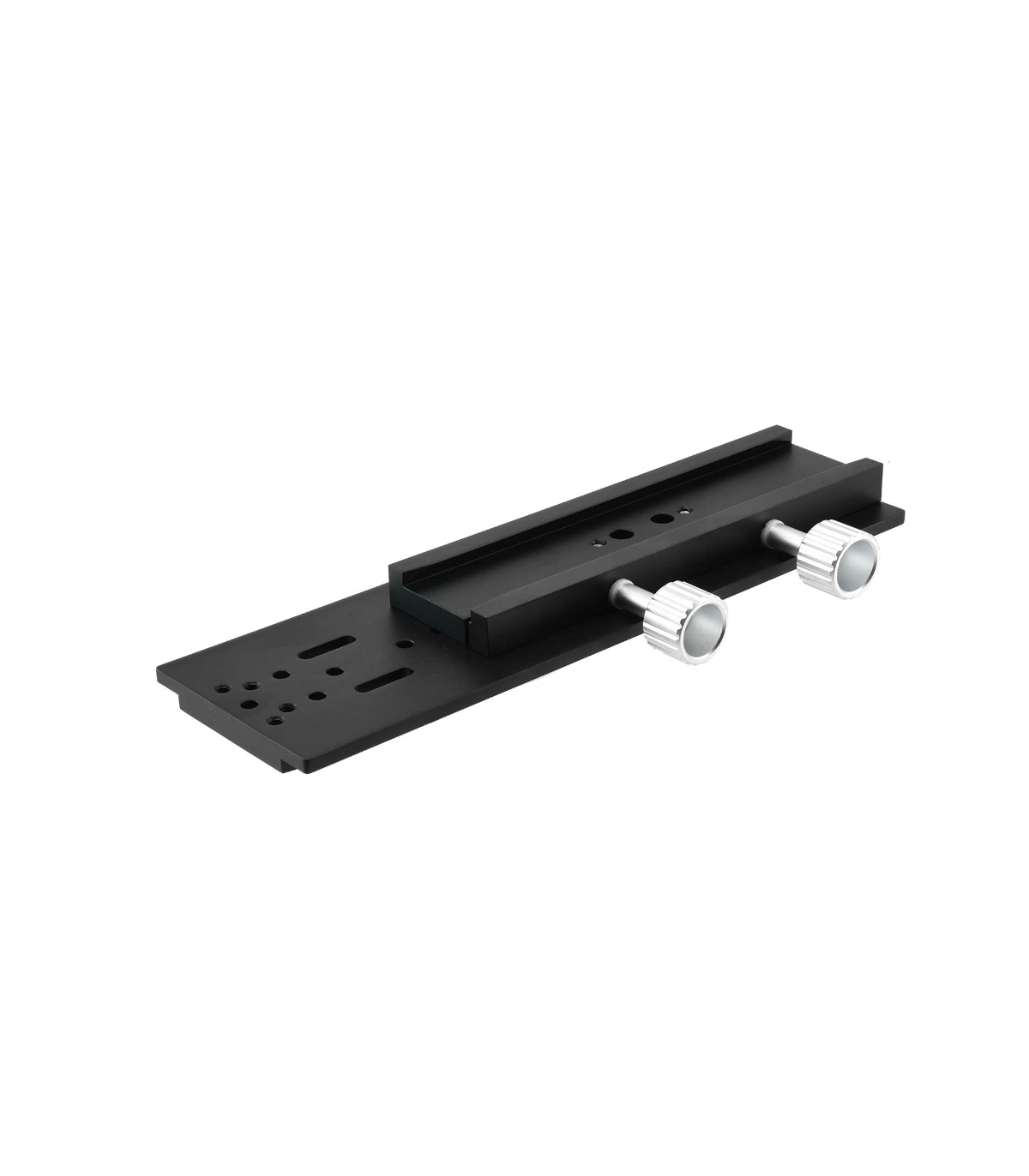

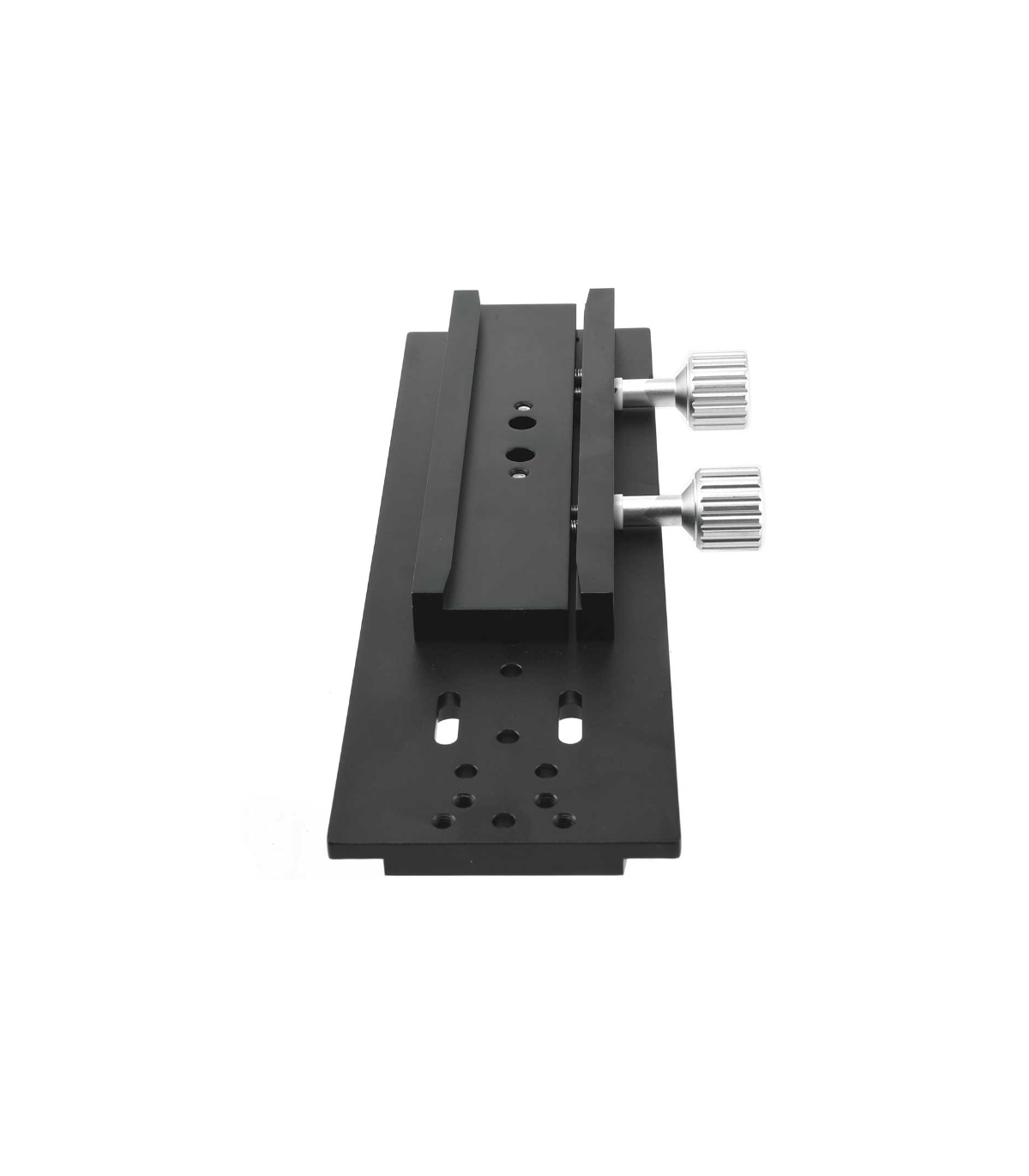

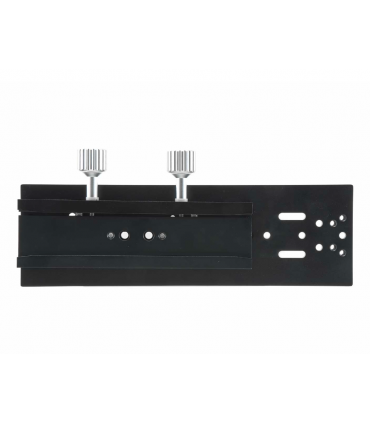

TS-Optics adapter prism clamp from Losmandy level to Vixen level
This adapter allows you to mount instruments with GP or EQ5 dovetail bars on stands with 3" Losmandy clamps.
♦ Fits Losmandy style dovetail clamps and quick couplers
♦ Accepts standard Vixen and EQ5 rails
♦ Clamping surface for optimum clamping without pinch marks
♦ Two springs allow the dovetail clamp to be easily opened without tilting
♦ Large clamping screws, can also be operated with gloves
♦ CNC machined - solid metal construction
€139.00
(VAT incl.)
Reference:
LOVI
Losmandy Level to Vixen Level TS Adapter Prism Clamp
With this handy adapter rail, you can mount any telescope with a Vixen or EQ5 style prism rail directly to mounts with the larger 3" Losmandy clamp. Among other things, the prism adapter clamp fits:
♦ Skywatcher: EQ6 EQ8 mounts
♦ Celestron: CGEM, CGX... mounts
♦ 10 micron mounts
♦ iOptron CEM 120
♦ Losmandy GM8 and G11
♦ All other supports with Losmandy Level clamps
♦ all Losmandy style dovetail clamps
The large clamping screws are easy to operate even when wearing gloves.
Other features of the adapter rail:
♦ Internal springs ensure that the collet jaw opens independently
♦ CNC machining
♦ The top can be moved after loosening two socket head screws to properly balance the telescope.
Especificaciones:
| Connection to mount: | Dovetail bar, Losmandy style |
| Dimensions of the Losmandy dovetail: | 330 mm x 102 mm x 12.5 mm |
| Connection for the telescope: | Saddle plate, Vixen GP style |
| Dimensions of the Vixen saddle plate: | 229 mm x 69 mm x 19 mm |
| Clamping mechanism: | Spring-loaded split-clamp design |
| Connection of the two parts: | Two socket head screws |
| Material: | Aluminium alloy |
