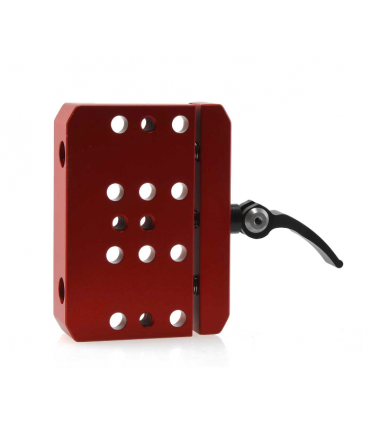

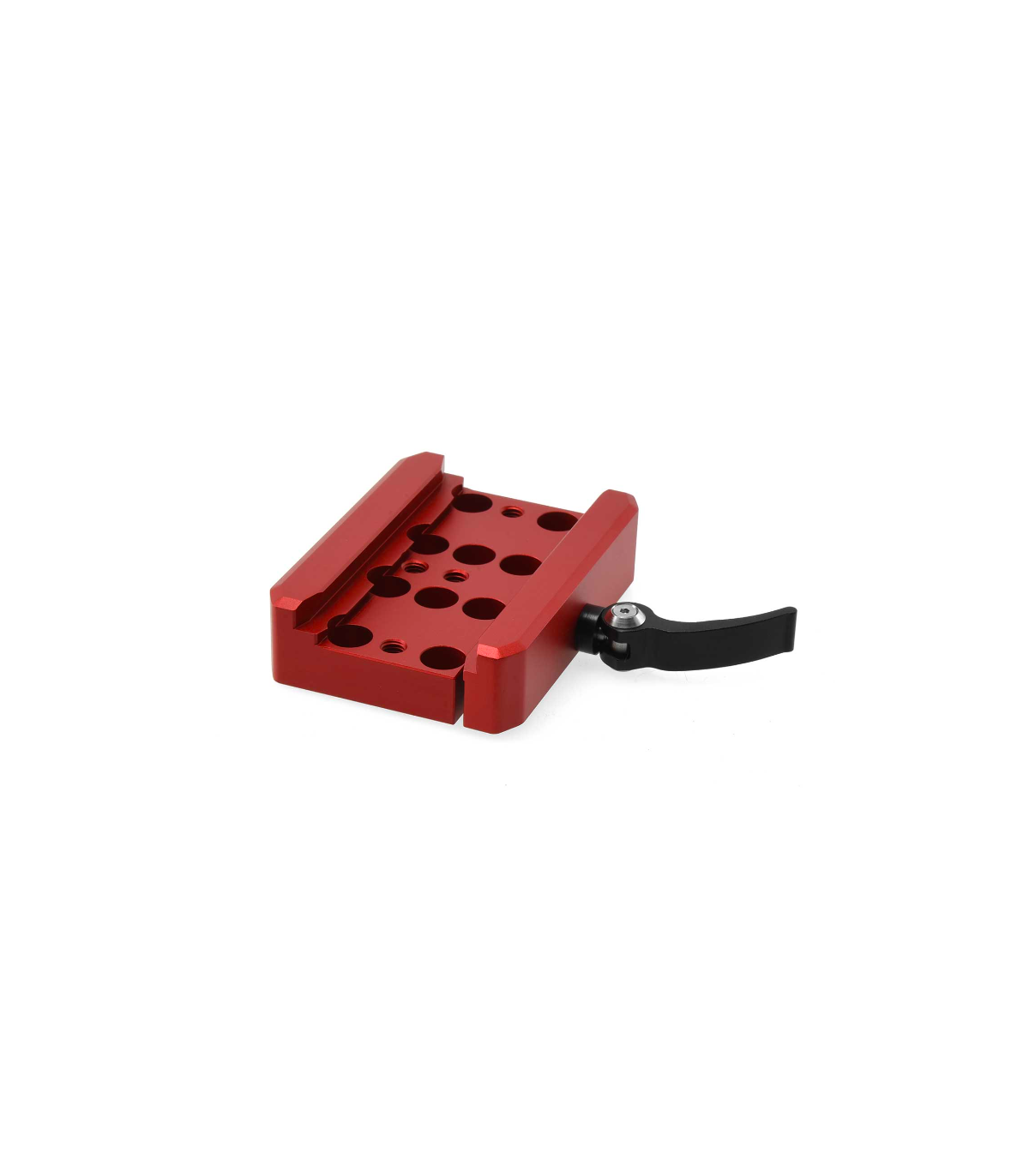

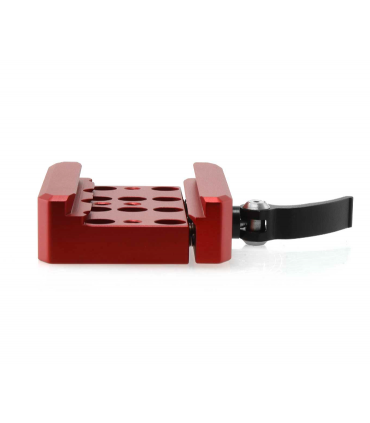

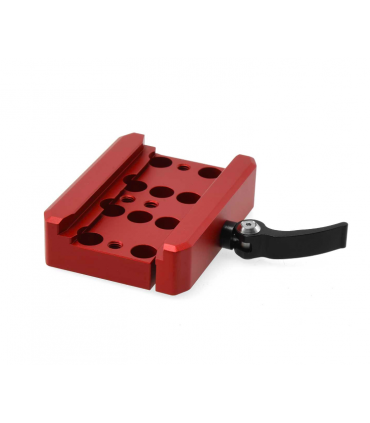

TS-Optics Dovetail Clamp for Vixen - and Arca Swiss - Level Rails
With this dovetail clamp you can clamp Vixen style dovetail bars and Arca Swiss style quick release plates
♦ Clamp length is 90mm
♦ Quick and secure hold with adjustable quick release
♦ Fits Vixen or EQ5 style dovetail bars
♦ Suitable for Arca Swiss Level rails and removable plates
♦ Flat support surface with auxiliary threads such as 1/4" photo tripod thread and 1/4" and M6 screw holes
♦ Attention: The supplied clamps are not red, but black anodized!
€79.00
(VAT incl.)
Reference:
TSPKArca
TS-Optics Vixen/Arca-Swiss-Level Dovetail Clamp
Attach your Arca-Swiss professional level quick release plate to your mount with this dovetail clamp. Or switch between your telescope with the Vixen-style dovetail bar and your camera with the Arca Swiss-style dovetail bar in just a few seconds. This clamp is suitable for both systems.
The clamp is especially suitable for longer rails. You can balance the camera, spyglass, or telescope by moving them.
In addition to auxiliary holes for fixing to flat surfaces, the clamp also has an internal 1/4" photo tripod thread. This means that the clamp fits both ball heads and inclined heads and allows your astronomical and photographic equipment to be attach quickly.
Note: Unlike the pictures, the clamp is not red anodized, but black!
Especificaciones:
| Suitable for: | Vixen / EQ5 and Arca Swiss style dovetails |
| Length: | 90 mm |
| 1/4" thread: | bore spacing 38 mm lengthwise, 11 mm crosswise |
| Countersunk holes for M6: | The middle six are each 12 mm from the axis of symmetry. |
| Outer holes for M6: | On the clamp side 12 mm crosswise and 38 mm lengthwise, other side 11 mm crosswise and 38 mm lengthwise |
| Color: | Black! |
