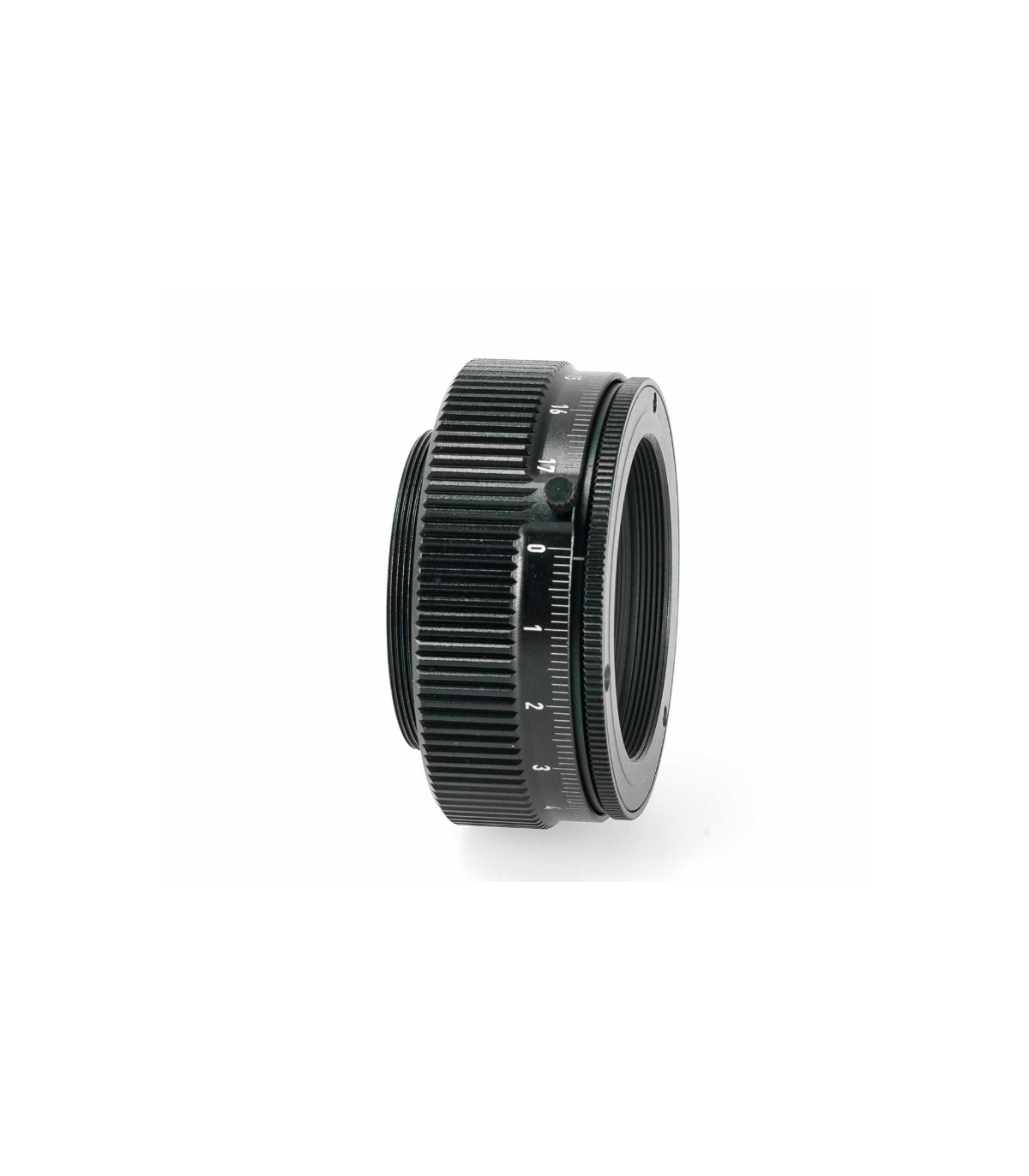

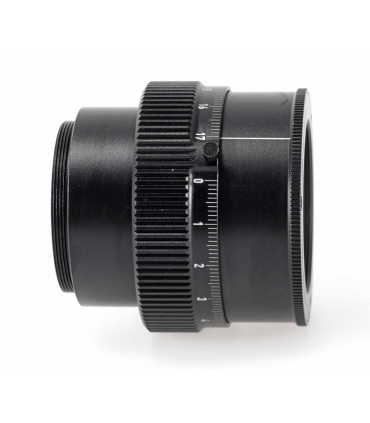

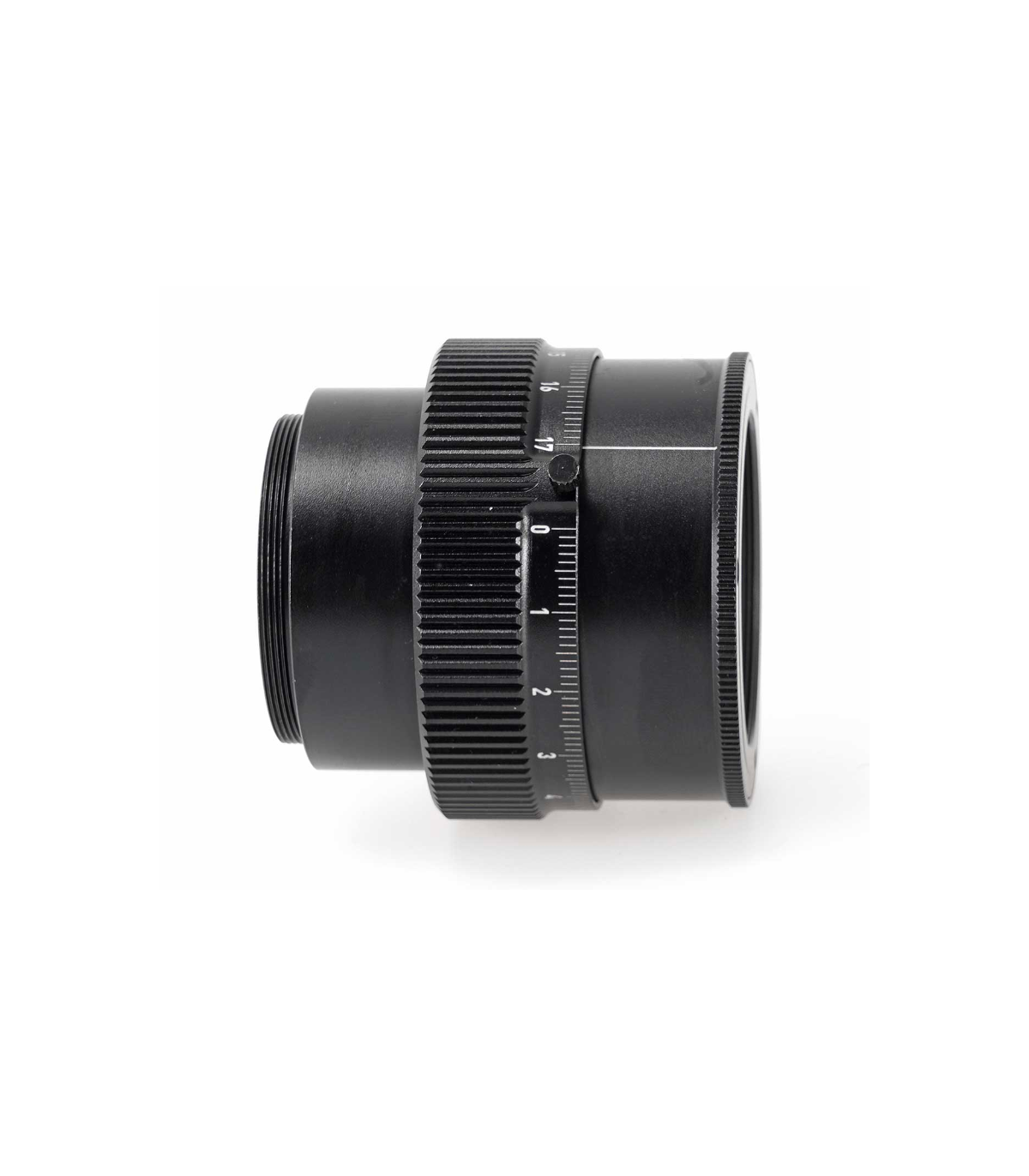

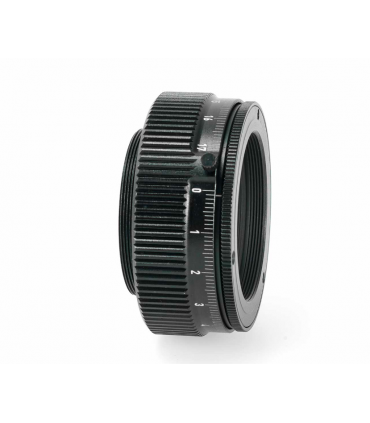

TS-Optics m48 Helical Focuser with m48 Connection - 24-45mm Length
The short helical focuser allows precise focusing without rotating the camera.
♦ Telescope side connection: Internal thread M48x0.75
♦ Camera side connection: external thread M48x0.75
♦ Adjustment range: 21mm
♦ Shortest overall length is only 24mm
♦ With a locking screw when the desired focus position is reached
♦ No rotation: the camera does not rotate when focusing
♦ At the same time a variable extension M48 from 24 mm to 55 mm with continuous adjustment
€134.90
(VAT incl.)
Reference:
TSHeli-M48
TS non-rotating helical focuser with M48 threads for precise adjustment
We have been looking for a short helical focuser for a long time, which also supports the weight of a DSLR or system camera and enables exact focusing. We found what we were looking for in the photo area. Now we can offer you this photo-suitable helical focuser to attach to your telescope.
The connection to your telescope or lens:
The focuser has an internal thread M48 (M48x0.75) on the telescope side. You can attach the focuser to almost all telescopes with the appropriate intermediate adapters. Many telescopes already have an M48 photo connector with them. With this helical focuser you can focus very precisely, down to a fraction of a millimeter.
Attachment of accessories to the helical focuser:
The external M48 thread on the camera or eyepiece side is just as flexible. We offer adapters for 2", 1.25" or T2 or of course for many camera bayonets. You can use it to connect your system camera, SLR camera, astro camera, or even autoguider.
Especificaciones:
| Thread telescope side: | M48x0.75 female thread |
| Thread camera side: | M48x0,75 male thread |
| Length: | 24-55 mm |
| Design: | Non-rotating helical focuser |
