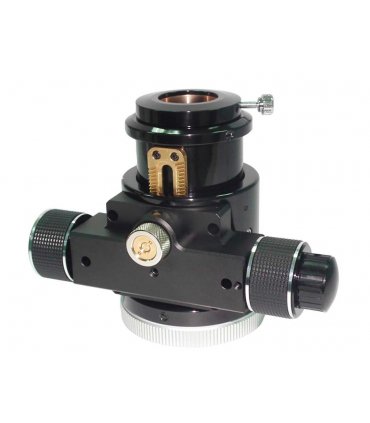

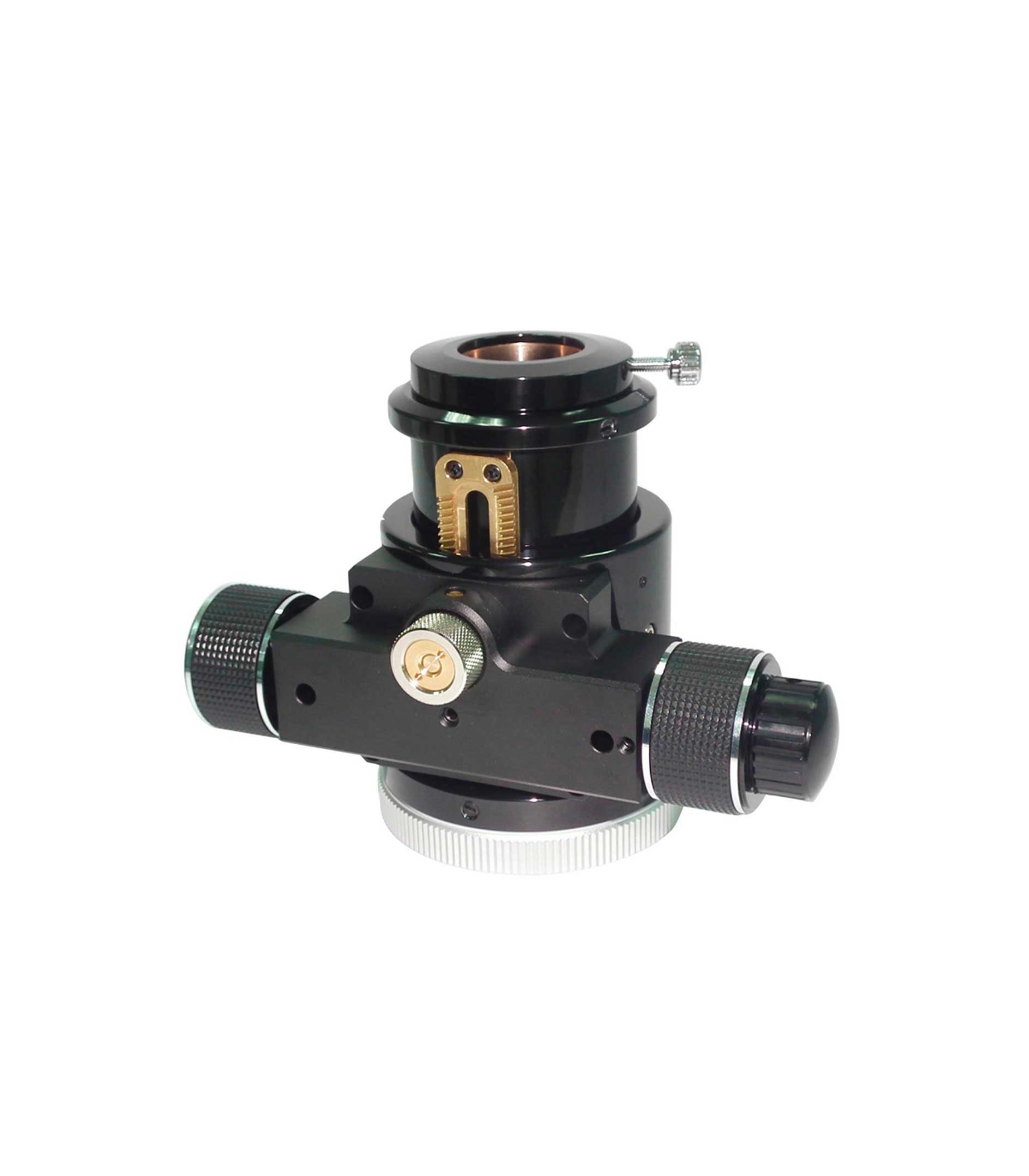

TS-Optics RAP 2" Rack and Pinion Focuser with SC Connection
2" rack and pinion focuser for accessories up to 3kg, suitable for Celestron 2" Schmidt Cassegrain thread
♦ Maximum rigidity thanks to the support of the extension tube with 8 ball bearings
♦ Adjustment is decoupled from the bearing - via a helical toothed rack
♦ Even with a load of 3 kg, the drawer retains its properties
♦ Micro reduction gear for precise focus
♦ Generous sized clamping screw
♦ Includes 360° focuser rotation
♦ Easy adaptation to Schmidt-Cassegrain EHD telescopes with at least 8" aperture
€299.00
(VAT incl.)
Reference:
TSRPSC2
TS 2" rack and pinion RAP focuser with SC connection thread
An ultimate focuser for Schmidt-Cassegrain, EHD and Intes microtelescopes with higher load capacity and accuracy than most conventional Crayford focusers we know of. We recommend the focuser primarily to astronomers who use their telescope for observation and astrophotography and value maximum rigidity and precision.
Caution: The focuser only works on telescopes with an aperture of at least 8", otherwise the focus knob is too close to the thread to allow assembly.
Especificaciones:
| Min. height (from SC thread to 2"): | 93.5 mm |
| Draw tube travel: | 25 mm |
| Connection telescope side: | 2" SC female thread |
| Connection eyepiece side: | 2" and 1.25" receptacle |
| Adjustment: | via rack and pinion |
| Dual speed: | yes |
