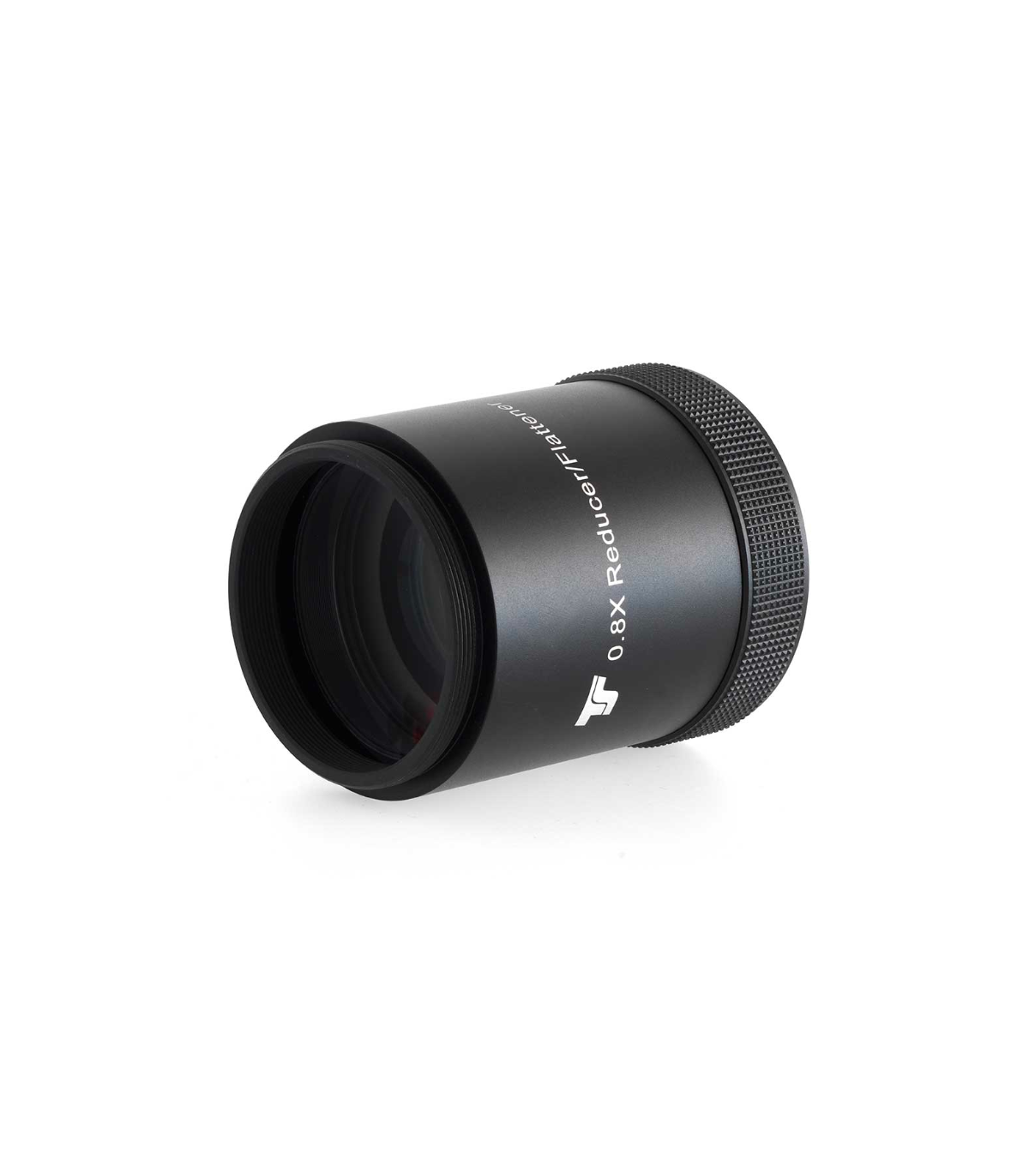

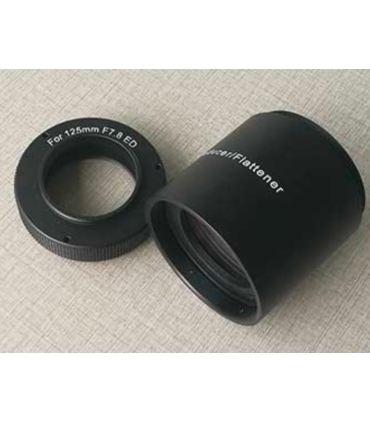

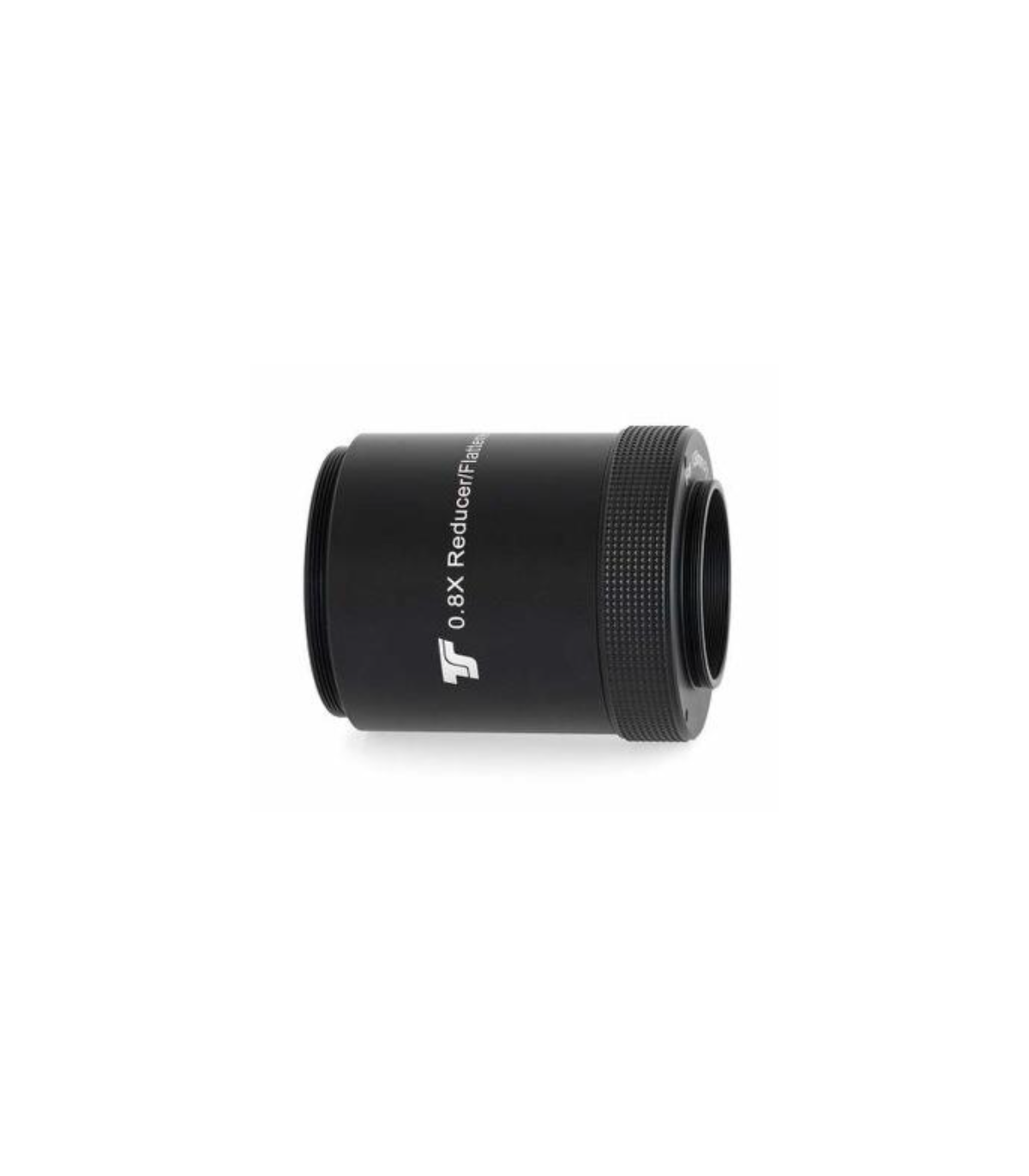

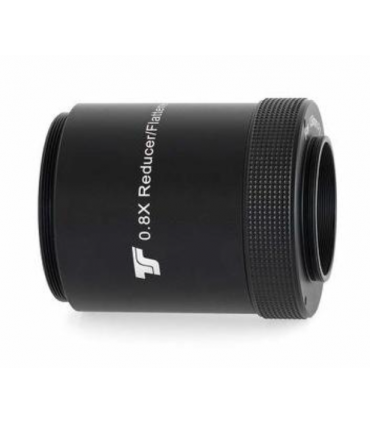

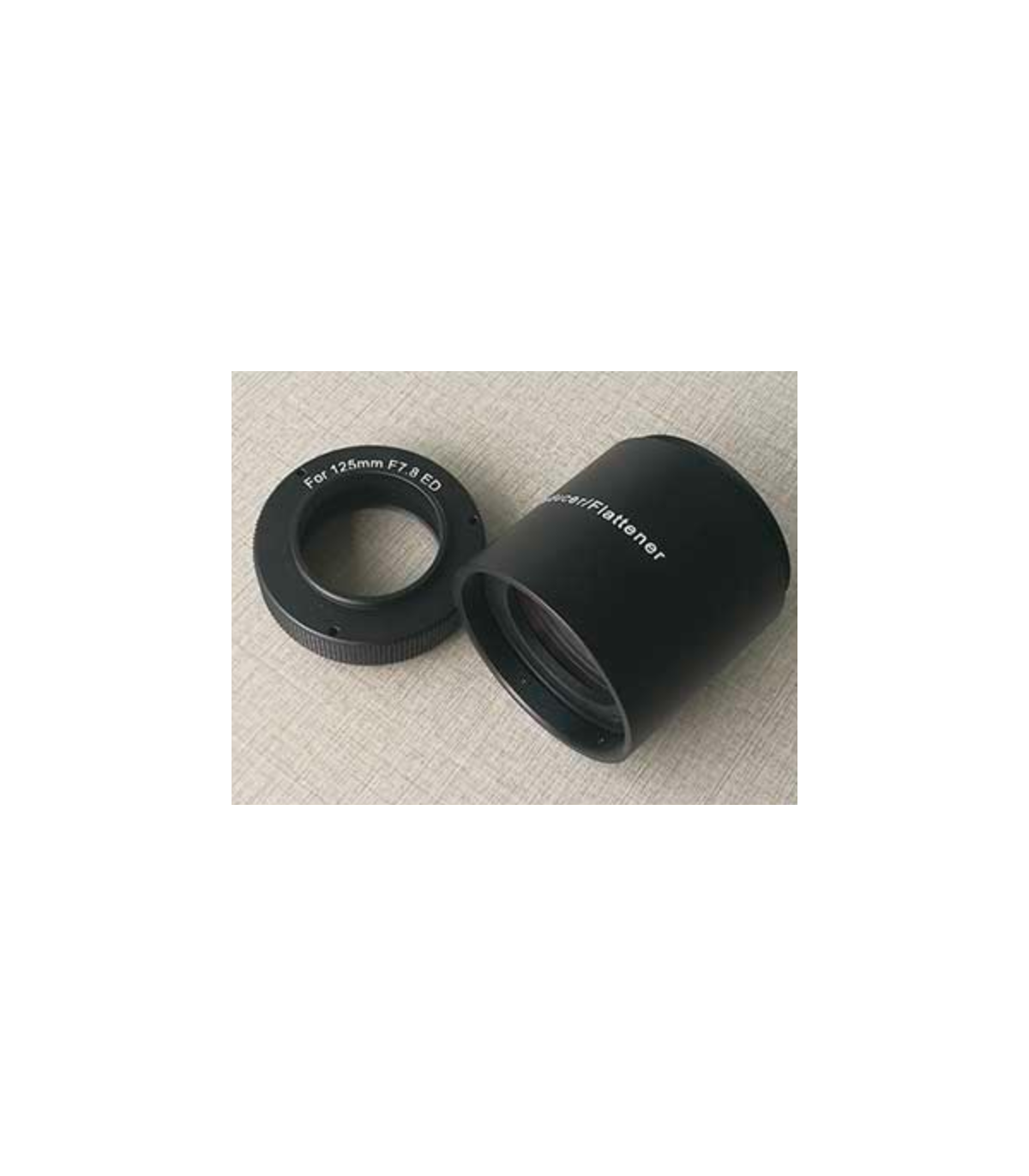

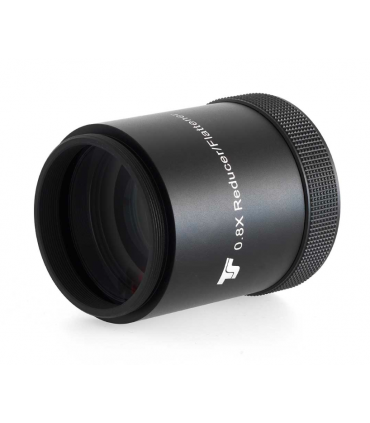

TS-Optics 0.8x 2.5" Field Corrector for Photoline Apo 125mm f/7.8
TS Photoline corrector and 0.8x focal length reduction for astrophotography with the Photoline 125mm f/7.8 SD apo
♦ 0.8x focal length reduction - exposure time is reduced to 64%
♦ Optimized for Photoline SD-Apo 125mm f/7.8: corrector can also be combined with similar refractor telescopes
♦ Screwed connection to the refractor via thread M63x1
♦ Working distance 55 mm from the connection thread M48x0.75
♦ 2" filter thread (internal thread) integrated in detachable camera adapter
♦ Excellent field correction up to full format
€255.00
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSRedM63-125
TS Photoline 2.5" corrector and reducer for astrophotography
The corrector is calculated for the TS Photoline 125mm f/7.8 SD Apo and offers optimal results with this telescope. Stars are displayed punctually to the edge, even with full-frame sensors.
The corrector is simply screwed onto the focuser's M68x1 connection thread using the adapter M68a-M63i (linked). Nothing is plugged in, so it is impossible to tilt it.
The working distance from the M48 thread to the camera sensor.
The working distance is exactly 55mm, so connecting an astronomical camera, for example from ZWO, is no problem, because cooled cameras always come with the 55mm adapter. DSLR and mirrorless system cameras can also be easily retrofitted. We will be happy to help with adaptation.
Specifications:
| Design type: | 3-element 0.8x reducer and corrector |
| Suitable for: | TS 125 mm f/7.8 SD Apo |
| Connection telescope side: | M63x1 external thread |
| Camera side connection: | M48x0.75 external thread |
| Working distance: | 55 mm |
| Filter thread: | 2" filter thread is integrated in the camera adapter - suitable for low-profile nebula filters with max. 5 mm housing height without external thread |
| Coating: | Multi-coating on every glass-air surface |
| Body length: | 78 mm (w/o male threads) |
