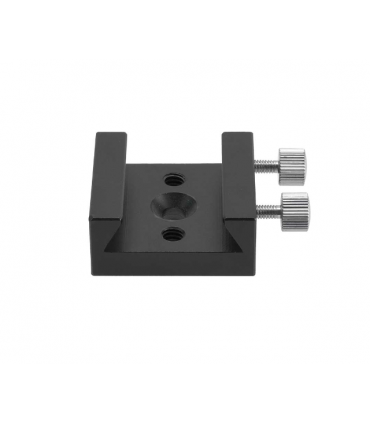

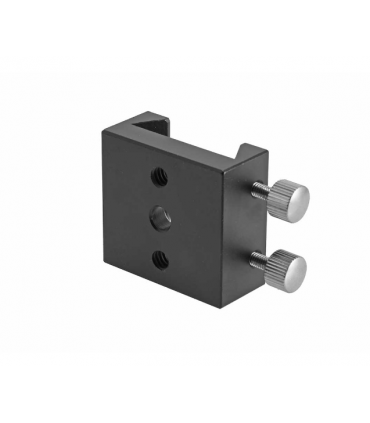

TS-Optics finder shoe with flat mount, 1/4" photo tripod thread and countersunk hole

The viewfinder shoe allows the viewfinder mount to be attached to camera mounts with a 1/4" tripod connection, photo tripods and flat surfaces.

♦ 9mm thick flat support surface for maximum stability

♦ Internal 2x 1/4" photo tripod thread: suitable for photo tripods, ball heads, camera mounts...

♦ Countersunk hole, suitable for countersunk screws up to M6 and 1/4" - ideal for flat surfaces such as pipe clamps

♦ Ideal for attaching mini guide scopes or finders

♦ Secure attachment of the scope with two knurled screws

€24.75
Entrega entre 8 y 10 días laborables
Entrega entre 8 y 10 días laborables
Reference:
TSSuchersZ
Description

The viewfinder shoe allows the viewfinder mount to be attached to camera mounts with a 1/4" tripod connection, photo tripods and flat surfaces.

♦ 9mm thick flat support surface for maximum stability



♦ Internal 2x 1/4" photo tripod thread: suitable for photo tripods, ball heads, camera mounts...



♦ Countersunk hole, suitable for countersunk screws up to M6 and 1/4" - ideal for flat surfaces such as pipe clamps



♦ Ideal for attaching mini guide scopes or finders



♦ Secure attachment of the scope with two knurled screws

Specifications:

Support area: Flat seat 41 x 39 mm
Clamping: Clamping via two knurled screws
Slotted hole: suitable for M6 screws
1/4" photo thread: 2x - length 9 mm, 24 mm bore distance
Maximum diameter of the countersunk: 12 mm
Diameter of the base plate: 9 mm
Dimensions: 40 x 42 x 19 mm (L x W x H)
