Ultra-flat Starlight Xpress off-axis guide for use with the SX filter wheel
Starlight Xpress Off Axis Guider with small optical length
♦ Fixed screw connection with the filter wheel - therefore optimum rigidity

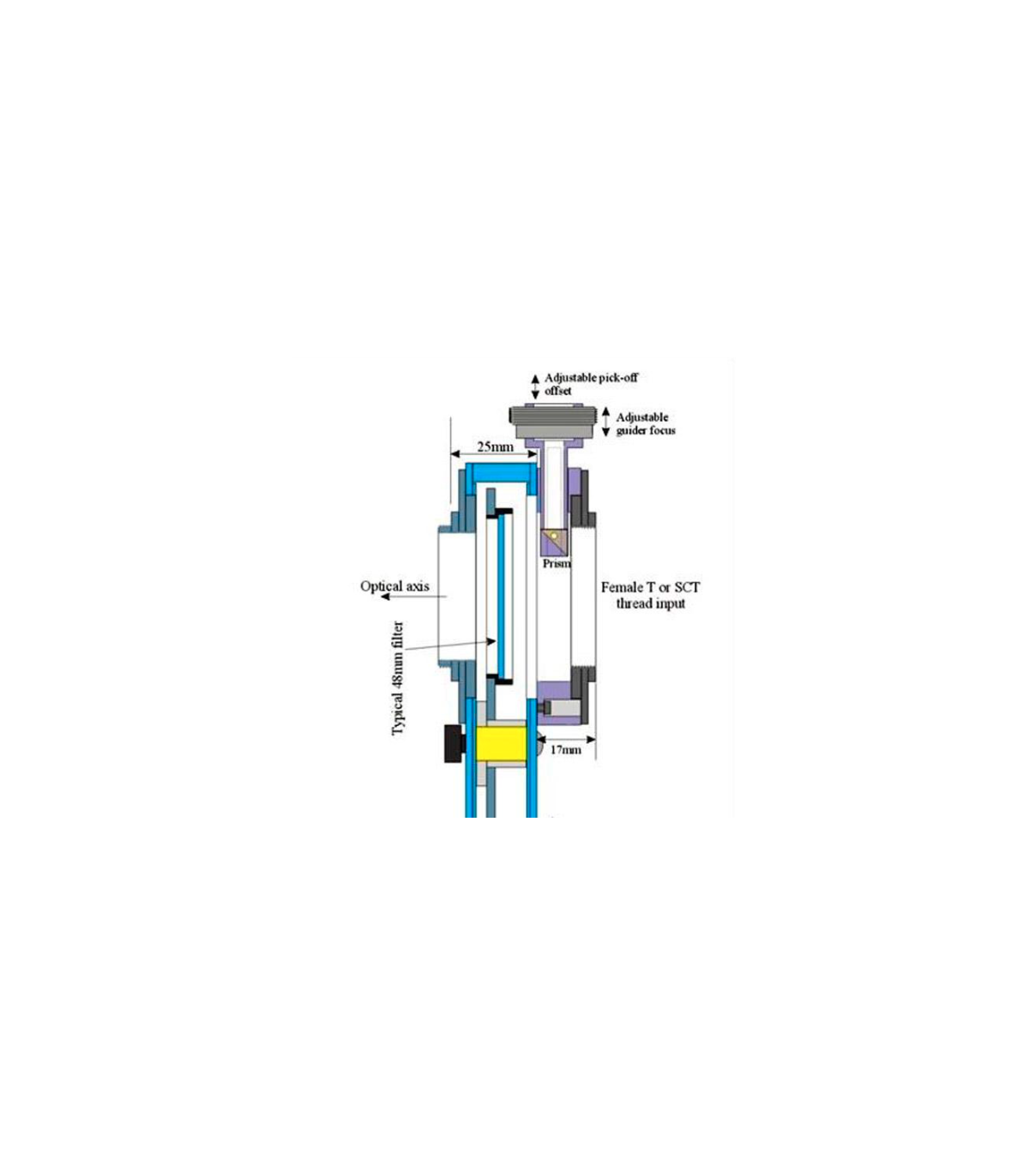

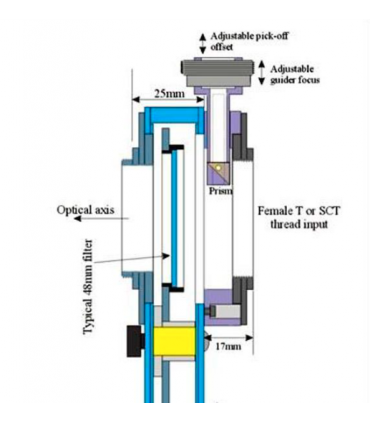

♦ 13mm path length only (separate connection thread (SXUFW T2 or SC) with 4mm length is not included)
♦ Sufficiently dimensioned 10x8 mm prism: fully illuminates, for example, the Lodestar autoguider
♦ easy sharpness adjustment via side clamping screw
♦ Filter wheel and automatic guide are not included in the scope of supply
€289.00
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
20703

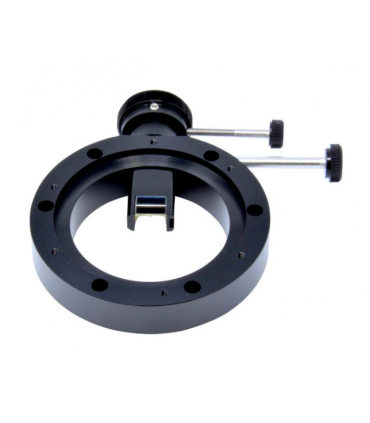

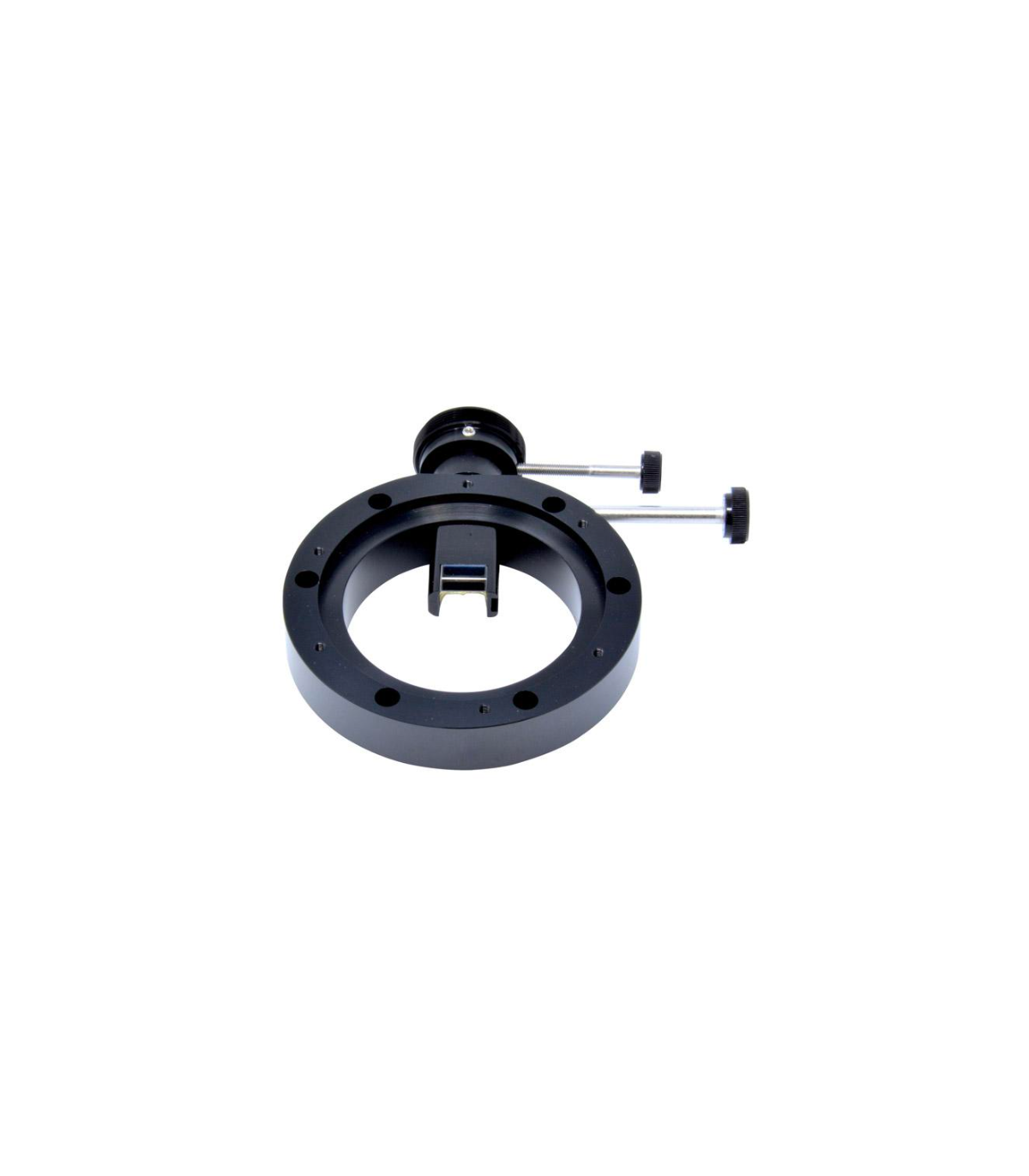

New super fine off-axis guide

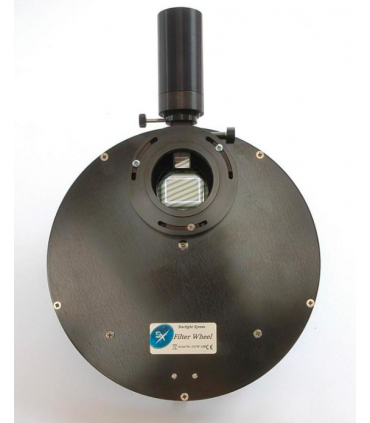

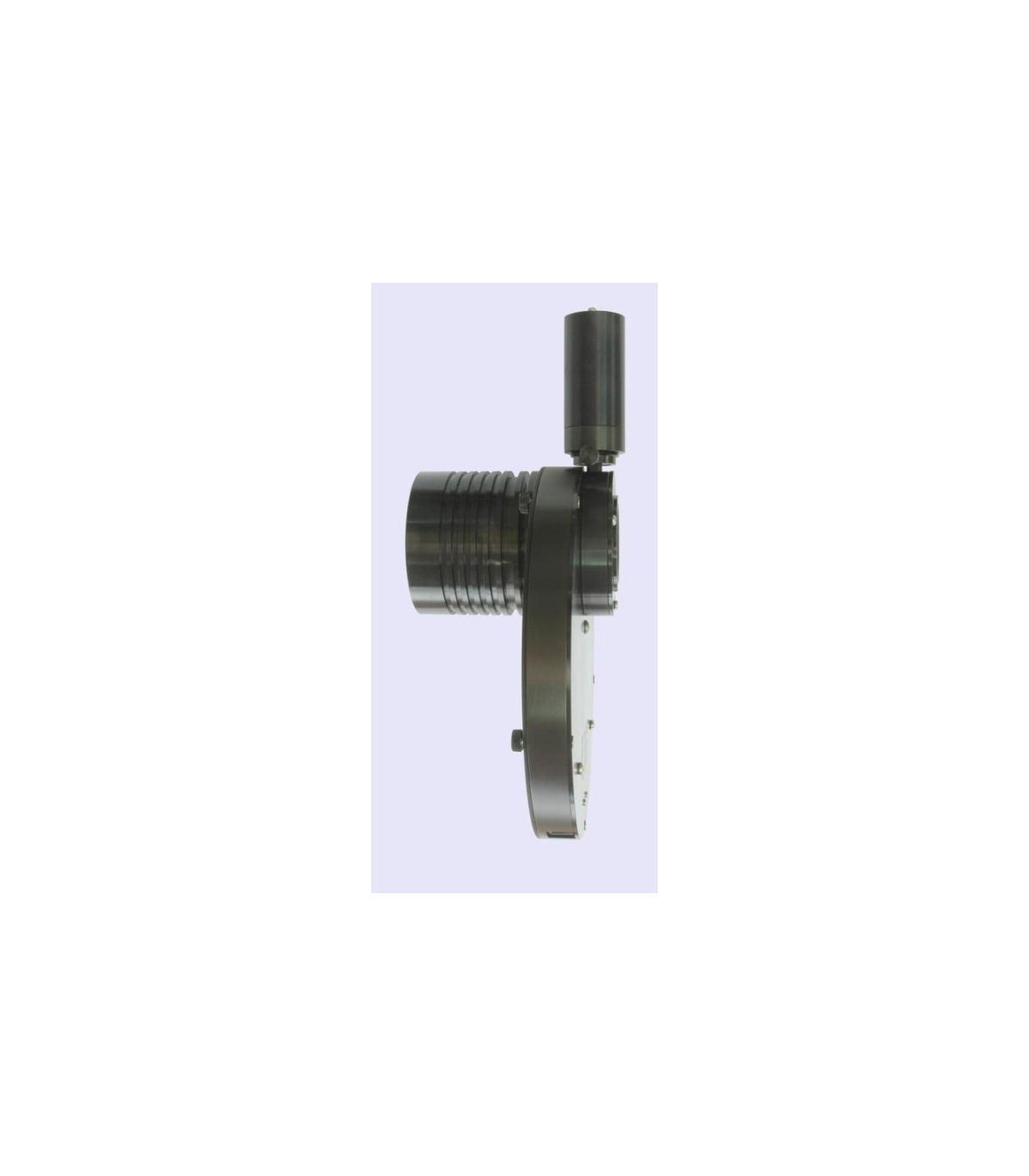

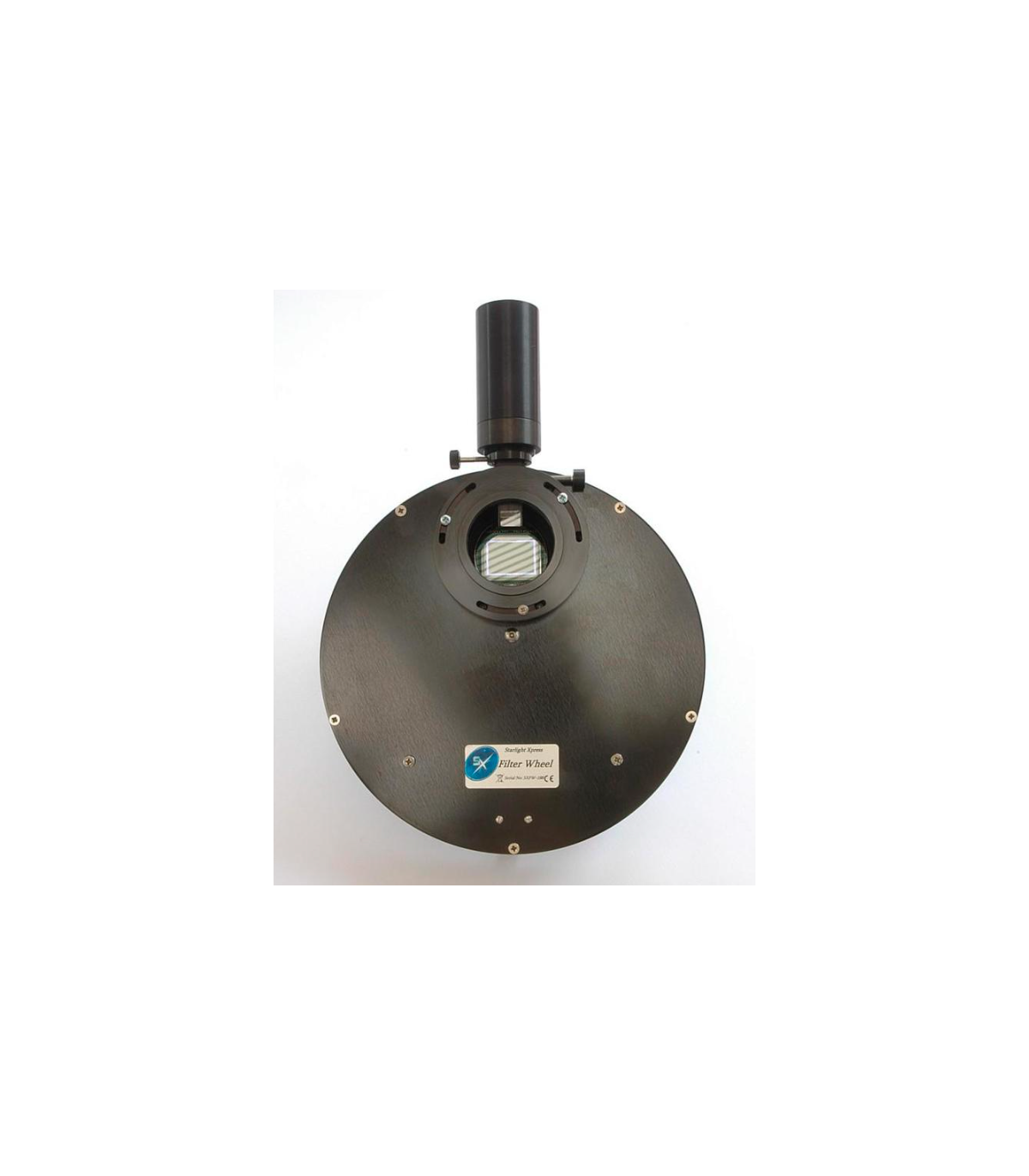

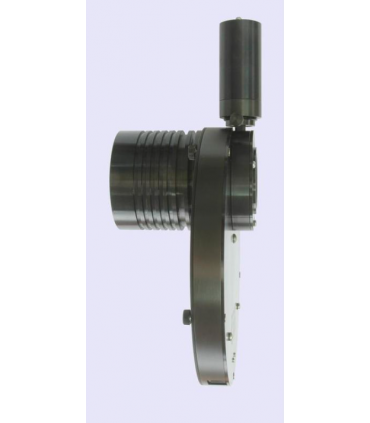

This new filter wheel accessory facilitates precise, flex-free guiding. The extremely slim assembly bolts directly to the face of the wheel and adds just 13mm to the rear focal length of the wheel. The 10 x 8mm prism fully illuminates a Lodestar or EX guide CCD and the acquisition axis can be adjusted to optimize guide image quality. An alternative filter wheel faceplate is also available for direct connection of our H18 and M26 cameras [20704] (not suitable for other SX cameras, as the OAG cannot achieve focus for these, without the camera adapter on its place)
