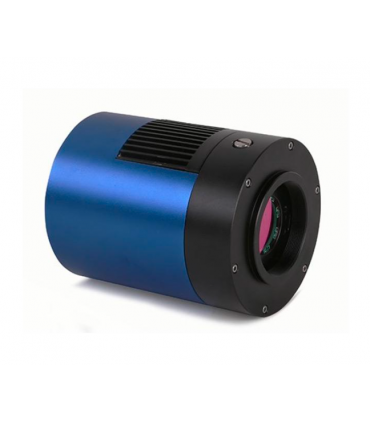

TS-Optics MONO AstroKamera 492MP Sony IMX492 sensor D-23.1mm

Cooled MONO APS-C USB 3.0 astronomical camera with a powerful Sony CMOS sensor for astrophotography

♦ Powerful two-stage Peltier cooling up to 35°C below ambient temperature

♦ Sony IMX492 MONO back-illuminated sensor

♦ Pixels 8184 x 5616 at 4.63 µm size , 46 megapixels, with 2x2 bining we get 4,6um and 11.5 megapixels

♦ 12-bit ADC - wide dynamic range

♦ DDR Memory Buffer 512 MB - Buffer memory for more stable data transport

♦ No more annoying amp shine

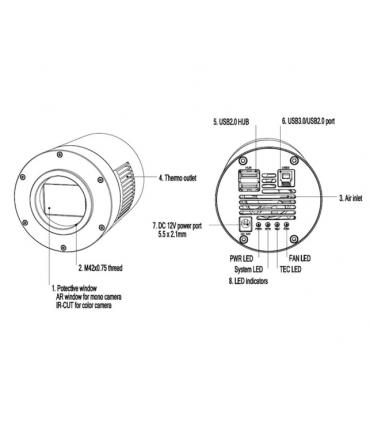

♦ Telescope side connection: female thread M42x0.75

♦ Working distance of only 17.5 mm from the T2 female thread (M42x0.75)

♦ Built-in AR filter as protective glass

♦ Grouping is supported

♦ Unlike the third picture, no extra desiccant or CD is included.

Entrega entre 8 y 10 días laborables
Entrega entre 8 y 10 días laborables

Latest generation TS 492MP black and white astronomical camera

The camera with the powerful Sony IMX492 back-illuminated sensor enables astrophotography at a very high level. This modern sensor can be used for all areas of astrophotography. 4.63 µm pixels make this camera an all-rounder with maximum sensitivity for short exposure times.

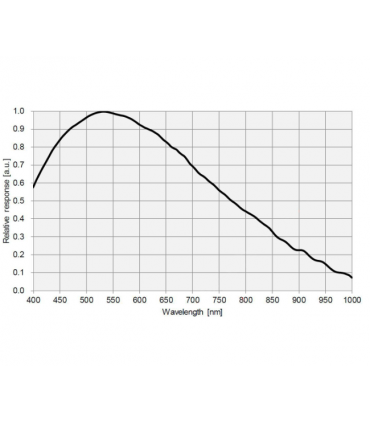

Another advantage is the sensational sensitivity to light. The QE of 80% thanks to the BACK ILLUMINATION technology already allows deep astrophotography with short exposure times. This makes the camera very suitable for deep sky photography.

Back lighting technology:

Sony's back-illuminated CMOS image sensor improves sensitivity and noise reduction, key factors in improving image quality, by changing the basic pixel structure from front to back exposure. The advantages of CMOS image sensors, such as low power consumption and high operating speed, have been retained.

Postexposure improves light capture while increasing the amount of light. This makes significantly shorter exposure times possible and leads to an improved quantum efficiency of 80%.

Sony has developed a unique photodiode structure and on-chip lens optimized for back-illuminated structures, resulting in higher sensitivity and lower non-light random noise by reducing noise, dark current, and defective pixels compared to traditional structure with front lighting.

Optimum support before and after the purchase by Teleskop-Service

Thanks to many years of experience, we can offer you the best possible advice and also an excellent after-sales service. We can perform almost all services in-house. For a professional service, we also have a clean room, where we can carry out repairs, cleaning, etc. excluding dust.

Connection to correctors with M48 thread and 55 mm working distance with filter change

Most refractor field flatteners or coma correctors have a 55mm working distance and an M48x0.75 thread on the camera side. Here is an interesting suggestion for the connection. The camera has a 17.5mm back focus from the internal T2 thread. The adapters are from the camera to the corrector:

1. TSFSLM48T2 - Filter box with T2 connector on the camera side and M48 thread on the telescope side.

2. TSVF220 - 20mm M48 Extension

A total of 55.5mm back focus - 0.5mm well compensates for the filter glass path - precision landing!

Sensor: CMOS mono sensor IMX492
Size: 19.1 x 13.0 mm - diagonal 23.1 mm
Pixel size: 2.3 µm
Number of pixels: 8184 x 5616 - 46 MP
Bit depth: 12
Frames per second: 16 frames at full resolution
Cooling: Peltier cooling up to 35 °C below ambient temperature
Power supply: 12 V, 3 A
Interfaces: USB 3.0 and USB 2.0
Supported operating systems: Windows from Win7

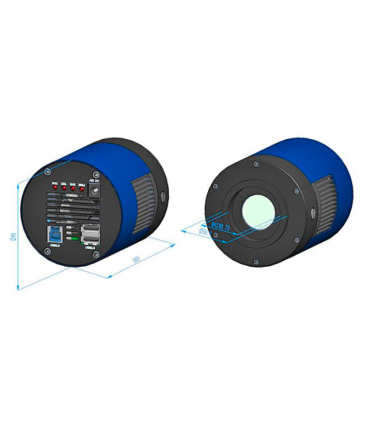

Dimensions: Diameter 80 mm - Length 100 mm
Connection telescope side: T2 internal thread (M42x0,75)
Back focus: 17.5 mm (distance sensor to internal thread)
