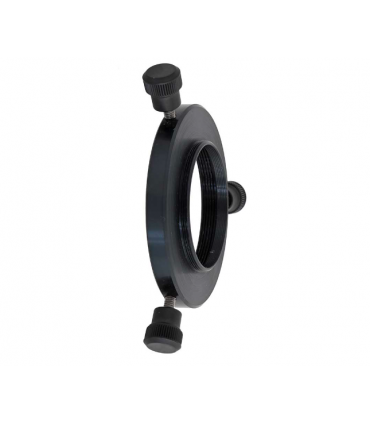

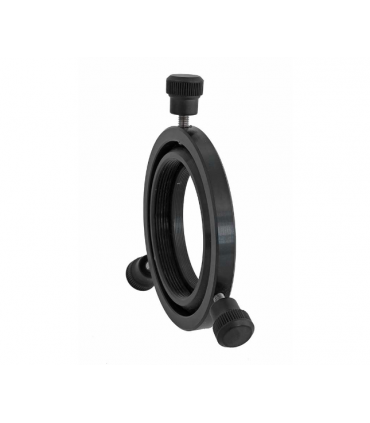

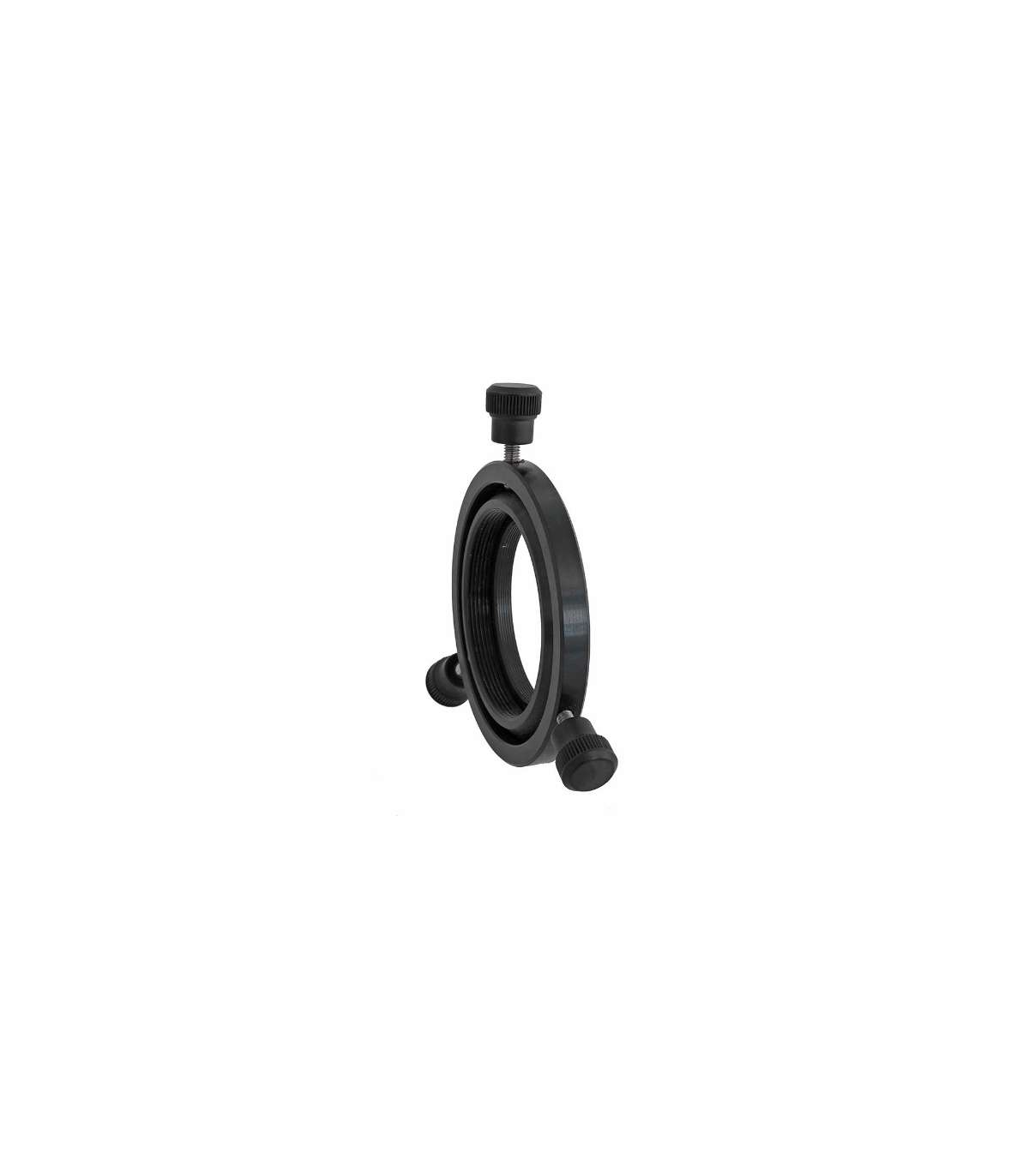

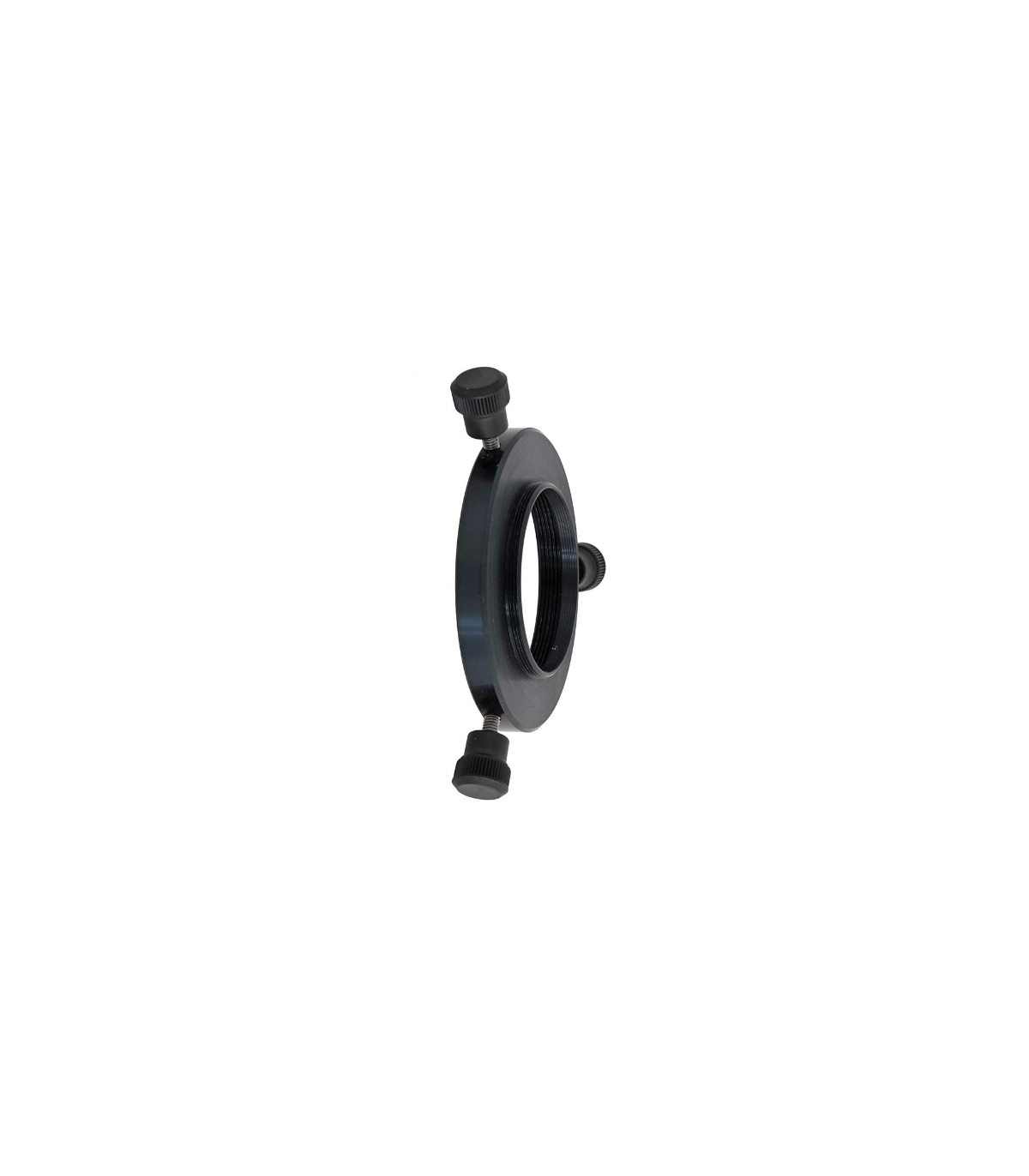

TS-Optics 360° rotation and SC quick coupling to M48 thread - short
TS 360° Rotation Adapter and 2" SC to M48x0.75 Thread Transition - Allows use of M48 accessories on Schmidt Cassegrain telescopes
♦ Telescopic side thread: Internal thread 2" SC - length 7 mm
♦ Eyepiece and camera side thread: External thread M48x0.75 - length 4 mm
♦ Total optically effective length of the adapter: 8.5 mm
♦ Quick Release Feature - The camera can be removed in seconds without the hassle of screwing
♦ Self-centering: the inner adapter is centered in the optimal position thanks to its conical shape
♦ Suitable for all SC, EHD, ACF... telescopes with 2" SC thread or suitable adaptation
€54.90
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSROTSC-M48
TS Rotation, Quick Coupling and M48 Transition for SC Telescopes
The short adapter was developed by Teleskop-Service based on practical experience. It is suitable for all Schmidt-Cassegrain and similar telescopes and fulfills several functions:
♦ Brief transition from SC thread to M48x0.75 male thread to use accessories with the appropriate female thread, eg photo adapters or offsets. The total optically effective length is only 8.5mm.
♦ 360° Rotation – So you can always carry your camera or visual accessories in the correct orientation for optimal image detail or the optimal viewing position.
♦ Quick Disconnect - You can detach the accessory from the telescope in a few seconds without the hassle of screwing. The tapered outer shape of the inner adapter ensures a perfect fit every time without tilting.
| Thread telescope side: | 2" SC female thread - length 7 mm |
| Thread camera side: | M48x0.75 male thread - length 4 mm |
| Optically effective length of the adapter: | 8.5 mm (without external thread) |
| Outer diameter: | 74 mm without locking screws |
What´s included in the bos:
♦ Helical Focuser with 2 locking screws
