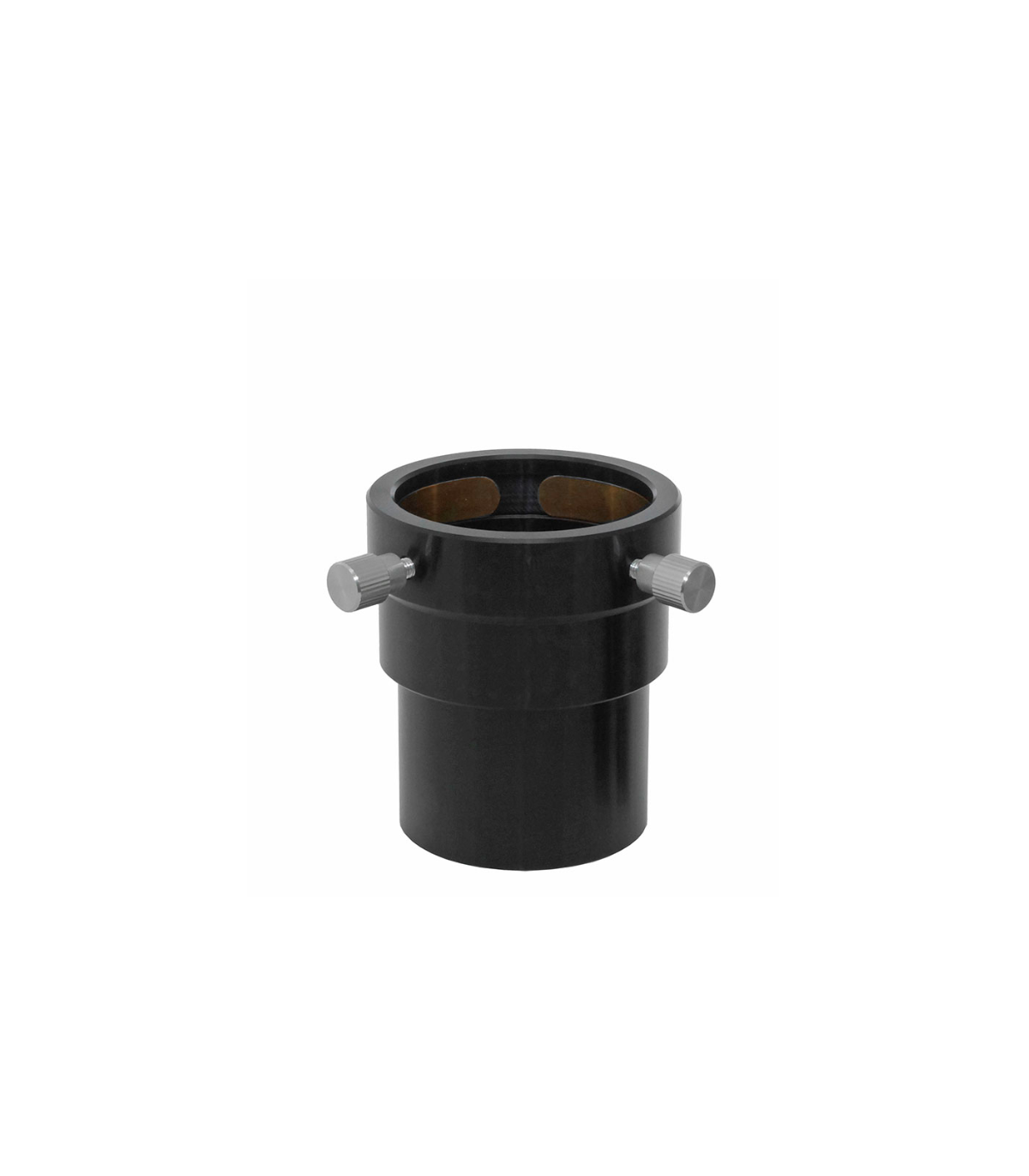

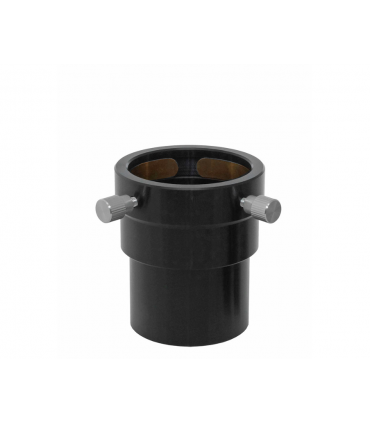

2" TS-Optics extension with 35mm length
2" TS extension tube with 35mm optically effective length, if the focus is too far from the focuser.
♦ Total optically effective length is 35mm
♦ Mounting on eyepiece and camera side by means of two knurled screws with brass clamping ring
♦ 2" filter thread available on the side of the telescope
♦ No lock slot
€29.90
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSV235
TS Optics extension sleeve for 2" plug connection - length 35 mm
An extension tube is the ideal solution if the focus is further away from the focuser, for example to allow the telescope to be used for photography. This extension tube joins the 35mm optical path. This means that it is no longer necessary to unscrew the focuser all the way. The mechanical stability increases.
When calculating the optically effective length, the length of the insert sleeve is not included in the calculation, as it disappears into the focuser.
TS 2 Extension Tube Product Features:
♦ Neat ring clamp on eyepiece side with two thumb screws.
♦ Solid aluminum CNC manufacturing.
♦ A 2" filter thread is attached to the side of the telescope.
♦ No locking groove - no sloping or snagging - ideal for compression rings
| Telescope side connection: | 2" nosepiece with filter thread (M48x0.75) |
| Eyepiece side connection: | 2" receptacle with brass compression ring |
| Optical length: | 35mm |
| Overall length: | 70mm |
What´s included in the bos:
Ts-Optics Adapter
