TS-Optics Single Connection Adapter for the TS-Optics Ultra Gigant Off Axis Guider
The single connection adapter for the TS Ultra Gigant Off Axis Guider allows connection to almost any telescope or camera.
♦ individually manufactured according to your wishes
♦ fits almost all telescopes or almost all correctors
♦ fits almost all cameras or almost all filter changers
€237.60
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSUG-OAGAdap
TS-Optics Single Connection Adapter for the TS-Optics Ultra Giant Off-Axis Guider
The TS Ultra Giant Off-Axis Guider is characterized by its short design and particularly versatile connection options. In addition to our standard adapters, we also offer the option of individual adaptation. This applies to both the camera side and the telescope side.

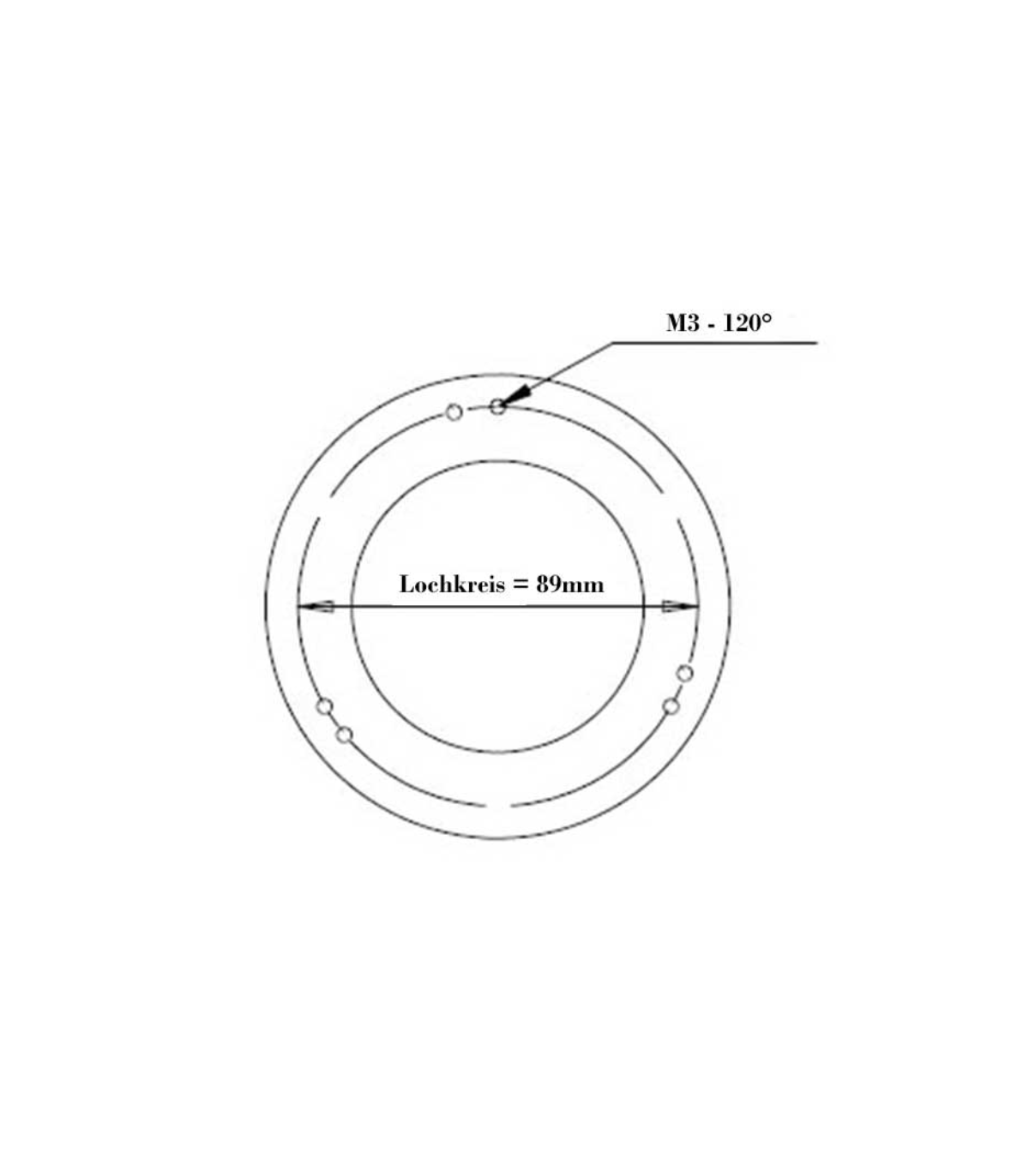

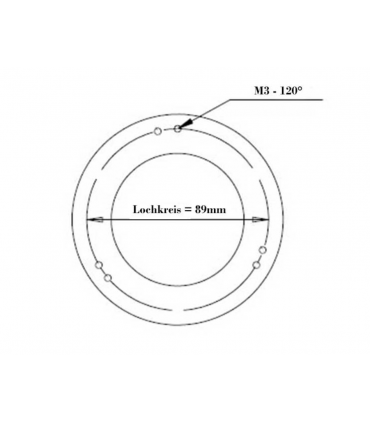

The connection dimensions of the Ultra Giant Off-Axis Guider:
♦ Three M3 through threads offset by 120°
♦ three holes suitable for M3 cylinder head screws offset by 120°
♦ Holes and threads are 44.5mm from center
In order to optimally manufacture the adapter for you, we require the following information:
Adapter for the telescope side or for the camera side?
On the telescope side:
♦ Connection thread on telescope or corrector side - always indicate which corrector is used
♦ Desired total length of the adapter
On the camera side:
♦ Filter wheel or chamber connection thread: always indicate which chamber or filter changer is used
♦ Desired total length of the adapter
| Designed for: | TS-Optics Ultra Gigant Off-Axis Guider |
| Suitable for side: | Telescope side or camera side |
| Pitch circle diameter: | 89 mm |
| Thread: | Three M3 through-hole threads, offset by 120° |
| Holes: | Three through holes for M3 countersunk screws, offset by 120° |
| Distance of threads and holes to the center: | 44.5 mm |
What goes in the box:
♦ TS Optics Adapter
