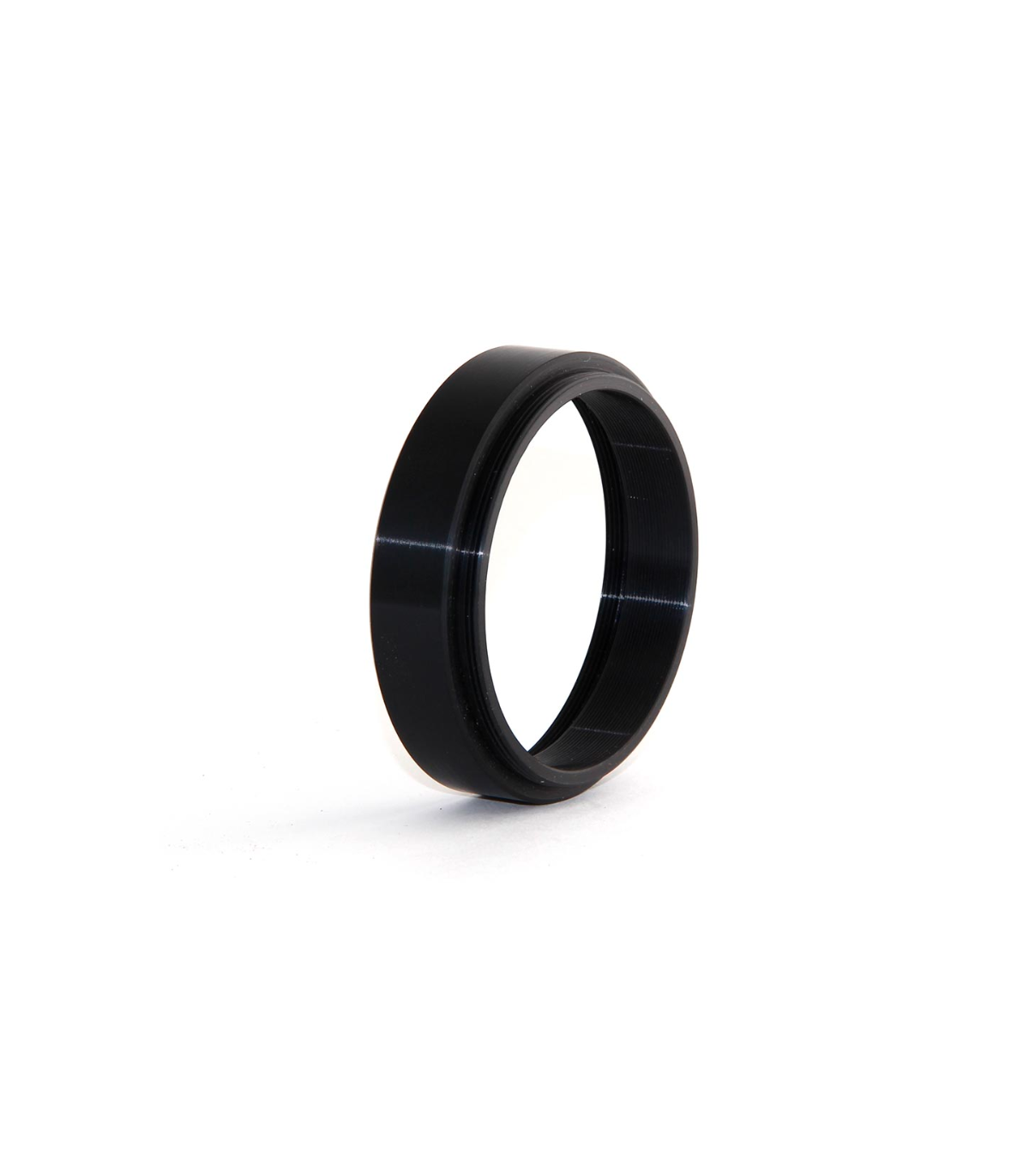

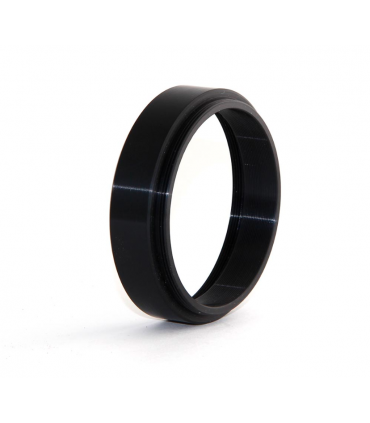

TS-Optics adapter with internal thread M76x1 and external thread M68x1
The adapter allows the connection of accessories M68x1 to the reducer and corrector TS Photoline 0.74x for APOs APORED075
♦ Corrector side thread - Internal thread M76x1
♦ Camera side thread - External thread M68x1 - length 5 mm
♦ Adapter optically effective length (without external thread) - 20.7 mm
♦ Working distance from the M68x1 external thread with the APORED075 is 85mm - plenty of room for accessories such as filter wheels or off-axis guides
€215.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSM76i-M68a
TS to M68x1 adapter for Photoline 0.74x APO corrector
The adapter allows the connection of M68 accessories to the corrector and leaves enough working distance for individual adaptations. In addition, the adapter avoids the bottleneck with the M48 thread. This allows full illumination, even with full frame sensors.
| Thread telescope side: | M76x1 female thread - length 8 mm |
| Thread camera side: | M68x1 male thread - length 5 mm |
| Effective length of the adapter: | 20.7 mm without male thread |
What goes in the box:
♦ TS Optics Adapter
