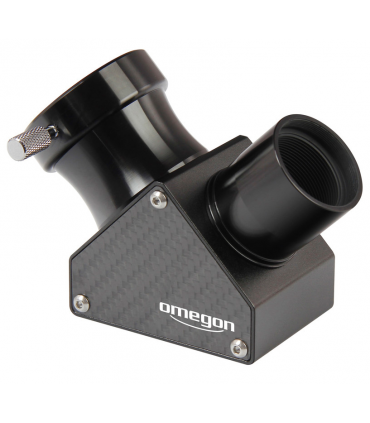

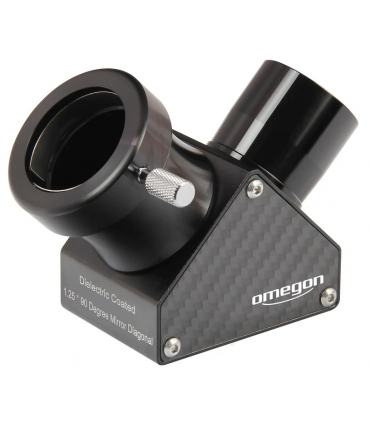

Omegon Carbonline 1.25'', 90° diagonal star mirror, 99% dielectric

The benefits in a nutshell

1.25" mirror star diagonal directs image 90° upwards, suitable for refractor, Maksutov and SC telescopes

for a better image - suitable as a replacement for a standard diagonal star

99% Reflection - Provides 10% brighter images than an ordinary mirror

elegant design - made of carbon fiber and black anodized aluminum

For all 1.25" focusers

You can use this diagonal mirror star in any refractor, Maksutov, or SC telescope that has a 1.25" focuser. Omegon's Carbonline unit deflects the image 90° upwards to give you a comfortable angle of view.

For all 1.25" eyepieces

Whether Ploessl or wide angle, this diagonal mirror star can fit any 1.25" eyepiece. The compression spring ring clamp keeps the eyepiece barrel in optimal grip for any observing orientation.

Brighter images - mirror with 99% reflection

You can expect a bright, sharp image, with inconspicuous detail or faint nebulae now looking even better. The reason: a mirror with multiple microscopically thin deposited dielectric mirror layers that achieve 99% reflection. That means: 10 percent more light than the mirror diagonals that normally come as accessories with most telescopes.

carbon fiber and aluminum

The star diagonal of the mirror consists of carbon fiber and anodized aluminum elements. Sleek, light and stable - Carbonline 1.25" Diagonal Star Mirrors look good and will continue to provide a beautiful view even after many years of use.

Specifications:

Capacity
Connection (to the telescope)	1,25"
Viewing posture	90°
Coating of optical system	dielectric
Surface reflection	99
Weight (g)	220
Connection ( to eyepiece)	1,25"
Special features
Correction of vertically reversed image	yes
Correction of horizontally reversed image	-
Ring clamp	yes
General
Colour	black
Series	Pro
Overall size LxWxH (cm)	10x45x7
Material	Alu, Carbon
Type	Deviating optics
Type of build	Diagonal mirror
