Equip TS-Optics and GSO 2" Crayford and Monorail focusers with the ZWO EAF motorized focus system.
♦ Suitable for TSFOCN2, TSFOCN2M, TSFOCSC, TSFOCSCM and TSFOCR2M and all telescopes equipped with these focusers.
♦ Suitable for MonorailN2, MonorailR96, MonorailR86, MonorailSC and MonorailM90 and all telescopes that are equipped with these focusers.
♦ Allows the use of ZWO's EAF motorized focus system

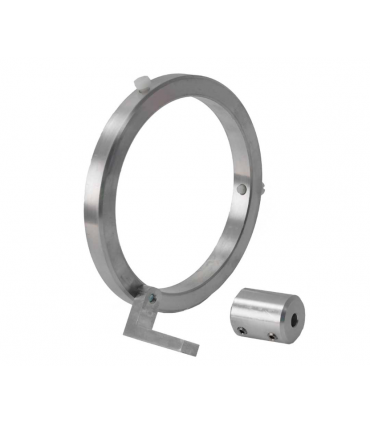

♦ Contains the snap ring for the extension with 2 plastic screws on the EAF adapter and the coupling for the motor shaft
♦ Easy assembly
♦ Made of aluminum
♦ EAF motor focuser and focuser are not included

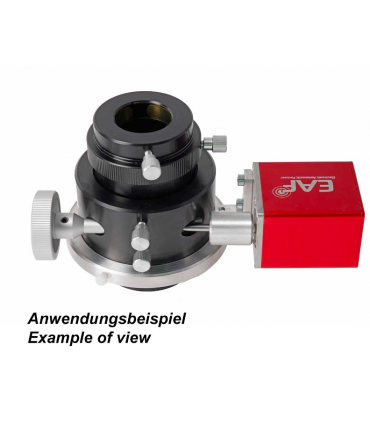

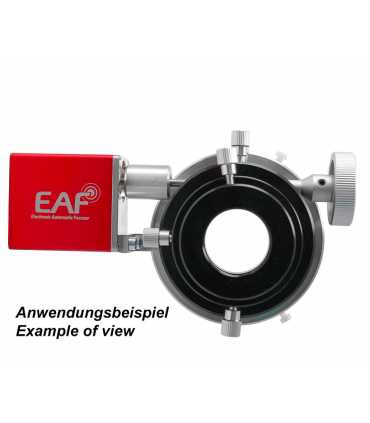

TS EAF Fixation Kit for 2" Crayford Focusers TS-Optics
The kit allows the ZWO EAF focus motor to be adapted to TS-Optics and GSO 2" Crayford focusers. The EAF focus motor makes micro-reduction unnecessary because the adjustment is very fine. Alternatively, the appropriate programs can be used for computer optimization approach and for example temperature compensation.
Connection to focuser:
Since focusers do not have a flat surface to hold the motorized focus, the motorized focus is attached to the focuser housing with a transition ring. Too easy:
♦ Remove one of the two focuser adjustment knobs and place the coupling over it.
♦ Remove the focuser base and place the aluminum ring on the housing.
♦ Insert the shaft of the ZWO-EAF into the coupling and fix the ZWO-EAF to the ring extension. By carefully turning and moving the ring, the extraction shaft and motor shaft are centered.
♦ Next, fix the grub screws on the coupling first, and then fix the EAF on the focuser by lightly tightening the two plastic screws on the ring.
♦ Done: you can start with the motorized focus.
The EAF-FOCN2 fits the following telescopes, among others:
♦ TS 6" and 8" RC Ritchey-Chrétien
♦ Cassegrain TS 6" and 8" telescopes
♦ TS Photon Newtonian telescopes with 2" Crayford or monorail focusers
♦ 8" aperture TS-Optics and GSO Dobsonian telescopes
|Suitable for adaptation of:||ZWO-EAF motor focus system|
|Inner diameter:||82 mm|
