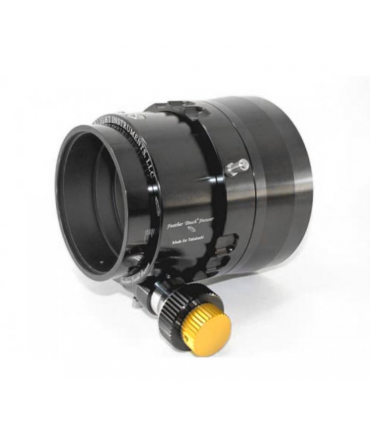

Starlight Instruments Feather Touch® FTF3515-FSQ106, 3.5" for Takahashi FSQ106

This focuser was developed with the Takahashi FSQ106ED in mind. The focus position is adjusted, Takahashi accessories can be screwed on.

♦ Diameter: 3.5"

♦ Internal thread M98x1 on the inner tube

♦ Rack and pinion drive

♦ 10:1 gear reduction

♦ 35mm adjustment range

Read moreShow less
€1,602.48
Entrega entre 7 y 9 días laborables
Reference:
FTF3515-FSQ106
Description

In our experience, the Feather Touch is the best focuser.

All rolling parts are made of hardened stainless steel and run on hardened stainless steel, which significantly improves smooth operation and increases long-term stability and strength. It will continue to show no signs of wear and tear for a long period of time. Especially for CCD and normal astrophotographic use, this focuser is a doddle of the highest quality.

advantage:

♦ 100% correct field level position - extension tube does not yield

♦ 89mm free illumination so even the largest chips are fully illuminated.

♦ Internal baffle system

♦ Ultra-low gear set for precise adjustment

♦ Better mechanical processing

♦ Robust bulb housing - no torsion

♦ 1:10 micro reduction for precise focus

♦ Brake for free adjustment of resistance, friction, depending on load

♦ Solid hold without moving draw tube

♦ Unit decoupled from storage

♦ Positive locking by frictionless, toothed drive – this means even better positive locking can be achieved

♦ Brass rack and hardened stainless steel gear ensure long life

♦ Compatible with Focuser Boss II digital focus kit

Note: Telescope connection adapters and adapters on the eyepiece side are not included in the scope of delivery.

Telescope connection adapters are listed under "Mounting Accessories".

Eyepiece and camera-side adapters are listed under "Adapters."

Especificaciones:

Draw tube threads: M98x1 Female
Fits to: Takahshi FSQ106ED
Drive system: Rack & Pinion
Reduction: 1/10
Friction: adjustable
Lifting capacity: 18-20 pounds
Finderscope hole thread dimension: 8-32 UNC
Clearance for the draw tube: 4.35"
Clamping: Brass compression ring

Read moreShow less
