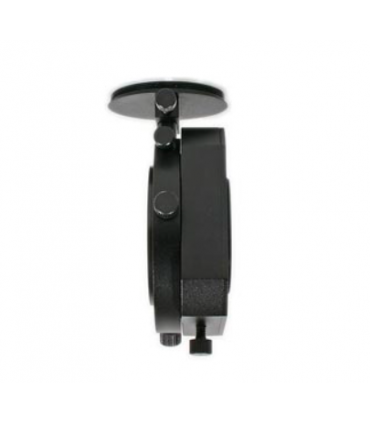

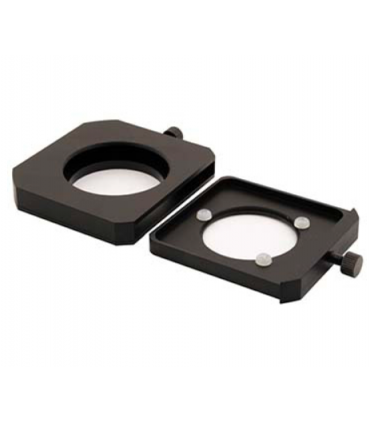

Filter drawer with 1 slot for unmounted 36mm filter - short

TS - T2 filter holder for unmounted filters with Ø 36 mm - only 10 mm total length!

The shortest filter holder for extremely short solutions: the filter drawer is made for unmounted filters with a diameter of 36 mm (eg Baader). Advantages of the TS filter box compared to other systems:

♦ Any number of different filters can be used.

♦ short overall length

♦ therefore optimal lighting

♦ Less space required than, for example, a filter wheel

♦ unused filters can be stored away from dew and dust. With filter sliders, unused filters are completely unprotected!

Very short T2 connection thread on the telescope side: The T2 internal thread is only 2mm long, which is a concession to the short drawer design. If your connection adapter has a longer connection thread, you need T2 tuning rings (see recommended accessories). If the T2 thread penetrates too far into the drawer, the portafilter would get blocked and you would no longer be able to move it.

Extremely short solution: TS filter drawer AND TS off-axis guide: only 21.2 mm!

TS filter box in combination with TS off-axis guide. This is definitely the shortest solution for Y-guide filter changes off-axis: the filter drawer fits directly into the TSOAG9 with T2 connection! The off-axis guide is linked to the recommended accessories.

Specifications:
