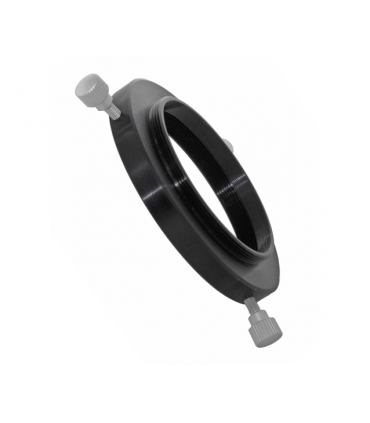

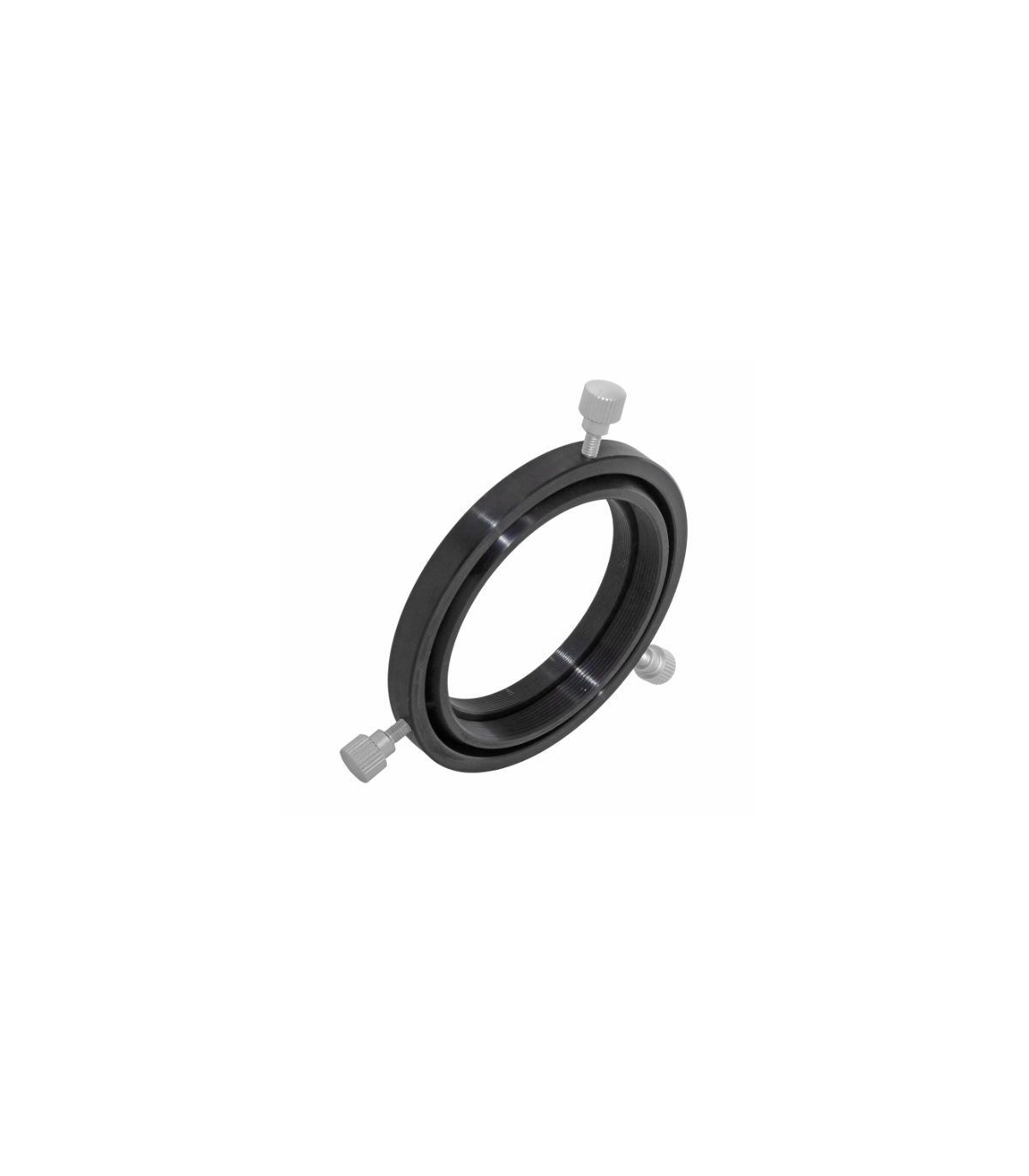

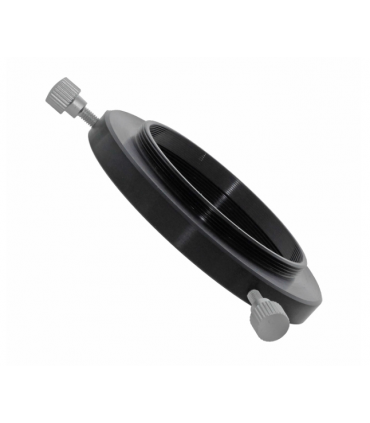

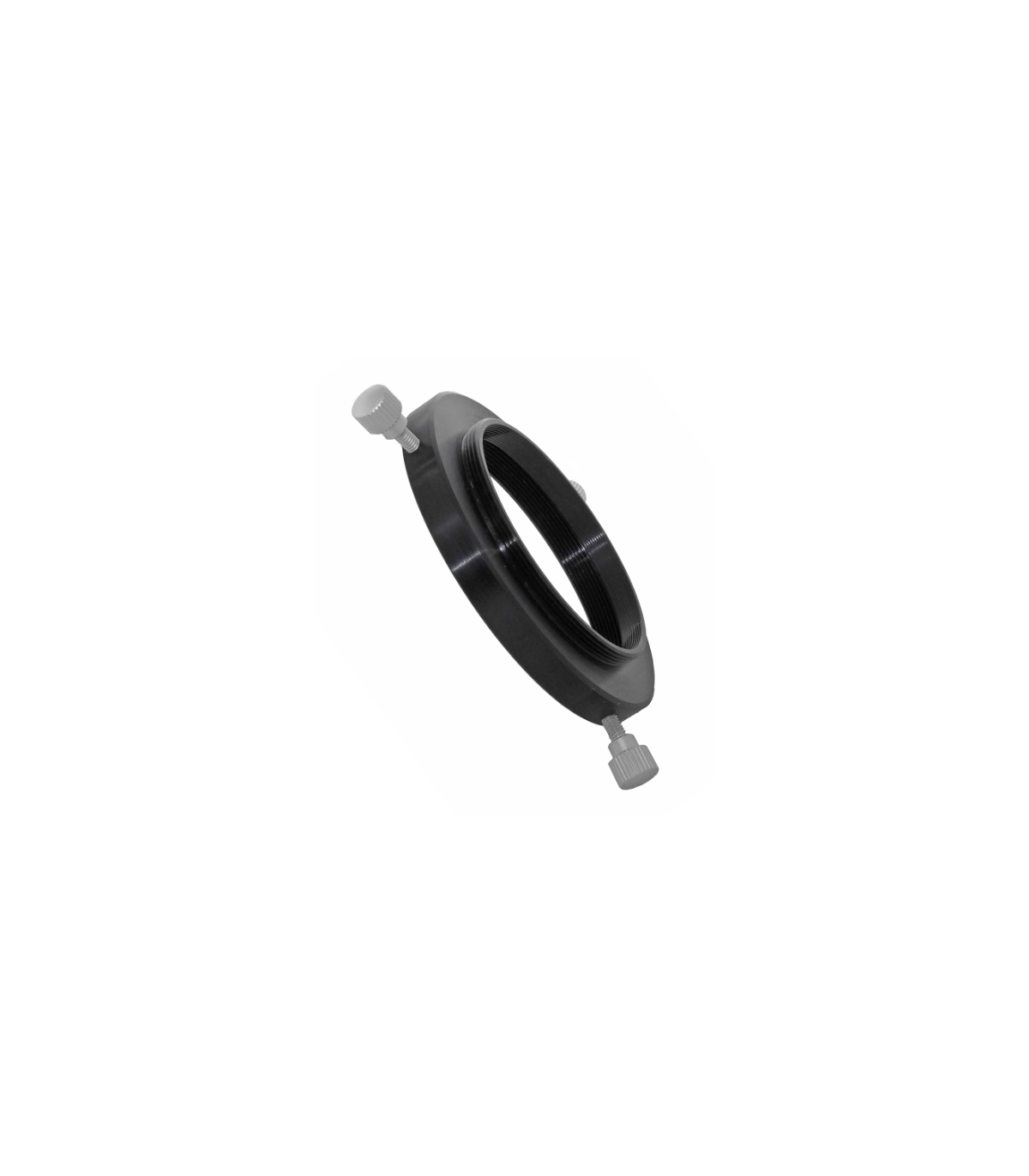

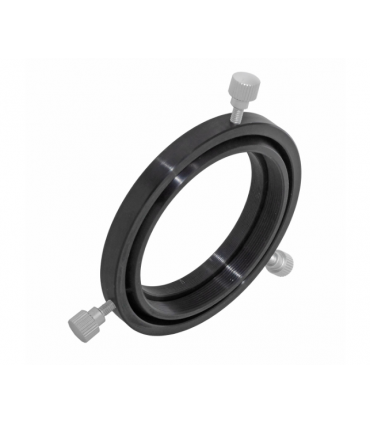

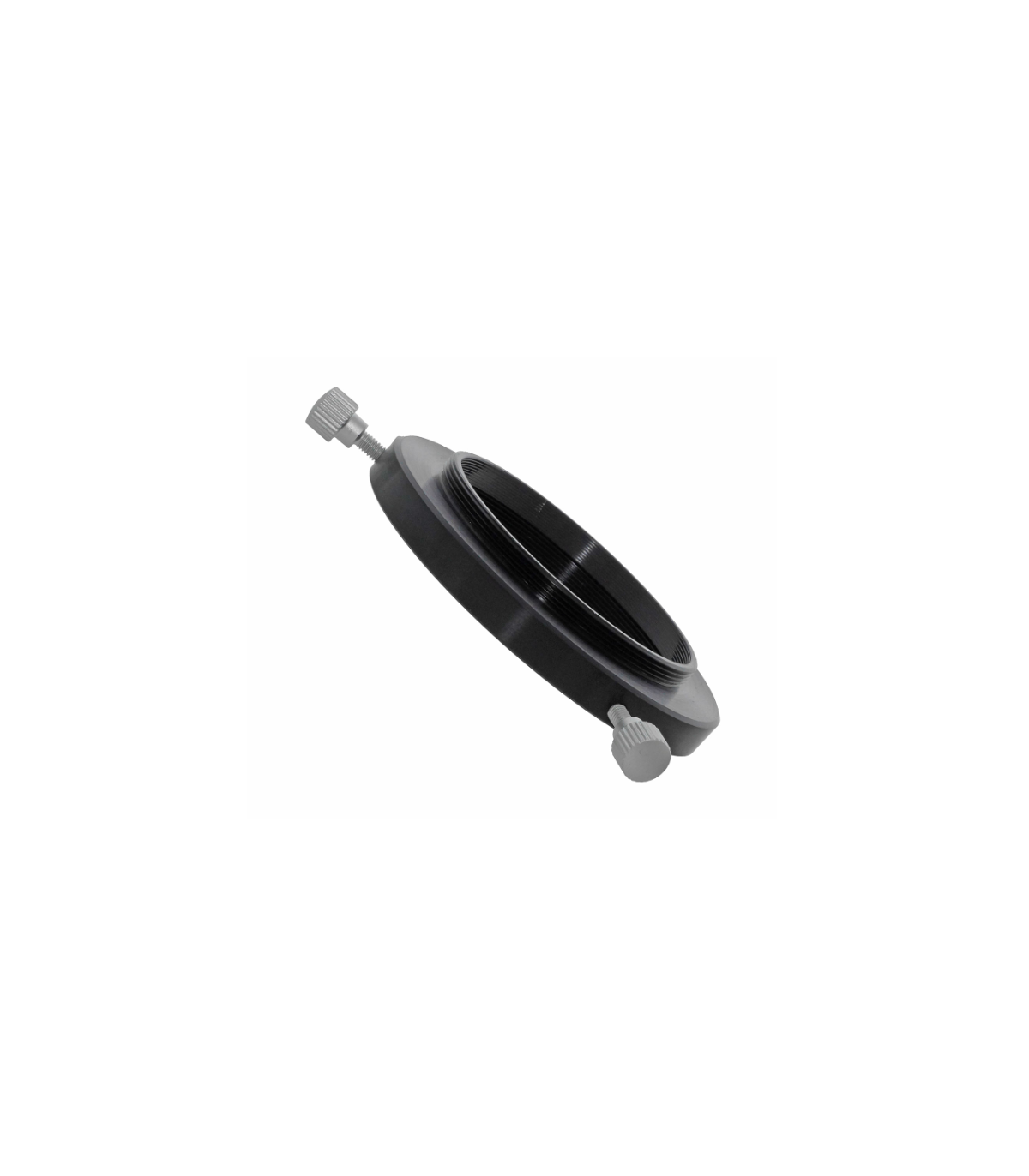

TS-Optics 360° rotation and quick coupling - M68x1 - short

TS-Optics M68 rotation and quick coupling with a total length of only 10.5 mm

This M68 adapter is a true Teleskop Service troubleshooter for all astrophotographers working with the professional-grade ZEISS M68x1 wire system. The adapter offers quick coupling and 360° rotation with the shortest overall length. The practical knurled screws also allow operation with gloves.

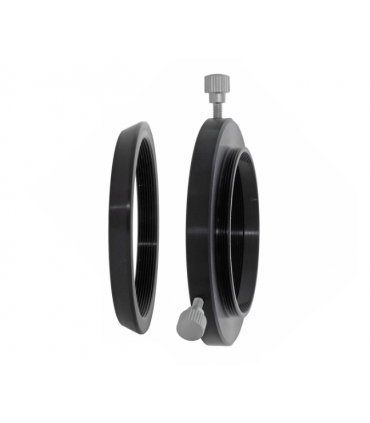

The rotation adapter consists of 2 parts. The inner conical adapter establishes the connection with the telescope. The outer adapter holds the connection adapter with three screws and establishes the connection to the camera.

The advantages of the TSM68ROT adapter:

♦ Only 10.5mm total optically effective length – ideal for short fittings

♦ Perfect centering - the inner adapter ring is always exactly in the middle - it is tightened by itself thanks to the clamp.

♦ Thanks to the large wall thicknesses and long threads, even heavy fittings can be securely mounted.

The application areas of the TSM68ROT adapter:

♦ Quick coupling: ... You can remove the camera in seconds, for example to remove dust from the sensor. Unscrewing is avoided, cables cannot get tangled.

♦ 360° Rotation: ... You can rotate the camera 360° to achieve optimal positioning of the target object on the camera sensor.

♦ Improved guide star search with off-axis guide: ... If you screw the TSROTM68 in front of the off-axis guide, you can rotate the guide and thus have a larger field available to find a bright guide star.

What´s included in the bos:

♦ Helical Focuser with 2 locking screws
