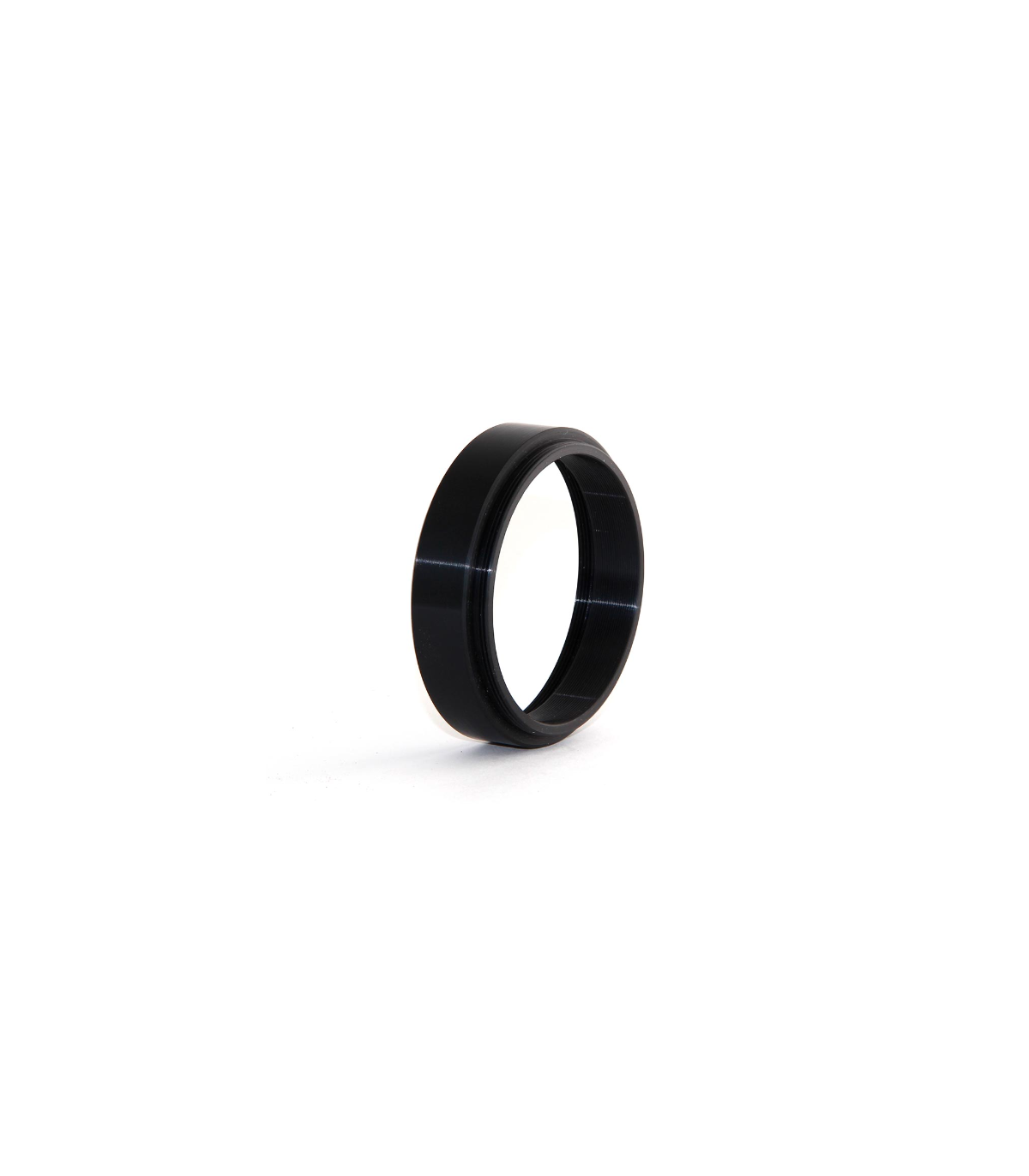

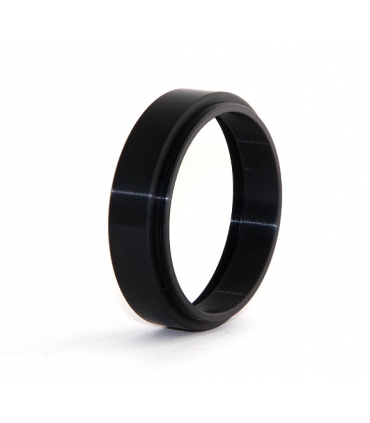

TS-Optics 15mm extension with M63x1 thread (inside/outside)
Extension sleeve extends an adapter with M63x1 connection by 15mm
♦ Telescopic side thread: Internal thread M63x1, length 14 mm
♦ Camera side thread: External thread M63x1, length 5 mm
♦ Optically effective total length: 15mm (external thread is not included)
€48.00
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSVM6315
TS extension sleeve for thread M63x1
Many focusers offer the internal thread M63x1 as an auxiliary thread. This thread allows, for example, to screw correctors to the focuser. This sleeve extends the distance and thus allows an optimization of the adjustment position of the focuser.
Some offsets also have the M63x1 thread as an intermediate thread. With the extension sleeves, you can optimize the working distance and thus adjust the corrector even better to your camera and photo accessories.
| Optically effective overall length: | 15 mm (the M63x1 male thread is not included) |
| Length of the M63 male thread: | 5 mm |
| Free aperture of the adapter: | 59 mm |
What´s included in the bos:
Ts-Optics Adapter
