TS-Optics adaptation of the Vixen VMC & ED Reducer to M48 connection thread
This adapter allows the use of the short off-axis guide TSOAG9 on the original reducer for Vixen VMC and ED.
♦ Adapted via M48 thread, thus full illumination
♦ Possibility of 360° rotation in the connector of the corrector
♦ Nylon screws allow a firm hold without scratches
€35.90
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSViRed-M48
TS-Optics adaptation to Vixen VMC & ED M48 - for TS OAG9
Do you have a Vixen ED (ED81S/ED102S/ED115S) or the Vixen VMC 200L or 260L and are you using the original Vixen Reducer?

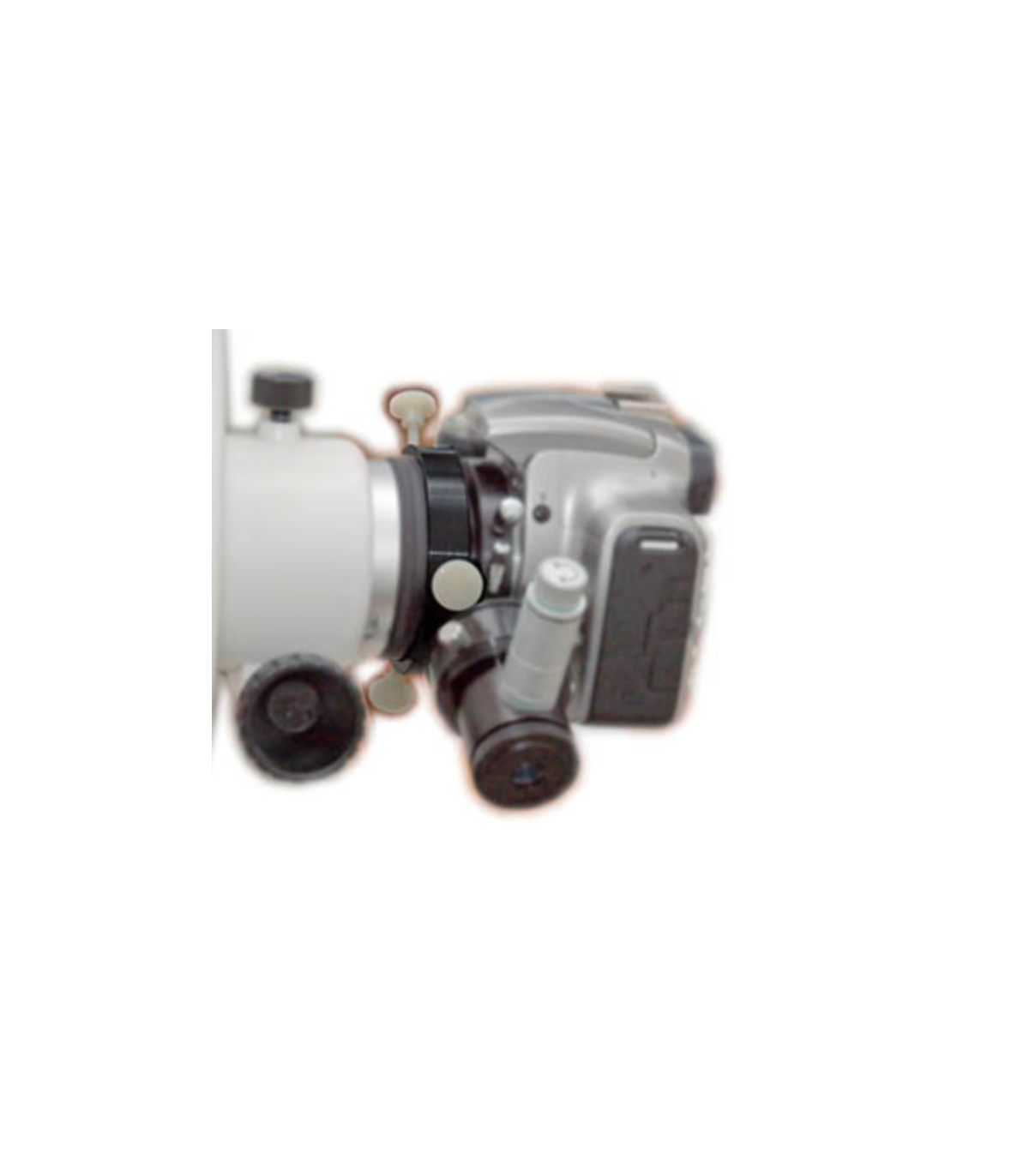

This adapter allows direct and short connection of our 9mm off-axis guide to the corrector. You can use it to connect your camera and TS off-axis guider to the reducer while maintaining the required distances.
The TS off-axis guider can take over the function of a T2 ring, either directly or via one of the SKM48 adapters, so you can even use digital SLR cameras, eg Canon EOS cameras.
Another advantage: it has full lighting because the adaptation does not go through T2, but through M48. The adapter fits over the Vixen Reducer/Flattener and is secured with three thumb screws (plastic). This also gives you the 360° rotation needed to find the guide star.
| Corrector-side connection: | Inner sleeve with three clamping screws |
| Camera-side connection: | M48 external thread |
| Rotation possibility: | 360° through the internal sleeve |
| Application: | Connection of the TS 9 mm OAG to the original Vixen Reducer |
What goes in the box:
♦ TS Optics Adapter
