TS-Optics adapter from M82x1 to M48 thread - for 3" Steeltrack and Riccardi Reducer
This adapter allows you to connect accessories with the M48 filter thread to the Baader 3" Steeltrack and Orion 3" ACU focusers.
♦ Telescope side connection: external thread M82x1
♦ Camera side connection: M48x0.75 external thread (2" filter thread)
♦ Short - 5.5mm without the two external threads
♦ free passage: 41 mm
€165.60
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
ORM82-M48

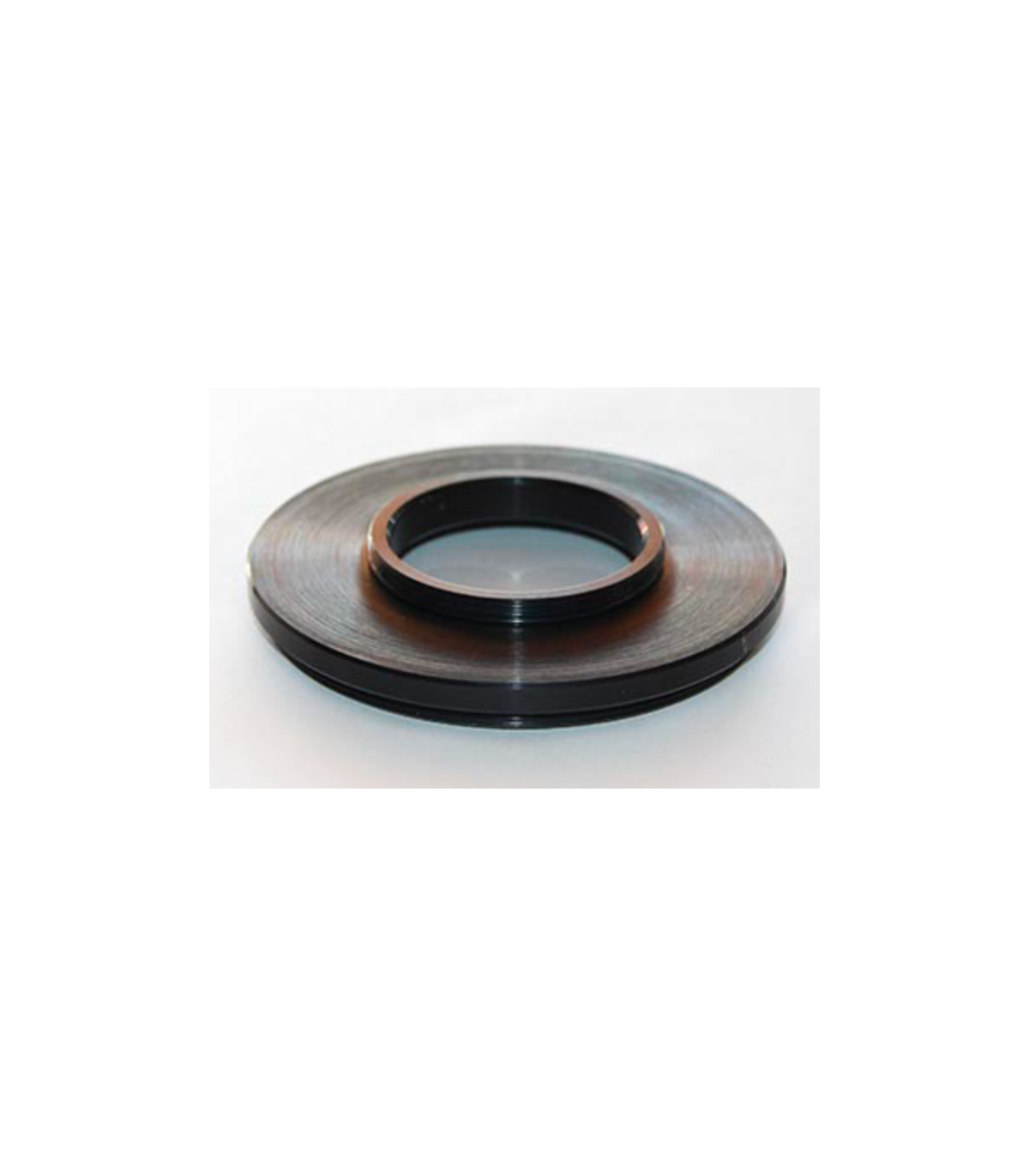

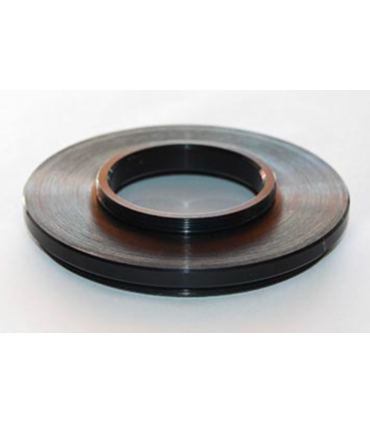

TS Optics adapter from M82 to M48x0.75 - 2" filter thread
The short adapter offers a clean thread adaptation for other connections, for example a screw-in camera adaptation. We recommend the adapter for cameras with a sensor diameter of up to 32mm.
usage examples

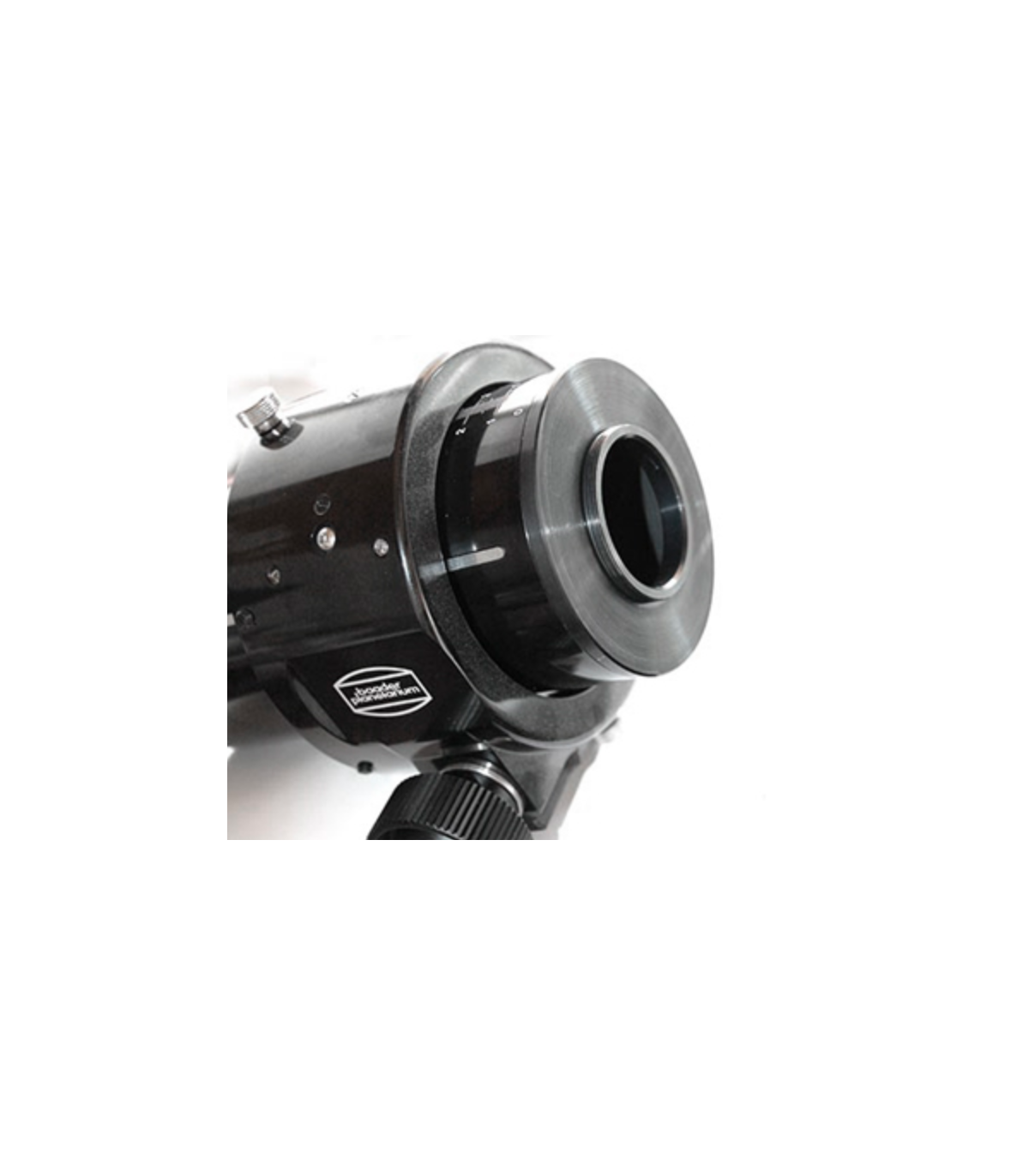

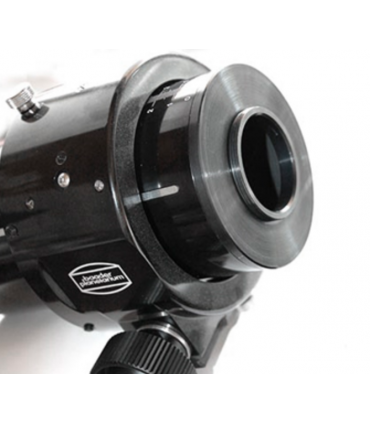

♦ Short M48 adapter for Baader 3" Steeltrack and Orion 3" ACU focuser
♦ Short M48 adapter for the large Riccardi 0.75x reducer
| Telescope side thread: | M82x1 male, 4.1 mm long |
| Camera side thread: | M48x0.75 male (2" filter thread), 3.9 mm long |
| Optical path without the two male threads: | 5.5 mm |
| Clear aperture: | 41 mm |
What goes in the box:
♦ TS Optics Adapter
