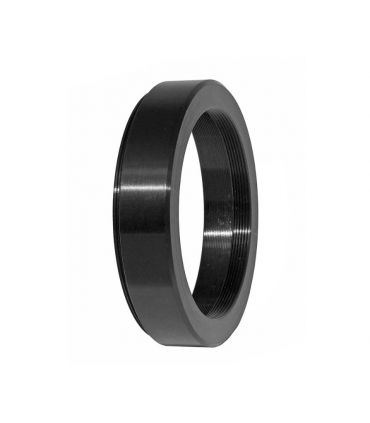

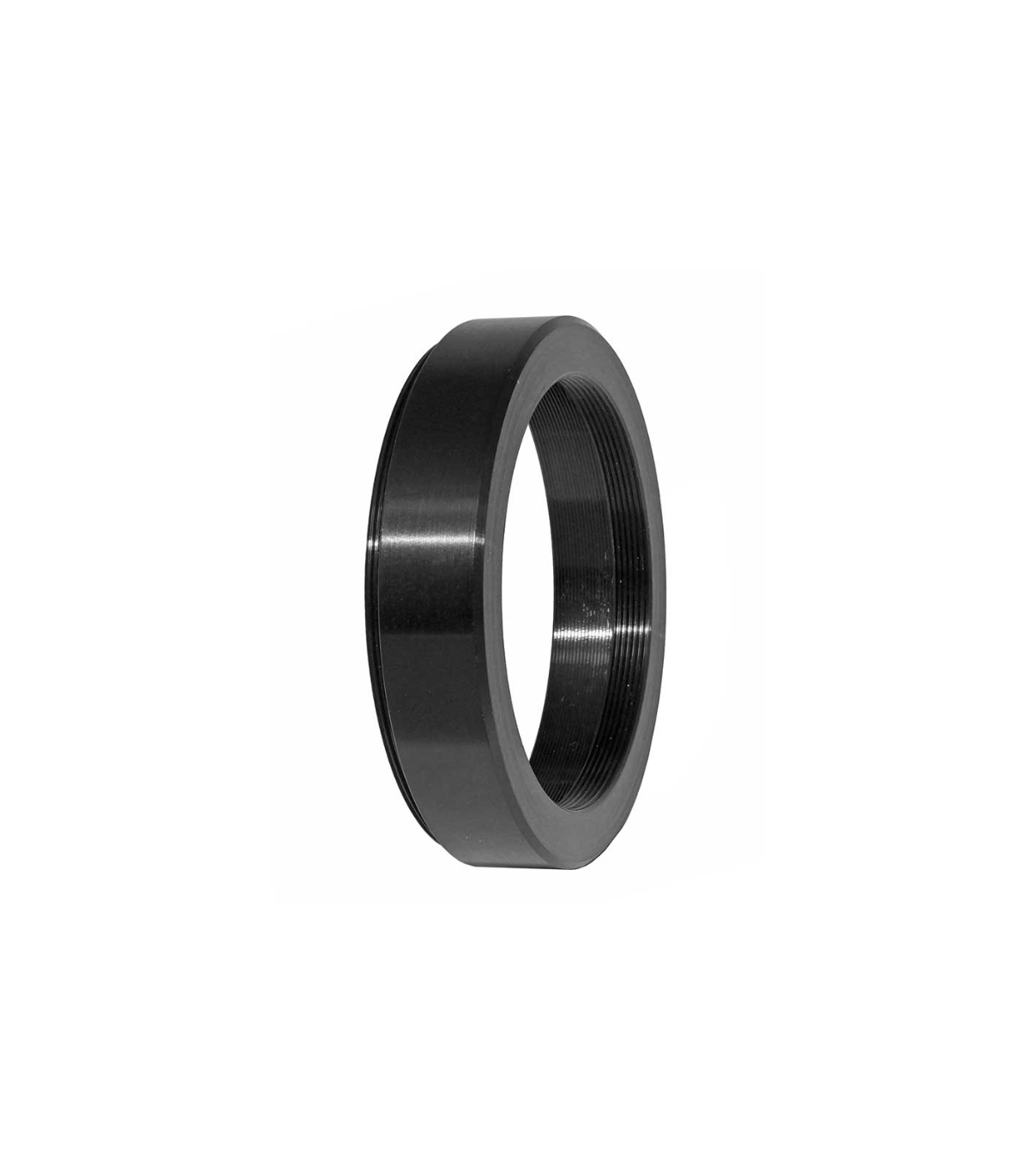

TS-Optics reducer adapter from M82x1 to M68x1
The adapter allows you to connect accessories with external thread of ZEISS level M68x1 to focusers with internal thread M82x1.
♦ Telescope side connection: External thread M82x1
♦ Camera side connection: Internal thread M68x1
♦ Optically effective total length: 16 mm
♦ The adapter fits, among other things, many focusers with internal thread M82x1 and also the Riccarci Reducer with M82 connection
♦ The adapter allows, among other things, the connection of correctors such as TSFLAT2.5 Flattener or TSRED379 Photoline Reducer to telescopes
€213.60
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSM82A-M68I
TS-Optics ZEISS level thread M68x1 Connection adapter for focusers with internal thread M82x1
The adapter fits all focusers and correctors with the thread connection M82x1 (internal thread). It is possible to adapt connecting pieces with a ZEISS level thread M68x1, such as TS-Optics 2.5" Flattener or 3" 0.79 Reducer TSRED379. You can also use this adapter to connect the full range of M68 adapters from TS and Baader.
In addition, the adapter offers the M68 transition for the large Riccardi Reducer. Therefore, the external thread M82x1 is kept extra short so that the adapter fits perfectly on the reducer.
| Telescope side connection: | M82x1 thread (male) |
| Camera side connection: | M68x1 thread (female) |
| Optical path: | 16 mm without male thread |
| Length of the male M82x1 thread: | 3 mm |
What goes in the box:
♦ TS Optics Adapter
