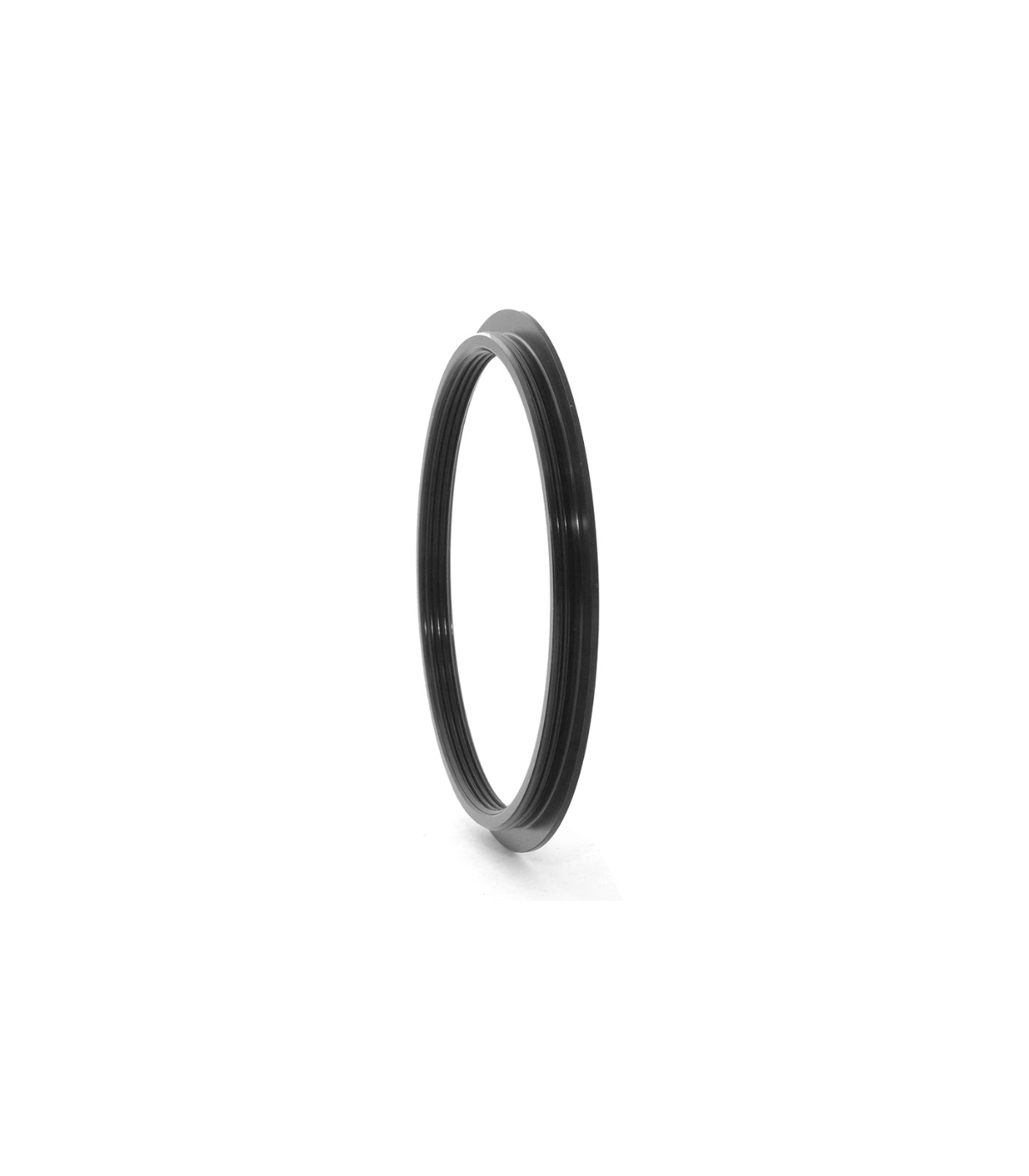

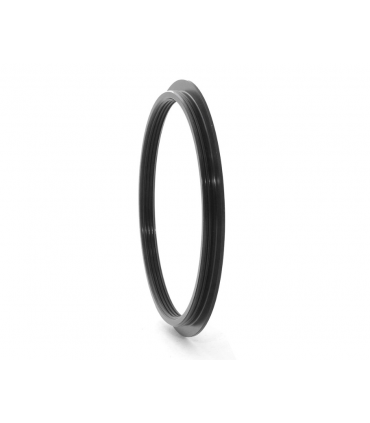

TS-Optics adapter with male thread M74x1 and female thread M68x1
The adapter allows the connection of correctors with an M68x1 thread on the telescope side to focusers with an internal M74x1 thread.
♦ Telescopic side connection thread: External thread M74x1 (male)
♦ Connection thread on camera side: Internal thread M68x1 (female)
♦ Optically effective total length: only 2 mm
♦ The adapter reduces an internal thread M74x1 to a Zeiss level internal thread M68x1
€215.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
M74a-M68i
Adapter system TS M68 - Connection adapter for accessories with male thread M68 on focusers with female thread M74x1
With this adapter you can, for example, connect many correctors, such as the 2.5" TS full-format flattener, to focusers with an internal thread M74x1. The short adapter only requires 2 mm optical path.
| Thread on telescope side: | M74x1 male thread, thread length 4 mm |
| Thread on camera side: | M68x1 female thread - thread length 6 mm (continuous thread) |
| Optically effective overall length: | only 2 mm |
| Material: | Aluminium black anodized |
What goes in the box:
♦ TS Optics Adapter
