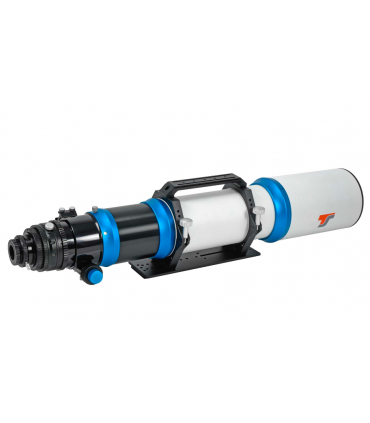

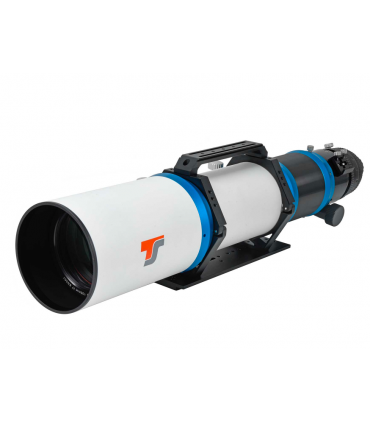

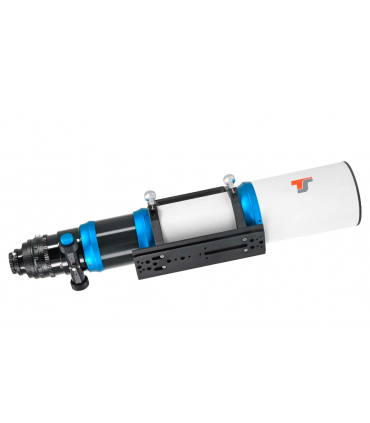

TS-Optics CF-APO 130mm f/7 FPL55 Triplet APO refractor with certificate
Apochromatic refractor with 130mm aperture and 910mm focal length offers the highest optical performance and first-class mechanics for astrophotography and amateur astronomy
♦ Opening 130mm
♦ Focal length 910mm / focal ratio f/7
♦ First class color correction with FPL55 triple lens
♦ Indoor screens
♦ High quality metal tube with CNC tube rings
♦ Retractable spray shield
♦ RAP 3.7" focuser - ball bearing with connection thread M92x1 and M82x1 and M63x1 for correctors
♦ 140mm working distance can be extended to 240mm by unscrewing the extension between tube and focuser (internal and external thread M124x1)

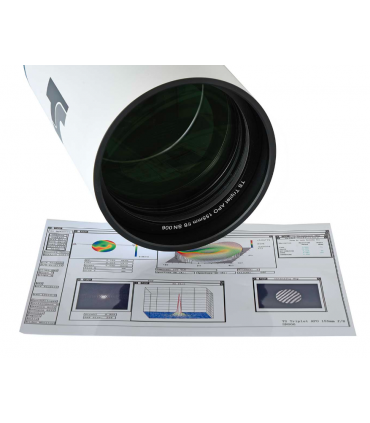

♦ Each TS-Optics CF-APO is supplied with a test certificate and serial number
♦ Heavy-duty carrying case, carrying handle and dovetail bar included
♦ 0.8x corrector for astrophotography available - extra calculated for this telescope
TS CF-APO 130/910 mm FPL55 triplet apochromatic
The colorless 130mm Apo is equally well suited for visual observing and astrophotography. Thanks to the FPL55 APO element, the image is first class and, in practice, can no longer be distinguished from the world famous Russian LZOS lenses.
The Apo remains portable at around 11kg and can be carried either with EQ6 class or Losmandy G-11 class mounts.
The 130mm Apos lens:
The triple lens with 130mm aperture and 910mm focal length meets the criteria of a full apos. Even when enlarged by a factor of 450, the image is free from annoying color errors. Even bright stars show up in astrophotos without disturbing blue fringes.
The APO element consists of FPL55, which is comparable to the known FPL53. Another special glass supports color correction. The air-gapped triple lens is fully adjustable. Each glass-air optical surface is multi-coated. The lens has an adjustable mount with temperature compensation.

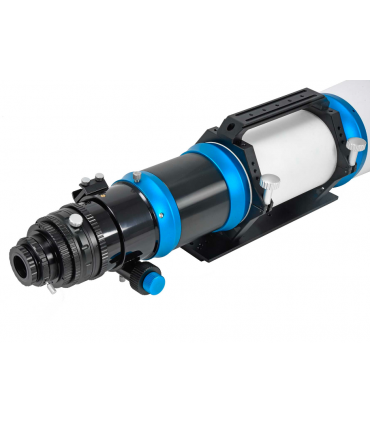

The 3.7" rack and pinion photographic focuser:
The large drawer is optimized for photography and can support a load of up to 8 kg. The extension tube adjusts via a rack and pinion. We also offer motorized focus for extension. Various internal threads are available for bolt-on adaptations. The extract also offers a 360° rotation to choose the correct image section.
Variable working distance for all application areas
The generous 140mm working distance from the 2" receptacle is suitable for almost all application areas. The distance can even be extended to 240mm using a removable segment between the focuser and the tube. This means that, for example , binocular accessories can be used without additional travel compensation.
Astrophotography with the apo

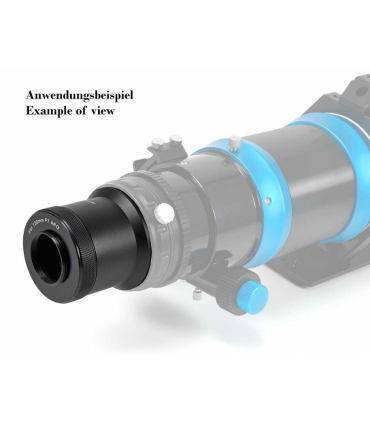

A corrector is required to achieve an optimal image in the field. The corrector is screwed directly into the M92 thread of the apos. We recommend two correctors, both of which are suitable for cameras up to full frame.
♦ TSCFRED130 - Corrector 0.8x
The corrector is calculated extra for this APO. It reduces the focal length to 728mm and improves the aperture ratio to f/5.6.
♦ TSFLAT3 - Checker 1.0x
The concealer provides maximum illumination. Does not change the focal length and aperture ratio.
Especificaciones:
| Aperture: | 130 mm |
| Focal length: | 910 mm |
| Focal ratio: | f/7 |
| Objective: | Multicoated APO triplet objective with two special glasses |
| Tube: | CNC metal tube |
| Focuser: | 3.7" RPA dual-speed rack and pinion focuser with ball bearings |
| Eyepiece side connections: | M92x1, M82x1 and M63x1 female threads, and 2" 1.25" connection |
| Dew shield: | Extendable |
| Length with dew shield retracted: | 85 cm |
| Length with dew shield extended: | 95 cm |
| Weight: | 11 kg |
