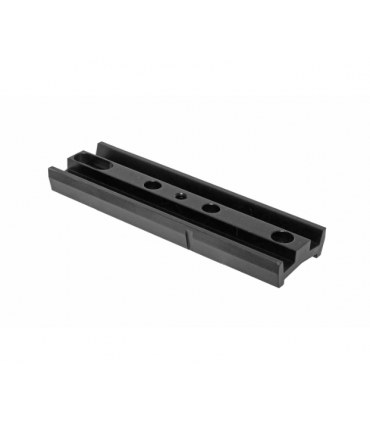

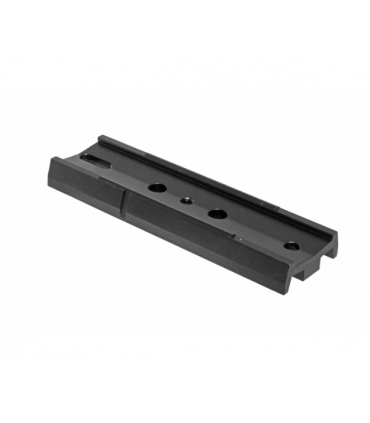

TS-Optics dovetail bar Vixen-EQ5 Level with slot and photo thread - L- 137 mm

The PSV7 is a flexible photo-threaded slotted dovetail rod for compact spotting scopes and spotting scopes.

♦ Suitable for the adaptation of compact telescopes, but also for spotting scopes and photographic lenses on mounts with quick coupling EQ5 / Vixen Level.

♦ Allows you to connect telescopes to photo tripods via the 1/4" tripod thread in the middle

♦ Slot on one side and hole on the other side accept 1/4" and M6 Allen screws.

♦ The length of the dovetail bar is 137mm

♦ Distance between mounting holes 107 - 120 mm

Entrega entre 7 y 9 días laborables

TS-Optics EQ5 / Vixen Level Dovetail Rod with Photo Thread Connection

The dovetail bar allows the adaptation of compact telescopes, camera lenses or spotting scopes to astronomical mounts with quick couplings and also to photographic tripods.

The slot on one side of the rail allows the pipe clamps to be spaced between 107mm and 120mm. The two holes are designed for 1/4" and M6 Allen screws. The countersink is 7.5mm deep.

The dovetail bar also fits photographic tripods and panoramic heads:

The rail has a 1/4" female photo thread right in the middle. This means the rail will fit on photo tripods and tilt heads. You can also use it to attach your telescope or spotting scope to a photo tripod. The example is heavy on the upper part. .


Style: Vixen GP EQ5 style
Length: 138 mm
Thickness: 14 mm
Design: Profile construction
Length of long bore: 19 mm
Female thread: 1/4" photo thread, female, in the middle
