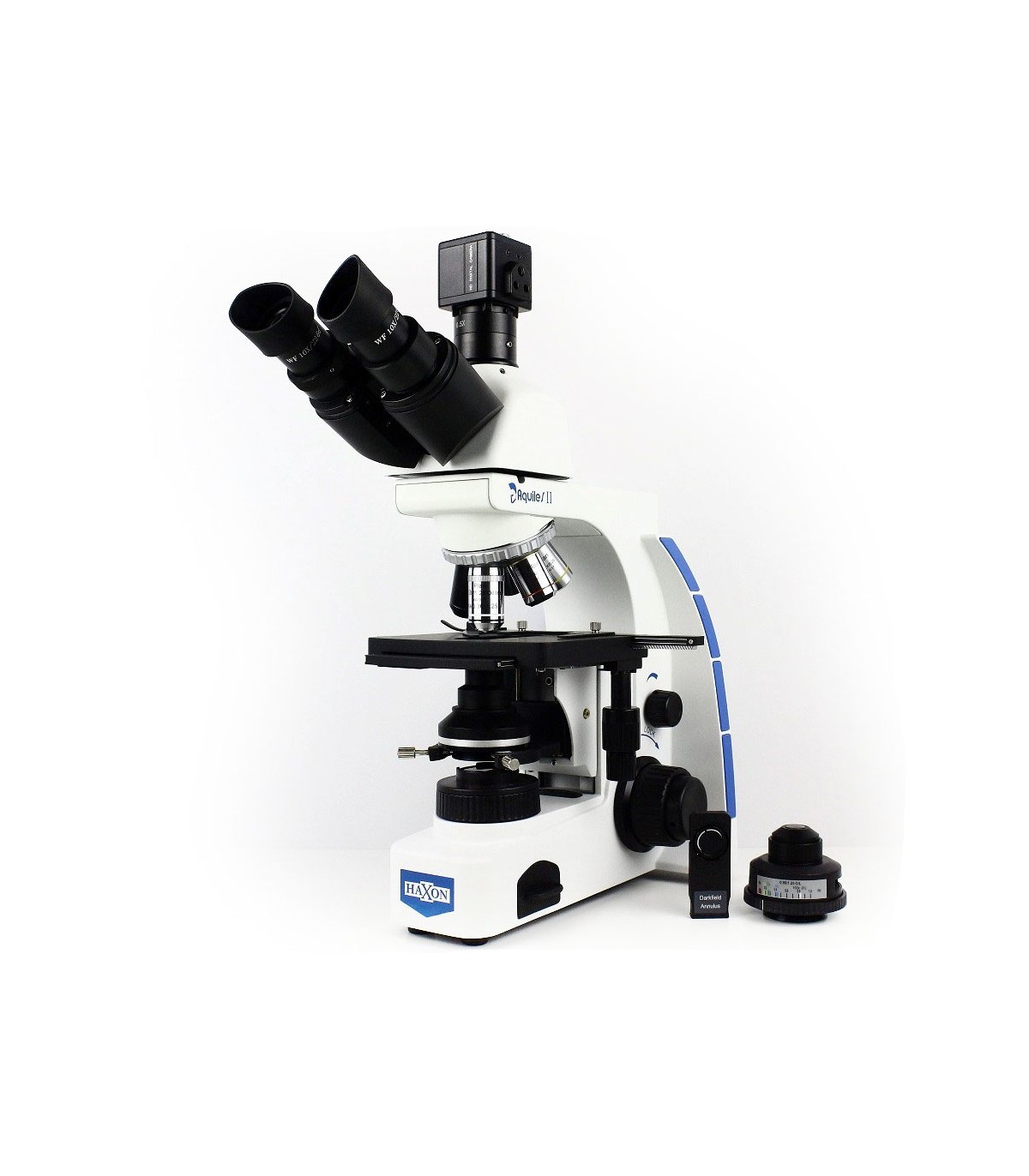

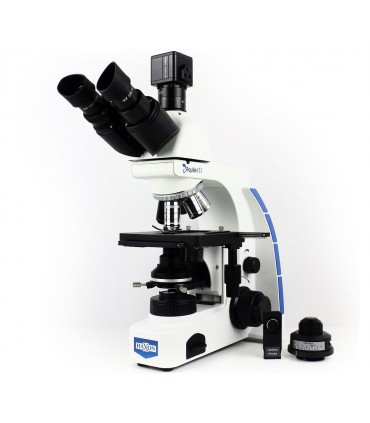

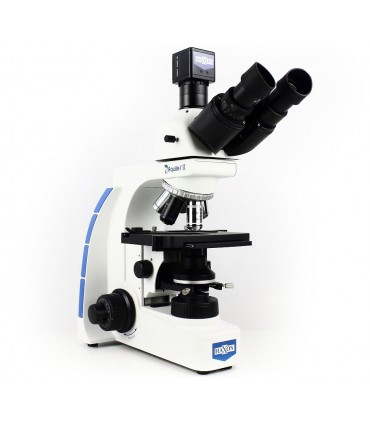

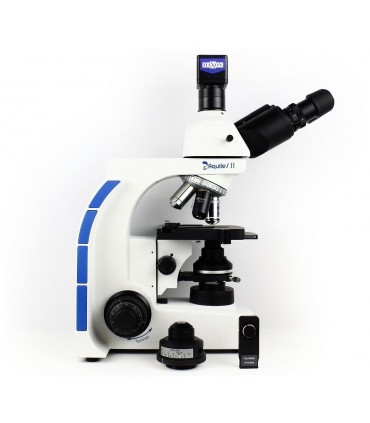

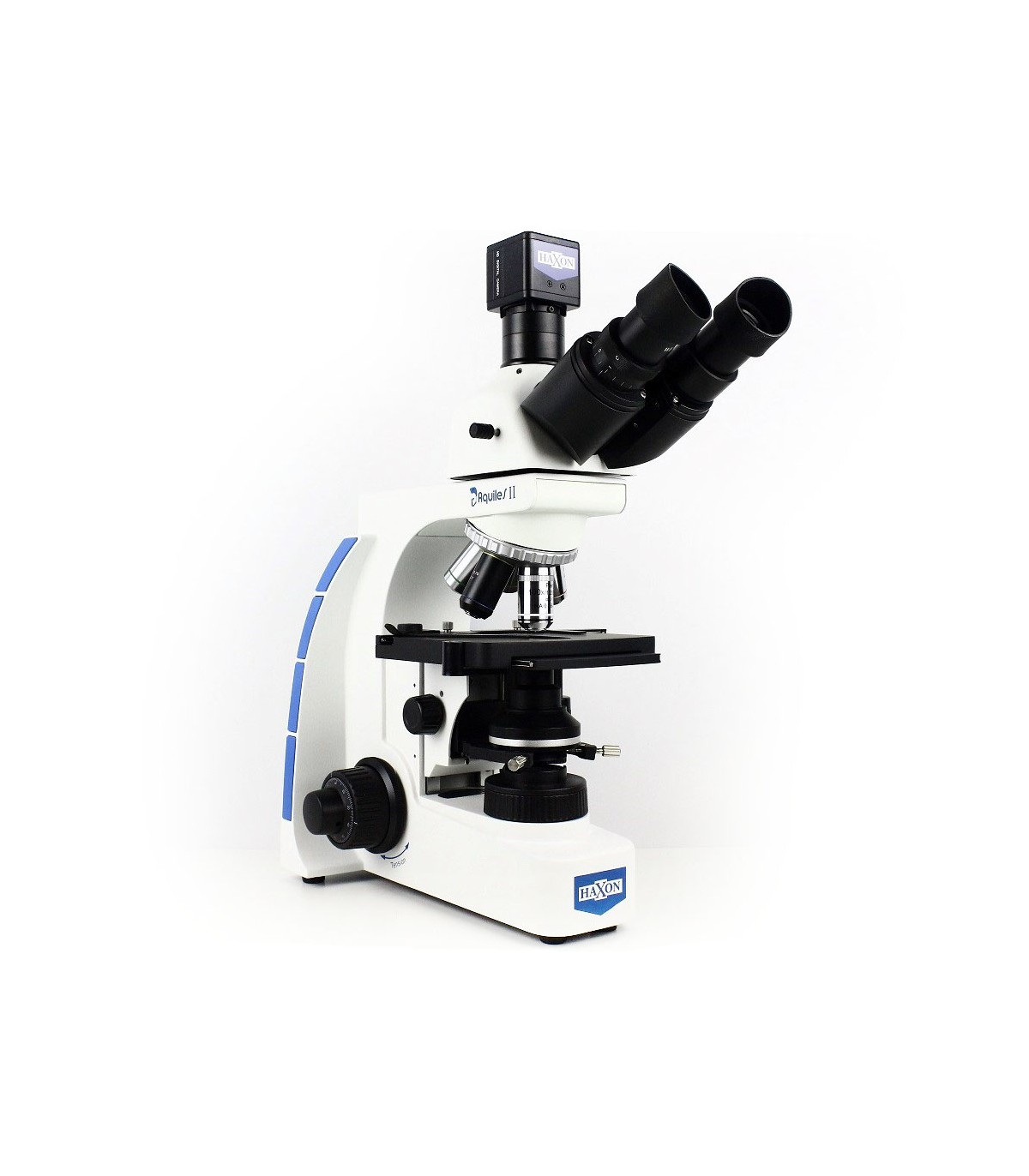

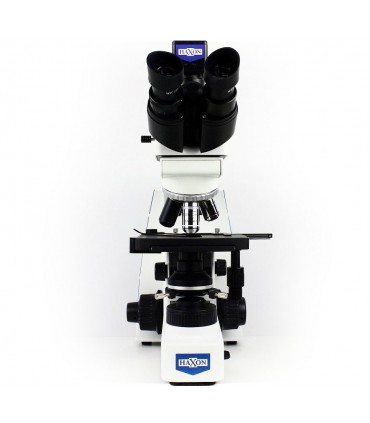

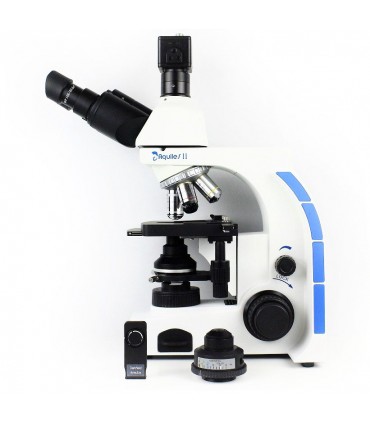

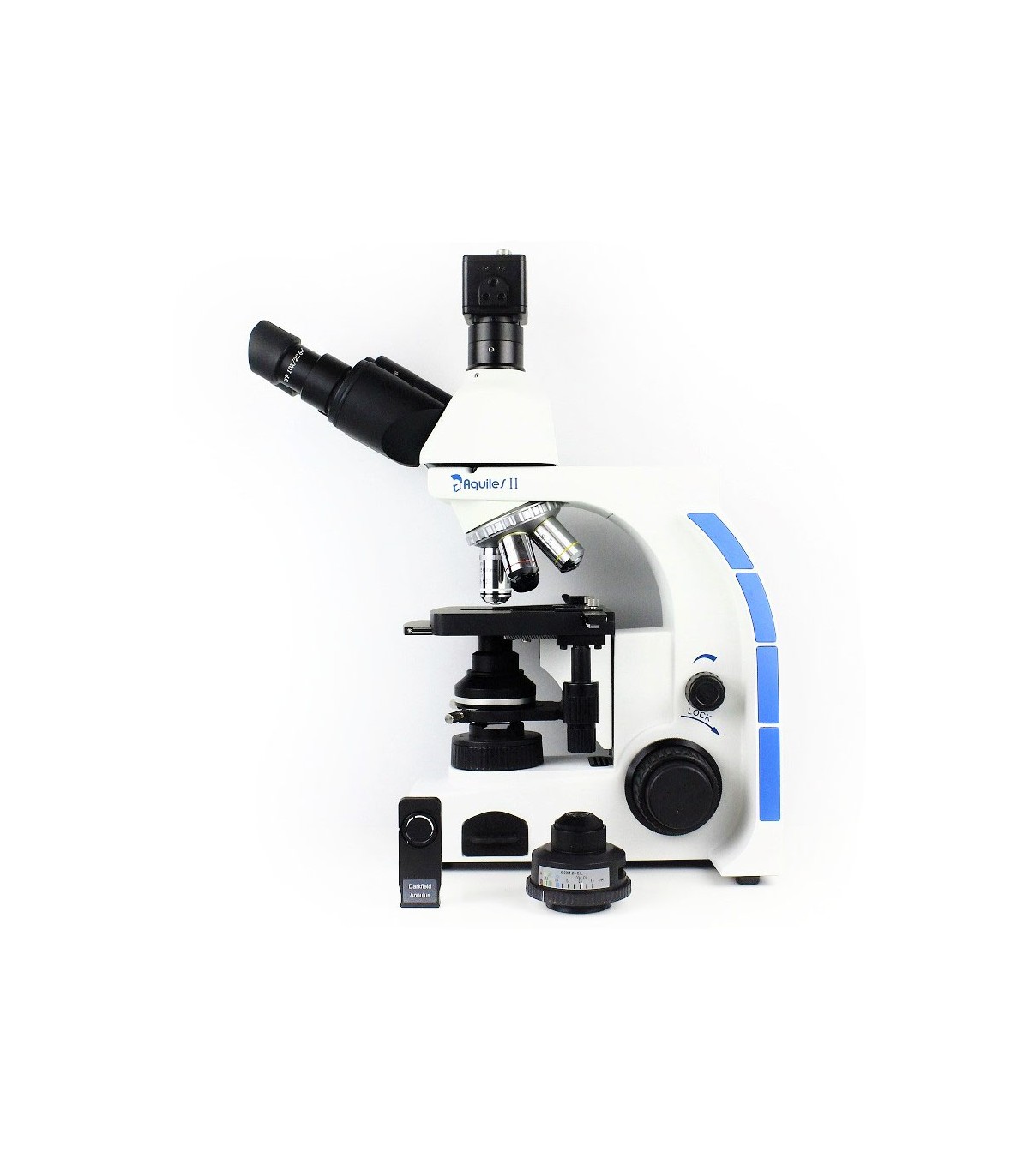

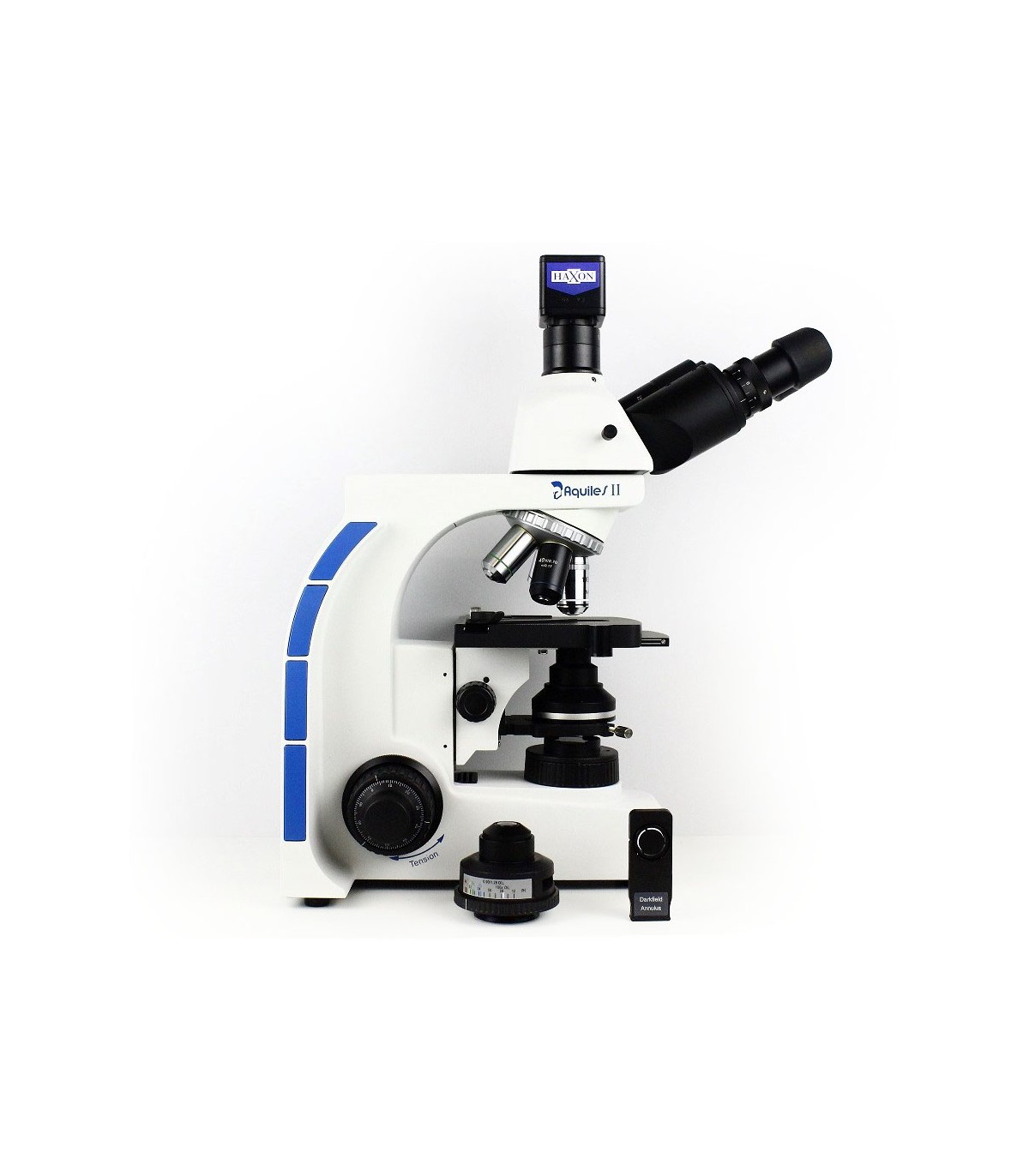

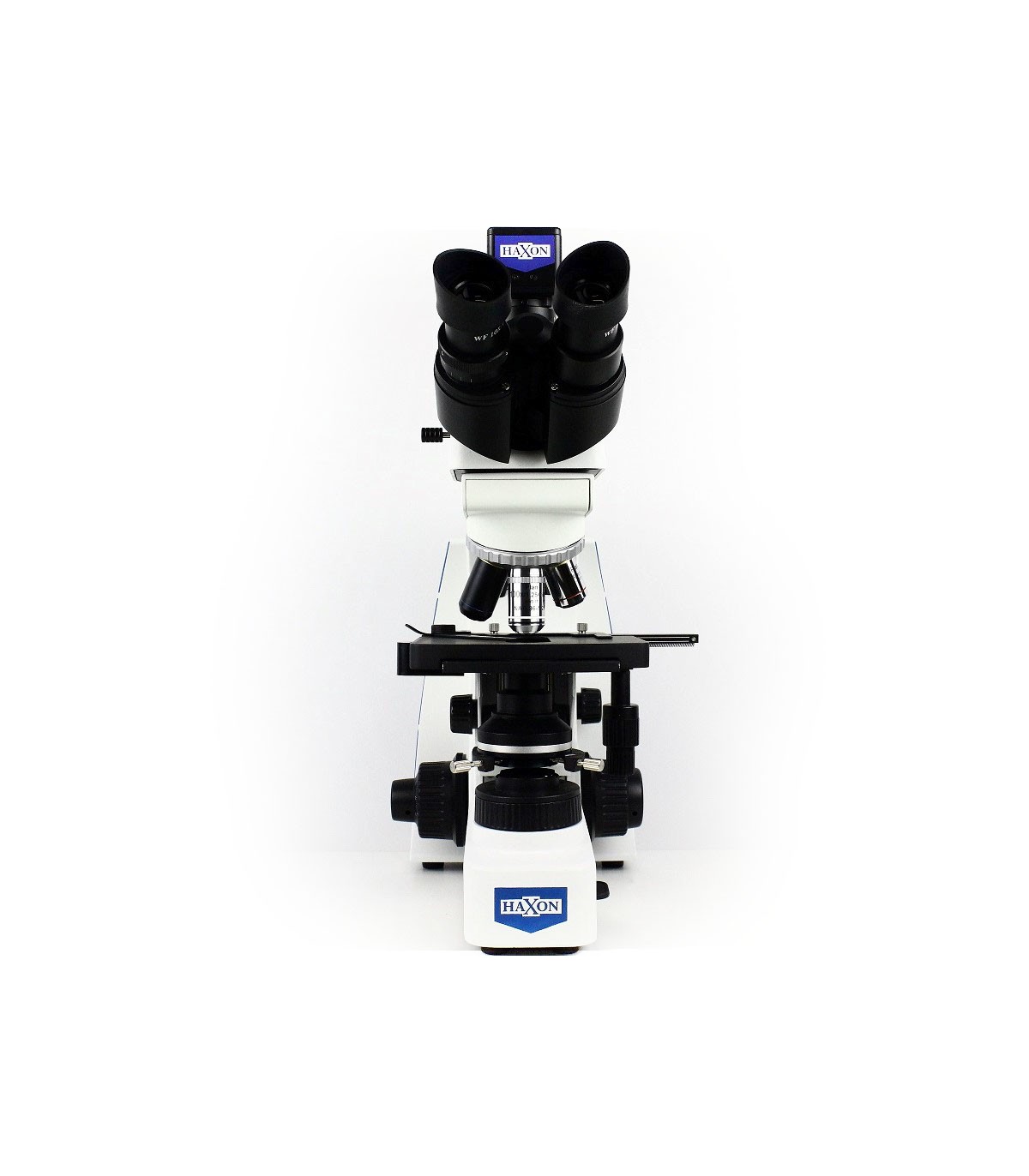

Microscope HAXON AQUILES II Configured for RIA HAYES course on the Study of Blood Plasma in Dark Field Microscopy

This Aquiles II model has been designed specifically for the courses that Ria Hayes offers on her website

It is configured for dry dark field and dry phase contrast.

With the new configuration of Lenses and accessories we have in a single device all the necessary power to be able to delve deeper into the examination of blood plasma in an easy, simple way and without complex immersion illumination methods that require a more advanced microscope handling experience.

Thanks to the image provided by the 40X ICS Numerical High Aperture Objective and the centering capacity of the new DARK FIELD Slide, it allows us to obtain, together with the 1x C-Mount adapter for the evolved Haxon Aptina V2 camera, reach 1000x magnification. through our computer screen. In addition, the new software allows us an extra digital zoom that will delight the most demanding. All this without the need for immersion.

For those elements of blood plasma such as fibrin and platelets that, due to the limitations of the numerical aperture of dry dark field illumination, we cannot observe in their entirety or with the necessary quality, the CONTRAST illumination method is included. POSITIVE PHASE with high aperture 40x PHP ICS objective with which no element will remain far from our reach.

A microscope designed to fully immerse yourself in the analysis of Blood Plasma, obtaining immediate results in an easy and simple way with a few hours of practice and without the need to use the more complex immersion systems in which oils, if you do not have experience In their handling, they end up disappointing and exasperating those who are new to the method.

Obviously we recommend, when sufficient experience has been acquired in the use of the equipment, to the most intrepid, that they acquire the immersion systems that will allow them, especially the DARK FIELD immersion Kit, to go deeper not in the analysis but in the study and Blood Plasma research.eo.

Below is a brief description of the parts of the device:

Multidirectional Siedentopf Type Trinocular Head with INFINITE Correction, It has Interpupillary and Diopter Regulation.

Head Light Distribution Lever 0/100 and 100/0, that is, 100% of the Light to the Eyepieces for Viewing or 100% of the Light to the Camera.

Ideal for Photography since by Sending 100% of the Light to the sensor, Prisms and Optical Elements that Degrade the Image are Eliminated.

1x Adapter For Camera with Standard C-Mount Thread Interface.

HAXON Aptina USB2.0 Camera with High Performance 5 Megapixel 2K MT9P001 Sensor with Complete Parameter Configuration Menu, Compatible with All Versions of WINDOWS, Software Included and Downloadable from Our Website.

10X/20mm Flat-Corrected Metallic Wide Field and High Eye Relief Eyepieces, with 30mm frame.

Quintuple Revolver without Bearings and with Precise Positioning Marking.

4x IPCS (Infinity PLAN Correction System) RMS and DIN45 Infinity Plan Achromatic Objective

High Numerical Aperture and High Contrast ICS (Infinity Correction System) RMS and DIN45 10x and 40x Objectives Special for DARK FIELD.

High Numerical Aperture and High Contrast PHP Objective ICS (Infinity Correction System) RMS and DIN45 of 40x Special for POSITIVE PHASE CONTRAST

PHASE CONTRAST slide with centering system for 40x objective

DARK FIELD and EXTREME OBLIQUE slide with centering system for 4x, 10x and 40x objectives.

Lens Centering PHASE CONTRAST rings

Large Stage with Object Holder Clamp and Mechanical Coaxial Axis with Vernier Scales.

Abbe capacitor 1.25 n.a. Adjustable in Height Using a Zipper System, It Has a Diaphragm and Slide Slot (Compatible with Darkfield and Phase Contrast Slides)

Macro Focus System with Voltage Regulation and Height Stop to avoid collisions with the Objectives.

Micro Focusing System Using Crowns and Pinions with Infinite rotation and a precision of 2 microns per Division Reaching the Maximum Standardized for Laboratory.

Kohler Illuminator with Diaphragm and Rubbed Glass Lenses with Adjustable Centering System.

5W High Power LED Lighting with Intensity Regulation and Safety Switch. Robust Stand of more than 10 Kilos, Heavy and Reliable.

Modern and Current Design. Special Microscope for DARK Field and dry PHASE CONTRAST.

Microscope Designed For Advanced Configurations By Adding Modules.

Ideal for General Histology, Blood Plasma.
